1600315 - Simplicity PTO for Tractor Power Take Off Group (1377I01) Parts Diagram

PTO for Tractor

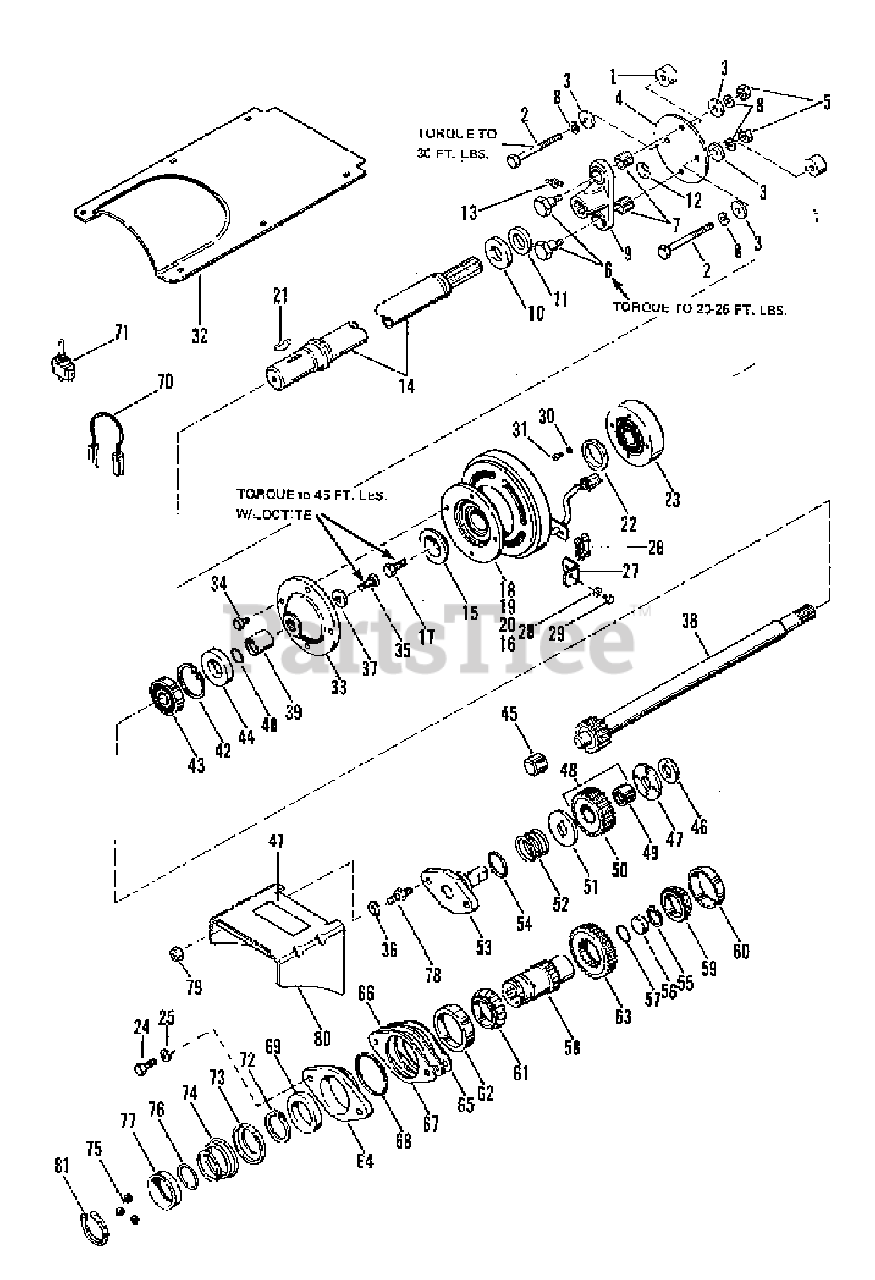

Power Take Off Group (1377I01) Parts Diagram

  • Title

1

Simplicity 172539

SPACER

$

$

Not available

2

Simplicity 2823938

CAPSCREW, Hex, 3/8"-16 x 3-1/2"

$

$

Not available

3

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

4

Simplicity 2175230SM

COUPLING

$73.99

$

Usually ships in 2-12 days

0

5

Simplicity 2817421

NUT, Hex, Jam, 3/8"-16

$

$

Not available

6

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

7

Simplicity 2177943SM

BUSHING

$18.99

$

In Stock, only 2 left!

0

8

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

9

Simplicity 1653039

YOKE

$

$

Not available

10

Simplicity 172266

WASHER

$

$

Not available

11

Simplicity 177141

WASHER, Felt

$

$

Not available

12

Simplicity 177134

PLUG

$

$

Not available

13

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1665280SM

SHAFT ASSEMBLY

$

$

Not available

15

Simplicity 173395

COLLAR

$

$

Not available

16

Simplicity 2177960SM

BEARING

$

$

Not available

17

Simplicity 2828727

CAPSCREW, Hex, Whiz Lock, 3/8"-16 x 1-1/4" LG

$

$

Not available

18

Simplicity 1685126SM

CLUTCH, Electric

$901.99

$

Usually ships in 2-12 days

0

19

Simplicity 1652356SM

FIELD ASSEMBLY

$302.99

$

Usually ships in 2-12 days

0

20

Simplicity 2173480

ROTOR ARMATURE ASSEMBLY

$

$

Not available

21

Simplicity 176650

KEY

$

$

Not available

22

Simplicity 176048

WASHER

$

$

Not available

23

Simplicity 1650720

BEARING, Assembled

$

$

Not available

24

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

26

Simplicity 2171101

LINK, Connector

$

$

Not available

27

Simplicity 174276

BRACKET ASSEMBLY

$

$

Not available

28

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 2816019

CAPSCREW, Hex, 1/4"-20 x 3/4" Lg

$

$

Not available

30

Simplicity 1909055SM

LOCKWASHER, No. 10

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 2830613

SCREW, Socket Head, No. 10-32 x 1/2" Lg

$

$

Not available

32

Simplicity 1653042

COVER, Top

$

$

Not available

33

Simplicity 2172540SM

HUB

$

$

Not available

34

Simplicity 2827477

CAPSCREW, Hex, 5/16"-18 x 1" Lg

$

$

Not available

35

Simplicity 2828728

CAPSCREW, Hex, Whiz Lock, 3/8"-16 x 1" Lg

$

$

Not available

36

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

37

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

38

Simplicity 2176109SM

P.T.O. SHAFT ASSEMBLY

$421.99

$

Usually ships in 2-12 days

0

39

Simplicity 176110

SPACER

$

$

Not available

40

Simplicity 2176111SM

O" RING`

$4.49

$

In Stock, only 1 left!

0

41

Simplicity 173937

FILM, Safety
(Superseded to 709157)

$5.99

$

Usually ships in 2-12 days

0

42

Simplicity 173512

RING, Retaining

$

$

Not available

43

Simplicity 2118011SM

BEARING, Ball

$

$

Not available

44

Simplicity 2168006SM

SEAL, Brake

$

$

Not available

45

Simplicity 2171185SM

BEARING

$12.99

$

Usually ships in 2-12 days

0

46

Simplicity 173880

WASHER

$

$

Not available

47

Simplicity 173881

WASHER, Thrust

$

$

Not available

48

Simplicity 175150

GEAR ASSEMBLY

$

$

Not available

49

Simplicity 2171186SM

BEARING
(Superseded to 2172747SM)

$13.99

$

In Stock, only 1 left!

0

50

Simplicity 171125

GEAR

$

$

Not available

51

Simplicity 173882

WASHER, Thrust

$

$

Not available

52

Simplicity 174437

SPRING

$

$

Not available

53

Simplicity 1653037

CAP ASSEMBLY

$

$

Not available

54

Simplicity 171192

O" RING`

$

$

Not available

55

Simplicity 172128

RING, Retaining

$

$

Not available

56

Simplicity 173030

PLUG

$

$

Not available

57

Simplicity 173094

O" RING`

$

$

Not available

58

Simplicity 178667

SHAFT, Drive

$

$

Not available

59

Simplicity 173197

CONE, Bearing

$

$

Not available

60

Simplicity 173196

CUP, Bearing

$

$

Not available

61

Simplicity 2173195SM

CONE, Bearing

$43.99

$

Usually ships in 2-12 days

0

62

Simplicity 2173194SM

CUP, Bearing

$

$

Not available

63

Simplicity 171124

GEAR 36T

$

$

Not available

64

Simplicity 173175

CAP

$

$

Not available

65

Simplicity 173198

SHIM, .002

$

$

Not available

66

Simplicity 173199

SHIM, .010

$

$

Not available

67

Simplicity 173200

SHIM, .003

$

$

Not available

68

Simplicity 173166

O" RING`

$

$

Not available

69

Simplicity 2173184

SEAL

$

$

Not available

70

Simplicity 173132

WIRE, Jumper

$

$

Not available

71

Simplicity 2173016SM

SWITCH, Electric

$50.99

$

In Stock, only 3 left!

0

72

Simplicity 173210

RING, Retaining

$

$

Not available

73

Simplicity 175334

RETAINER

$

$

Not available

74

Simplicity 175324

SPRING

$

$

Not available

75

Simplicity 2176658

BALL

$

$

Not available

76

Simplicity 178657

RETAINER, Spring

$

$

Not available

77

Simplicity 2176656

COLLAR

$

$

Not available

78

Simplicity 171786

STUD

$

$

Not available

79

Simplicity 2816950SM

NUT, Full Hex, 3/8"-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

80

Simplicity 1653040

SHIELD

$

$

Not available

81

Simplicity 178481

RING, Retaining

$

$

Not available
