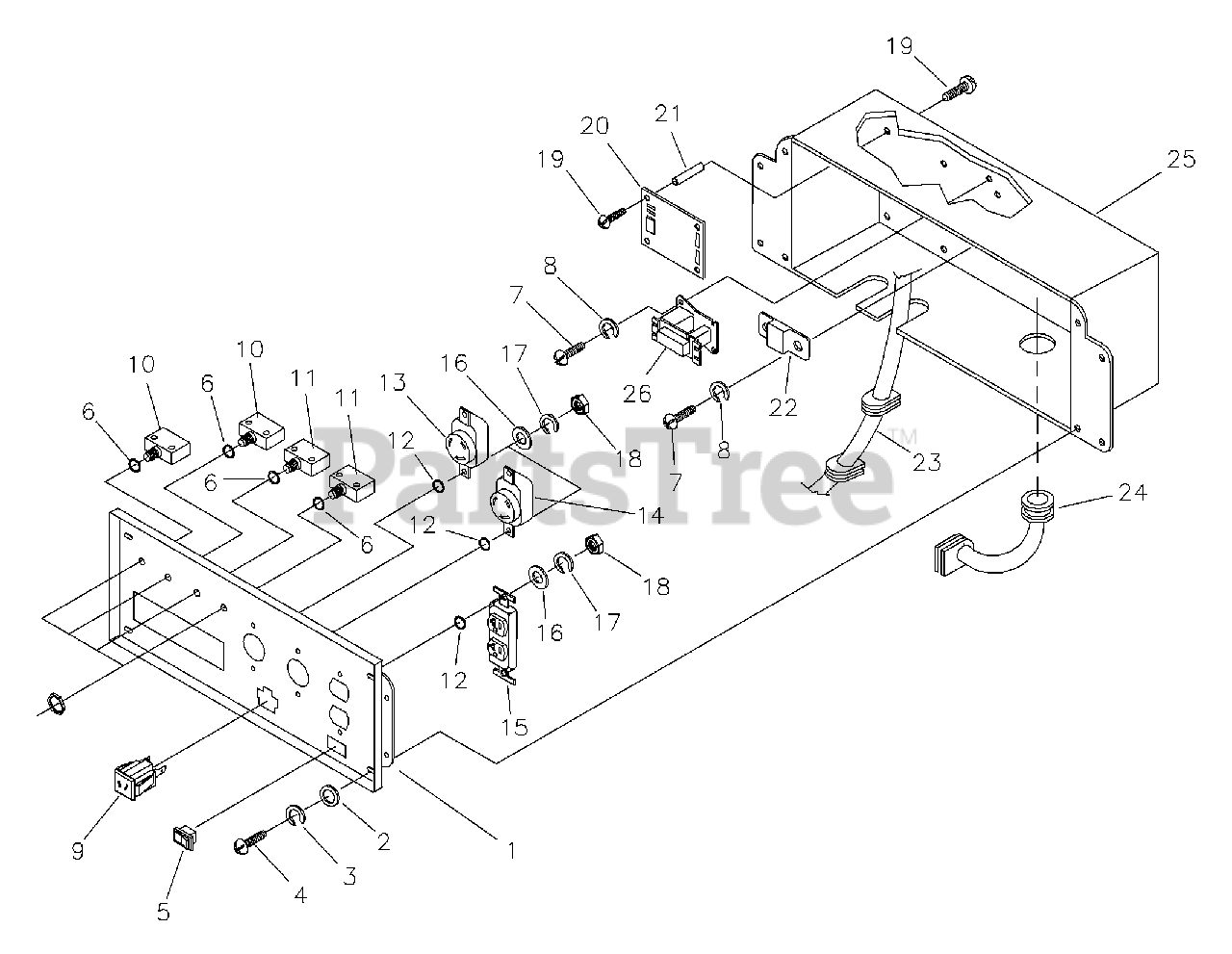

1657-0 - Generac EXL 7,000 Watt Portable Generator Control Panel Parts Diagram

EXL 7,000 Watt Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton A92070GS

PANEL, Control

$22.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897GS

FLAT WASHER, #10 M5

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226GS

LOCK WASHER, M5

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526GS

SCREW, M5-0.8 x 12mm

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 82538GS

SWITCH, Idle Control

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881GS

LOCK WASHER, 7/16"

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181GS

SCREW, M3 - 0.5 x 10mm

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182GS

LOCK WASHER, M3

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 90418GS

OUTLET, 12V

$

$

Not available

10

Briggs & Stratton 75207AGS

CIRCUIT BREAKER, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 75207GS

CIRCUIT BREAKER, 20A
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23365GS

WASHER, #8 Shakeproof

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868GS

OUTLET, 120 Volt, 30 Amp Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 120V/240V, 30A Locking

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68759GS

OUTLET, 120V, 20A Duplex

$24.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 43180GS

FLAT WASHER, M4

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264GS

LOCK WASHER, #8 M4

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 51715GS

NUT, M4-0.7 Hex

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526GS

SCREW, #6-32 x 3/8"

$2.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83970GS

BOARD, System Control

$

$

Not available

21

Briggs & Stratton 64525GS

STAND-OFF, 3/4" Hex

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962GS

CIRCUIT BREAKER. 12V, 10A (auto)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335GS

ASSEMBLY,Wire Harness

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134GS

GROMMET, Rubber Conn.

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 2 left!

0
