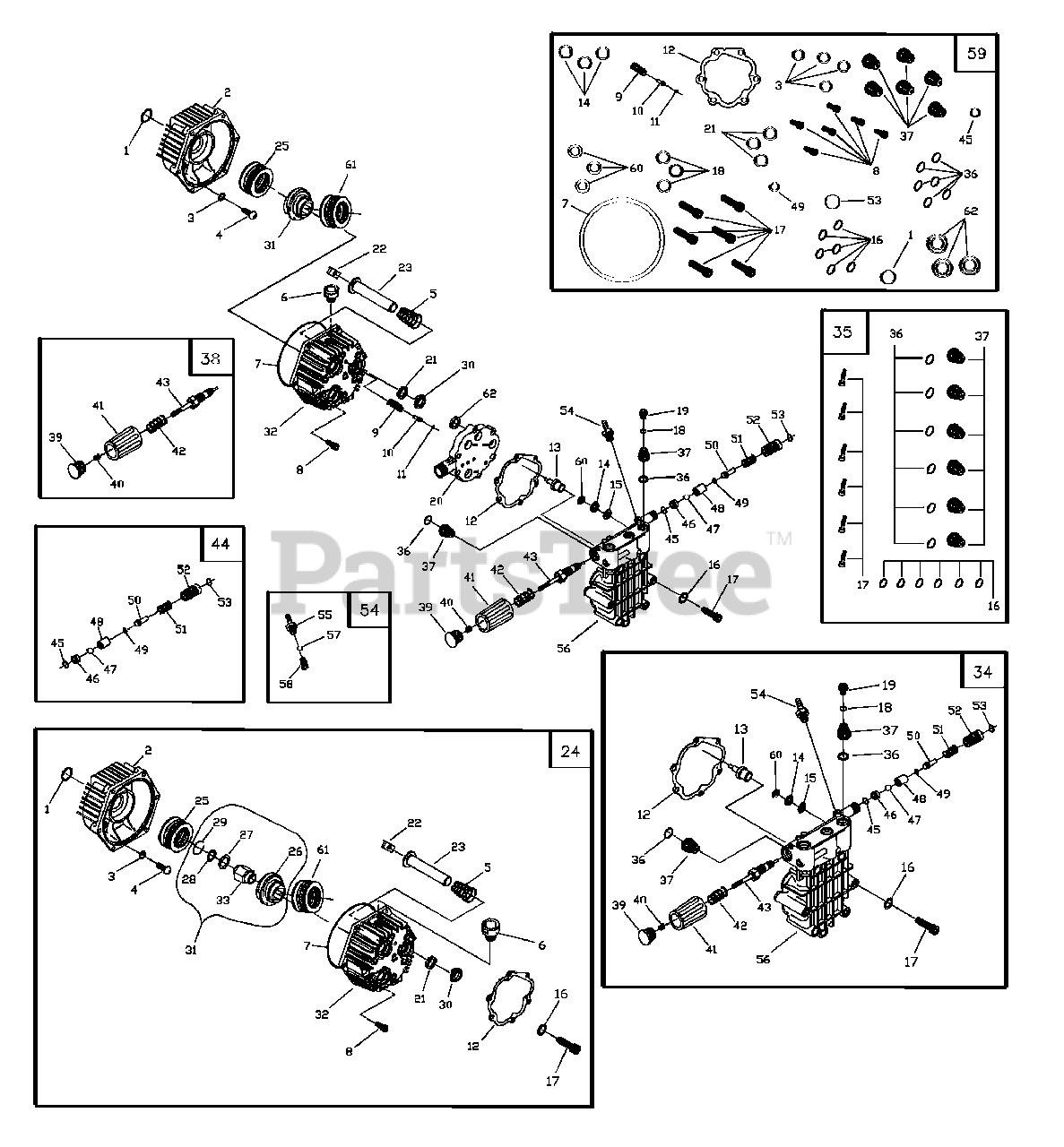

1676-1 - Generac 2,700 PSI Pressure Washer Pump Parts Diagram

2,700 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218GS

O-RING, Engine Adapter

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260GS

ADAPTER, Housing, Cam

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B2217GS

O-RING, Engine Adapter Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B2261BGS

SCREW, Button Hd

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 96400GS

SPRING, Piston Return

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 99735GS

ASSEMBLY, Oil Breather

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93790GS

O-RING, Crankcase

$6.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 40945GS

CAPSCREW, Socket Head

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 93652GS

SPRING, Thermal By-Pass

$6.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 95416GS

PISTON, Thermal By-Pass

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 93876GS

O-RING, Thermal By-Pass

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A2069GS

GASKET, Head

$4.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93644GS

ACTUATOR, Thermal By-Pass

$24.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 96053GS

SEAL, High Pressure

$12.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 96015GS

RING, Bearing

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2665GS

WASHER, Steel Special

$3.49

$

In Stock, Qty 5

0

17

Briggs & Stratton A2013GS

BOLT, Head

$5.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 97840GS

O-RING, Cap

$5.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 97841GS

CAP, Outlet Port

$

$

Not available

20

Briggs & Stratton A1320GS

SPACER PLATE, Inlet

$

$

Not available

21

Briggs & Stratton 93680GS

SEAL, Oil Piston

$7.49

$

In Stock, Qty 6

0

22

Briggs & Stratton 94944GS

SHOE, Piston Pivot

$4.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 99427GS

ASSEMBLY, Ceramic Piston & Cap

$39.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 191315GS

KIT, Crankcase

Note: Service kit includes all parts shown within the box.

$

$

Currently unavailable

1

O-RING, Engine Adapter

$

$

Not available

2

ADAPTER, Housing, Cam

$

$

Not available

3

O-RING, Engine Adapter Bolt

$

$

Not available

4

SCREW, Button Hd

$

$

Not available

5

SPRING, Piston Return

$

$

Not available

6

ASSEMBLY, Oil Breather

$

$

Not available

7

O-RING, Crankcase

$

$

Not available

8

CAPSCREW, Socket Head

$

$

Not available

12

GASKET, Head

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head

$

$

Not available

21

SEAL, Oil Piston

$

$

Not available

22

SHOE, Piston Pivot

$

$

Not available

23

ASSEMBLY, Ceramic Piston & Cap

$

$

Not available

25

BEARING SET

$

$

Not available

30

SPACER, Pilot

$

$

Not available

31

ASSEMBLY, Cam

$

$

Not available

26

CAM, Axial

$

$

Not available

27

WASHER, Thrust

$

$

Not available

28

RETAINER, Push - On

$

$

Not available

29

C-RING, Cam Retainer

$

$

Not available

33

ADAPTER, Shaft Hex

$

$

Not available

32

HOUSING, Piston

$

$

Not available

61

BEARING SET, Cam

$

$

Not available

34

Briggs & Stratton 185752GS

KIT, Complete Head

Note: Service kit includes all parts shown within the box.

$310.99

$

Usually ships in 2-12 days

0

12

GASKET, Head

$

$

Not available

13

ACTUATOR, Thermal By-Pass

$

$

Not available

14

SEAL, High Pressure

$

$

Not available

15

RING, Bearing

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head

$

$

Not available

18

O-RING, Cap

$

$

Not available

19

CAP, Outlet Port

$

$

Not available

36

O-RING, Check Valve

$

$

Not available

37

ASSEMBLY, Check Valve

$

$

Not available

39

CAP, Plastic

$

$

Not available

40

SET SCREW

$

$

Not available

41

HANDLE, Unloader

$

$

Not available

42

SPRING, Unloader

$

$

Not available

43

ASSEMBLY, Spindle

$

$

Not available

45

O-RING, Spindle

$

$

Not available

46

SEAT, Ball Unloader

$

$

Not available

47

BALL, Stainless Steel

$

$

Not available

48

SEAT, Trapped Line Pressure

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

50

VALVE, Shuttle Piston

$

$

Not available

51

SPRING, Piston Trapped Pressure

$

$

Not available

52

VENTURI, Chemical

$

$

Not available

53

O-RING, Venturi

$

$

Not available

56

ASSEMBLY, Head, Brass

$

$

Not available

60

SPACER, High Pressure Seal

$

$

Not available

35

Briggs & Stratton 185933GS

KIT, Check Valve

Note: Service kit includes all parts shown within the box.

$49.99

$

Usually ships in 2-12 days

0

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head

$

$

Not available

36

O-RING, Check Valve

$

$

Not available

37

ASSEMBLY, Check Valve

$

$

Not available

38

Briggs & Stratton B3479GS

KIT, Unloader Spindle

Note: Service kit includes all parts shown within the box.

$50.99

$

Usually ships in 2-12 days

0

39

CAP, Plastic

$

$

Not available

40

SET SCREW

$

$

Not available

41

HANDLE, Unloader

$

$

Not available

42

SPRING, Unloader

$

$

Not available

43

ASSEMBLY, Spindle

$

$

Not available

44

Briggs & Stratton B3510GS

KIT, High Pressure Outlet

Note: Service kit includes all parts shown within the box.

$39.99

$

In Stock, only 1 left!

0

45

O-RING, Spindle

$

$

Not available

46

SEAT, Ball Unloader

$

$

Not available

47

BALL, Stainless Steel

$

$

Not available

48

SEAT, Trapped Line Pressure

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

50

VALVE, Shuttle Piston

$

$

Not available

51

SPRING, Piston Trapped Pressure

$

$

Not available

52

VENTURI, Chemical

$

$

Not available

53

O-RING, Venturi

$

$

Not available

54

Briggs & Stratton 185943GS

KIT, Chemical Injector

Note: Service kit includes all parts shown within the box.

$5.99

$

Usually ships in 2-12 days

0

55

BARB HOSE, Brass w/ Nylon Insert

$

$

Not available

57

BALL, Chemical Injector

$

$

Not available

58

SPRING, Chemical Injector

$

$

Not available

59

Briggs & Stratton 185926GS

KIT, O-Ring Sea Is

Note: Service kit includes all parts shown within the box.

$

$

Not available

1

O-RING, Engine Adapter

$

$

Not available

3

O-RING, Engine Adapter Bolt

$

$

Not available

7

O-RING, Crankcase

$

$

Not available

8

CAPSCREW, Socket Head

$

$

Not available

9

SPRING, Thermal By-Pass

$

$

Not available

10

PISTON, Thermal By-Pass

$

$

Not available

11

O-RING, Thermal By-Pass

$

$

Not available

12

GASKET, Head

$

$

Not available

14

SEAL, High Pressure

$

$

Not available

16

WASHER, Steel Special

$

$

Not available

17

BOLT, Head

$

$

Not available

18

O-RING, Cap

$

$

Not available

21

SEAL, Oil Piston

$

$

Not available

36

O-RING, Check Valve

$

$

Not available

37

ASSEMBLY, Check Valve

$

$

Not available

45

O-RING, Spindle

$

$

Not available

49

O-RING, Trapped Line Pressure

$

$

Not available

53

O-RING, Venturi

$

$

Not available

60

SPACER, High Pressure Seal

$

$

Not available

62

SEAL, U-Cup

$

$

Not available
