1687860 - Snapper Mesh Seat Kit Mesh Seat kit Parts Diagram

Mesh Seat Kit

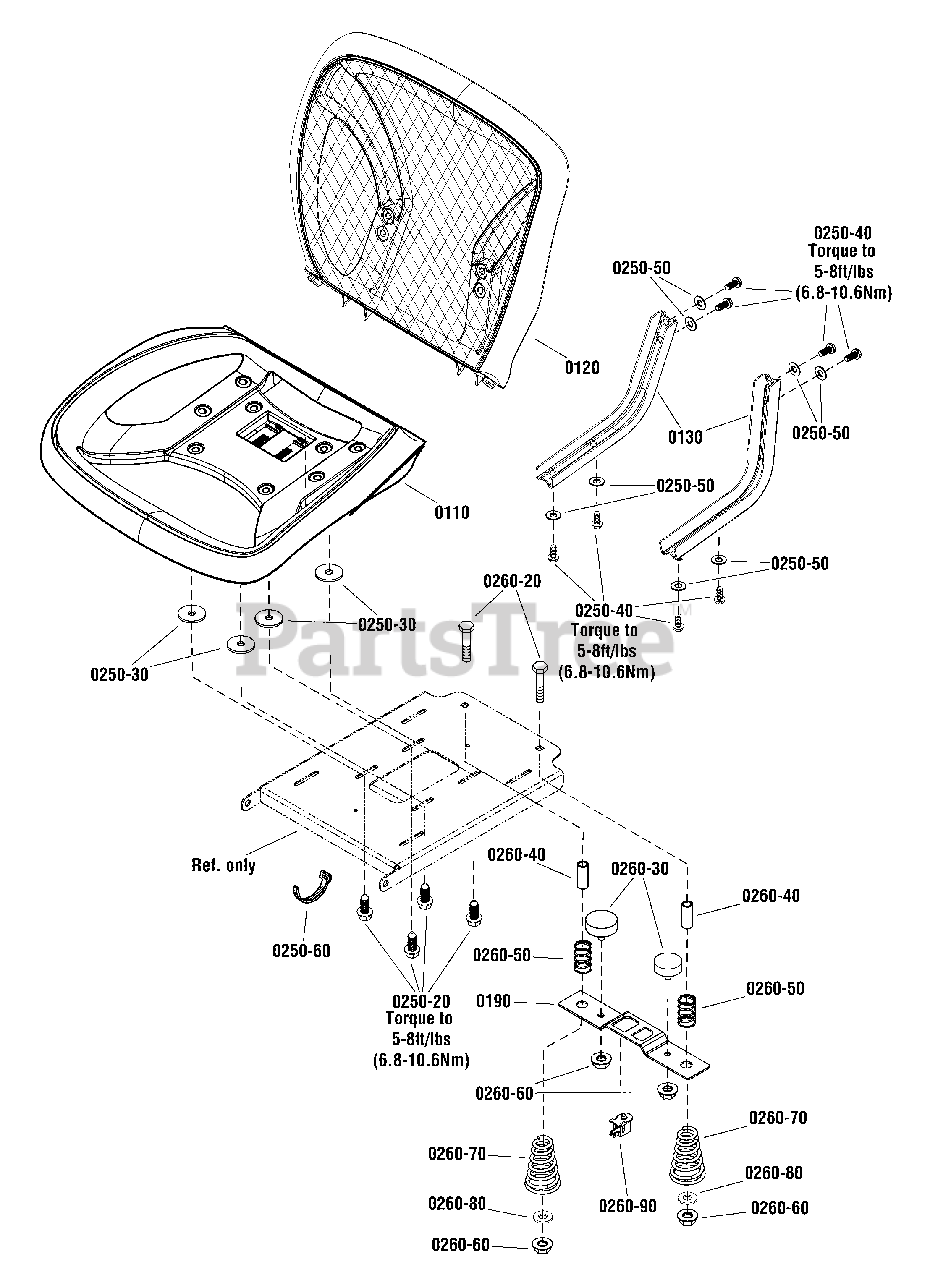

Mesh Seat kit Parts Diagram

  • Title

0110

Snapper 1738013YP

SEAT, Bottom

$225.99

$

In Stock, only 1 left!

0

0120

Snapper 1738014YP

SEAT, Back

$262.99

$

In Stock, only 1 left!

0

0130

Snapper 1737848AYP

SUPPORT, Seat

$29.99

$

Usually ships in 2-12 days

0

0190

Snapper 1759143AYP

BRACKET, Seat Switch

$18.99

$

Usually ships in 2-12 days

0

--

Snapper 1760047

BAG, Hardware

Note: (Not a serviceable part)

$14.99

$

Usually ships in 2-12 days

0

0250-20

Snapper 770697

SCREW, Flange, 5/16-18 X 1

$

$

Not available

0250-30

Snapper 703591

WASHER, Flat, 13/32 x 1 1/2 x 1/8

$5.49

$

In Stock, Qty 15

0

0250-40

Snapper 1930591SM

SCREW, Flange, 5/16-18 X 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 18

0

0250-50

Snapper 5025170SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

0250-60

Snapper 708733

TIE, Cable 1/4

$3.99

$

Usually ships in 2-12 days

0

--

Snapper 1760048

BAG, Hardware

Note: (Not a serviceable part)

$40.99

$

Usually ships in 2-12 days

0

0260-20

Snapper 704421

SCREW, 5/16 X 2 1/4

$5.49

$

Usually ships in 2-12 days

0

0260-30

Snapper 1726390SM

BUMPER, Rubber

$9.99

$

Usually ships in 2-12 days

0

0260-40

Snapper 5041931SM

SPACER, .38 X 1/2 X 1 1/4

$5.99

$

In Stock, only 2 left!

0

0260-50

Snapper 1756196YP

SPRING, Compression

$6.99

$

Usually ships in 2-12 days

0

0260-60

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0260-70

Snapper 1717051SM

SPRING, Seat

$13.99

$

In Stock, Qty 15

0

0260-80

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0260-90

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

--

Snapper 1687860

KIT, Mesh seat

$342.99

$

Usually ships in 2-12 days

0
