169 (2050048U) - Cub Cadet Garden Tractor Transmission Controls Parts Diagram

Garden Tractor

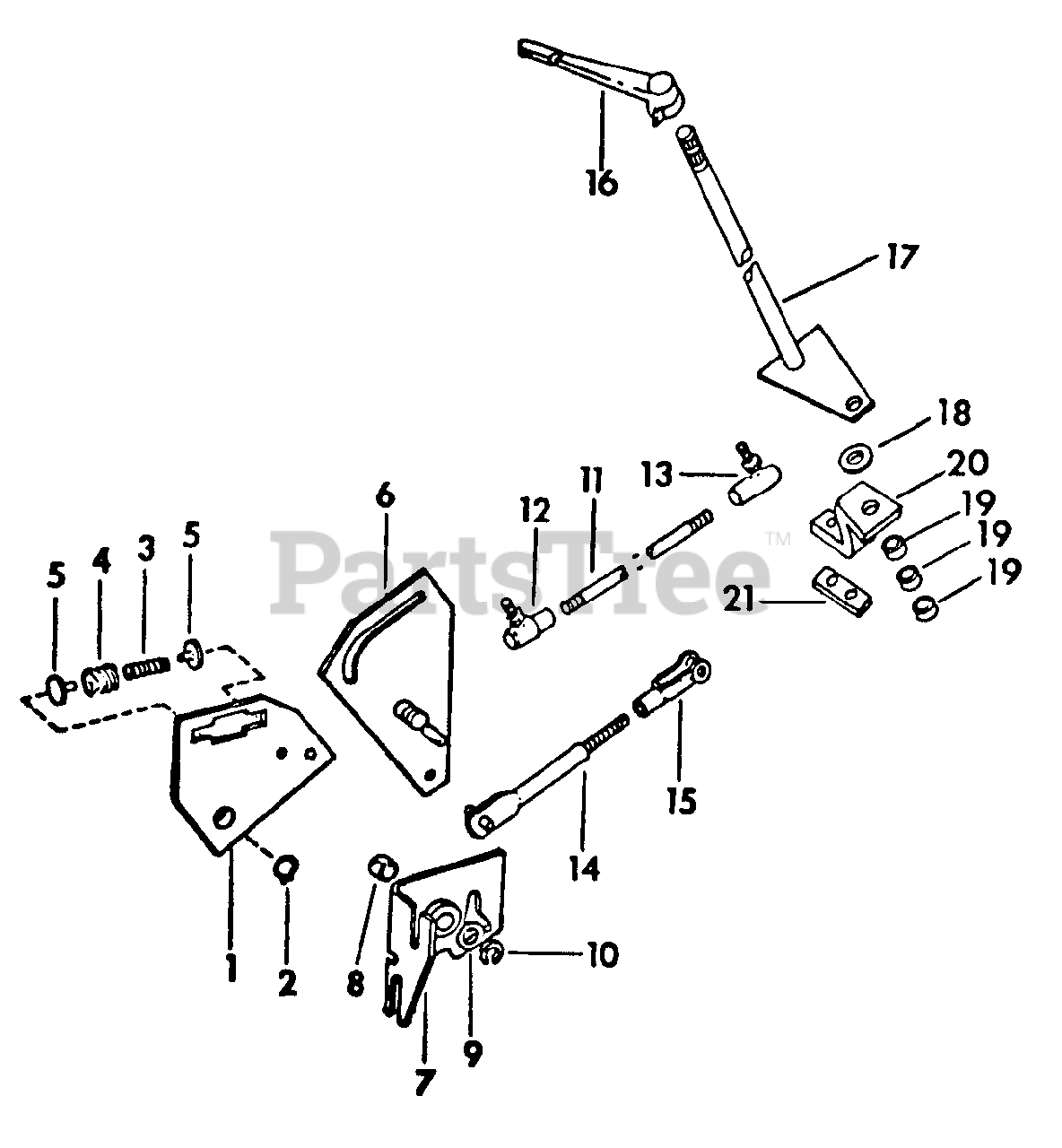

Transmission Controls Parts Diagram

  • Title

1

Cub Cadet 703-0194

Plate Assy, Damper Spring
(Superseded to 903-0194)

$122.99

$

In Stock, only 1 left!

0

2

Cub Cadet 716-0115

Ring, Damper Plate Retaining
(Superseded to 916-0115)

$

$

Not available

3

Cub Cadet 732-3012

Spring, Damper Light
(Superseded to 932-3012)

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 732-3013

Spring, Damper Heavy
(Superseded to 932-3013)

$6.99

$

In Stock, Qty 7

0

5

Cub Cadet 711-3033

Pin, Damper Spring Guide

$14.99

$

In Stock, Qty 6

0

6

Cub Cadet IH-548057-R2

Cam Assy, Control

$

$

Not available

7

Cub Cadet IH-548055-R2

Bracket Assy, Cam Pivot

$

$

Not available

Screw, 3/8-16 X 1-1/2 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-279783-R1

Spacer, .406 X .68 X .083

$

$

Not available

8

Cub Cadet IH-394048-R1

Bushing, Cam Pivot

$27.99

$

In Stock, only 1 left!

0

9

Cub Cadet IH-394049-R1

Washer, Cam Retaining
(Superseded to 936-0272)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0865

Ring, Cam Retaining

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet IH-545515-R1

Stud, Connecting

$

$

Not available

12

Cub Cadet 723-3011

Joint, 5/16-24 X 1-1/2 C-Z RH Thd Ball
(Superseded to 923-3011)

$34.99

$

In Stock, only 2 left!

0

Cub Cadet 736-0119

Nut, 5/16-24 Hex Jam
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3008

Washer, 11/32 X 3/4 X 11 Ga C-Z
(Superseded to 936-3008)

$6.49

$

In Stock, only 1 left!

0

13

Cub Cadet 723-3012

Joint, 5/16-24 C-Z Ball
(Superseded to 923-3012)

$39.99

$

In Stock, only 2 left!

0

Cub Cadet 712-0237

Nut, 5/16-24 Hex Nylon Insert

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet IH-545513-R2

Rod Assy, Control

$

$

Not available

Nut, 5/16-24 Hex

Note: (Common Hardware, Purchase Locally)

$

$

Not available

15

Cub Cadet 719-3018

Clevis, 5/16 Adj Rod End Pin

$40.99

$

Usually ships in 3-6 days

0

Cub Cadet 711-3060

Pin, 5/16 Rod End

$

$

Not available

Pin, 3/32 X 1/2 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

16

Cub Cadet IH-401388-R3

Handle, Speed Control

$

$

Currently unavailable

Cub Cadet IH-192454

Screw, 10-24 X 1/2 Hex Soc Hd Half Dog Pt Set

$

$

Not available

17

Cub Cadet IH-106220-C1

Shaft Assy, Control

$

$

Not available

Nut, 1/2-20 Hex Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

18

Cub Cadet 723-3013

Disc, Friction
(Superseded to 923-3013)

$

$

Not available

19

Cub Cadet 736-3022

Washer, Belleville Spring
(Superseded to 936-3022)

$5.49

$

In Stock, only 4 left!

0

20

Cub Cadet IH-106272-C1

Support, Control Rod

$

$

Not available

Cub Cadet IH-25485-R1

Screw, 1/4-20 X 1-1/4 Phc Hex Hd Cap Type 8

$

$

Currently unavailable

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

21

Cub Cadet IH-106277-C1

Shim, Control Support

$

$

Not available
