1690159 - Simplicity PTO, 540 RPM P.T.O. 540 RPM Parts Diagram

PTO, 540 RPM

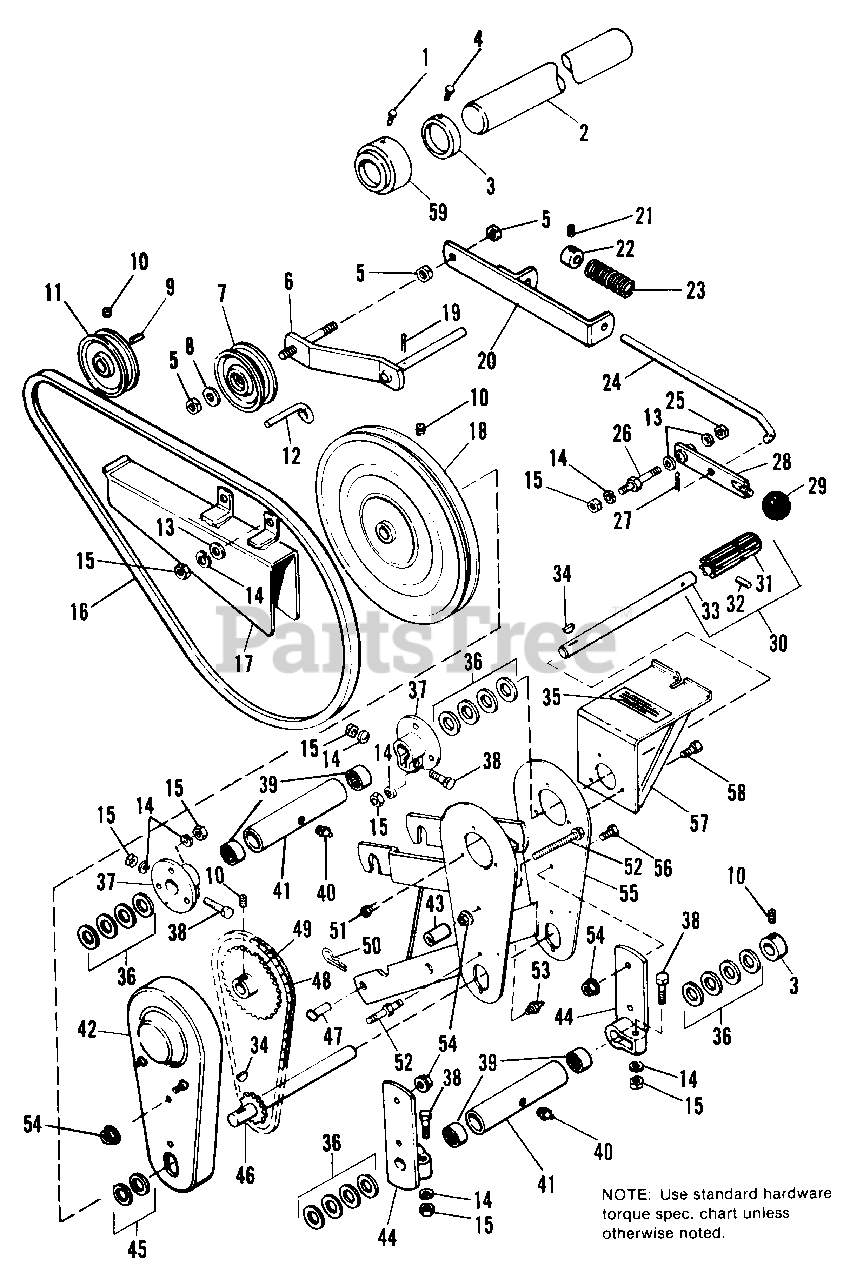

P.T.O. 540 RPM Parts Diagram

  • Title

1

Simplicity 1930540SM

SETSCREW, Sq. Hd., 5/16-18 x 5/8

$4.49

$

In Stock, Qty 11

0

2

Simplicity 2154216SM

SHAFT, Lift

$15.99

$

Usually ships in 2-12 days

0

3

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

4

Simplicity 1928721SM

SETSCREW, Sq. Hd., 5/16-18 x 1/2

$4.99

$

In Stock, Qty 13

0

5

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

6

Simplicity 167021

PIVOT ASSY.

$

$

Not available

7

Simplicity 105285

PULLEY, Idler

$

$

Not available

8

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 2805850SM

KEY, Sq., 3/16 x 1

$2.49

$

Usually ships in 2-12 days

0

10

Simplicity 1960619SM

SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16

$3.49

$

In Stock, only 2 left!

0

11

Simplicity 2164202SM

PULLEY

$61.99

$

Usually ships in 2-12 days

0

12

Simplicity 2167032SM

STOP, Belt

$31.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917646

WASHER, Plain, 5/16

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1703836SM

BELT, Drive

$45.99

$

In Stock, Qty 13

0

17

Simplicity 1655046

GUARD ASSY., Belt & Pulley

$

$

Not available

18

Simplicity 167020

PULLEY, (Incl. Ref. No. 10)

$

$

Not available

19

Simplicity 1918452SM

PIN, Cotter, 1/8 x 1
(Superseded to 703795)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 1729265SM

GUIDE ASSY., Clutch

$41.99

$

Usually ships in 2-12 days

0

21

Simplicity 1928804SM

SETSCREW, Sq. Hd., 1/4-20 x 3/8

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

23

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 167025

ROD, Clutch

$

$

Not available

25

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

26

Simplicity 162063

STUD

$

$

Not available

27

Simplicity 1918447SM

COTTER PIN, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 167026

HANDLE ASSY.

$

$

Not available

29

Simplicity 1729255SM

BALL, Knob

$12.99

$

In Stock, only 1 left!

0

30

Simplicity 167014

SHAFT ASSY. (Incl. Ref. Nos. 31 & 33)

$

$

Not available

31

SHAFT, Spline (Order Ref. No. 30)

$

$

Not available

32

Simplicity 167029

PIN, Dowel

$

$

Not available

33

SHAFT, PTO (Order Ref. No. 30)

$

$

Not available

34

Simplicity 2805123SM

KEY, Woodruff, #9, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 7

0

35

Simplicity 167030

DECAL, Warning

$

$

Not available

36

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 11

0

37

Simplicity 167009

FLANGE ASSY.

$

$

Not available

38

Simplicity 1921221SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

39

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, only 2 left!

0

40

Simplicity 2812808SM

FITTING, Grease, 1/4-28

$4.49

$

In Stock, only 2 left!

0

41

Simplicity 167006

HOUSING, Needle

$

$

Not available

42

Simplicity 172550

GUARD ASSY.

$

$

Not available

43

Simplicity 2121121

SPACER, Latch

$

$

Not available

44

Simplicity 106479

SUPPORT ASSY., Clamp

$

$

Not available

45

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

46

Simplicity 167007

SHAFT ASSY.

$

$

Not available

47

Simplicity 2155037SM

PIN

$12.99

$

In Stock, only 1 left!

0

48

Simplicity 106058

CHAIN

$

$

Not available

49

Simplicity 167017

SPROCKET

$

$

Not available

50

Simplicity 2106788

CLIP, Spring (Serviced 5 in a pack)

$

$

Not available

51

Simplicity 1925205SM

CAPSCREW, Hex Hd., 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

52

Simplicity 1933254

SCREW, Flange, Whiz., 3/8-16 x 2-1/4 (Later models)

Note: To replace Stud on early model tractors, order Kit No. 1685135 which Includes one each of Part Nos. 121121, Spacer; 928532, Nut; and 913254, Screw.

$

$

Not available

52

STUD (Earlier models)

$

$

Not available

53

Simplicity 2813958

FITTING, Grease, Drive, 1/4

$

$

Not available

54

Simplicity 1928352SM

NUT, Hex, Whizlock 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

55

Simplicity 167001

FRAME ASSY.

$

$

Not available

56

Simplicity 1921965SM

CAPSCREW, Hex Hd., 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

57

Simplicity 167011

GUARD ASSY., PTO

$

$

Not available

58

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

59

Simplicity 2157695SM

COLLAR, Set

$87.99

$

Usually ships in 2-12 days

0
