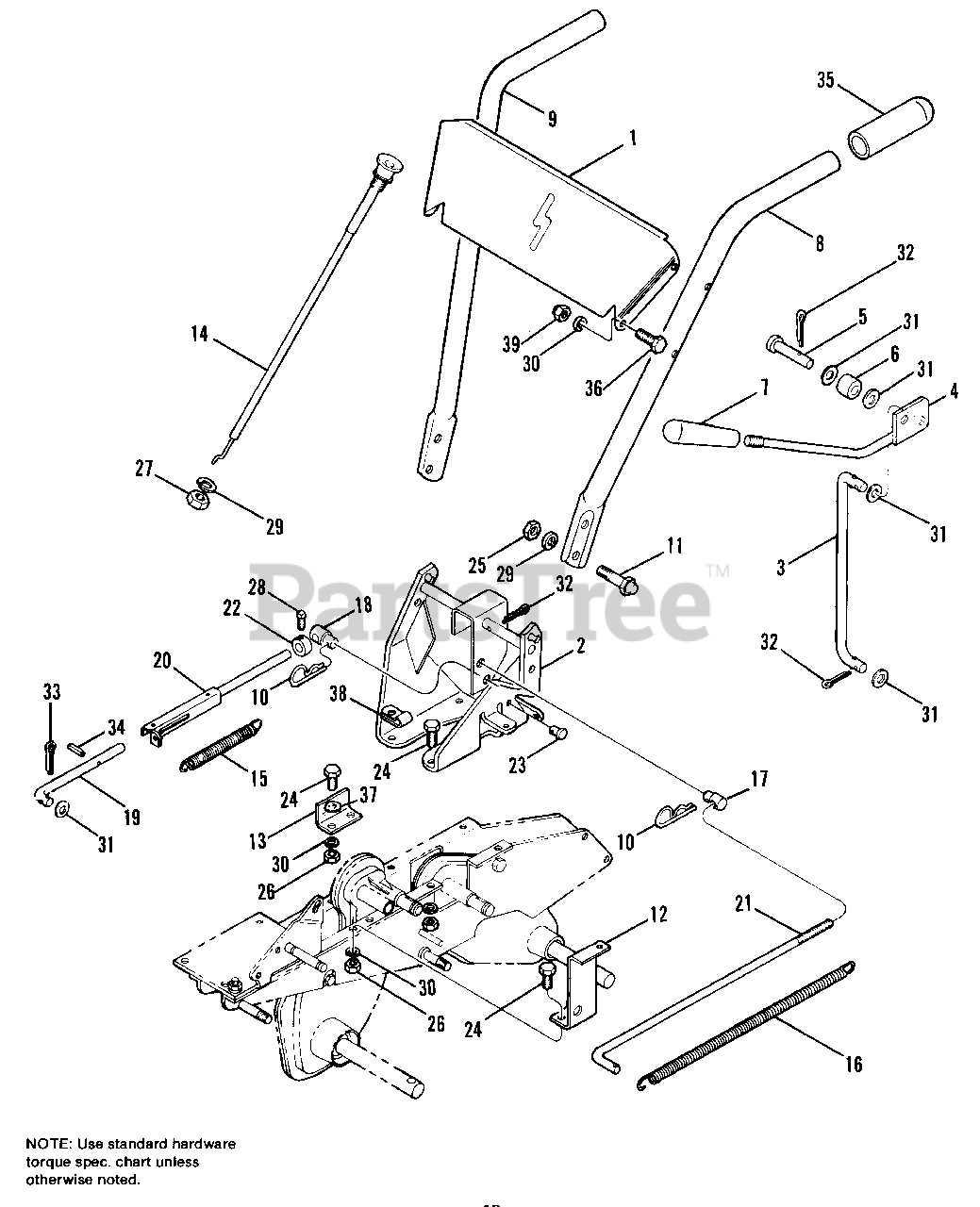

1690804 - Simplicity Rear-Tine Tiller, 5hp Handle and Control Parts Diagram

Rear-Tine Tiller, 5hp

Handle and Control Parts Diagram

  • Title

1

Simplicity 1671759

HANDLE PANEL & DECAL ASSEMBLY

$

$

Not available

2

Simplicity 1671760

HANDLE SUPPORT ASSEMBLY

$

$

Not available

3

Simplicity 1671761

CONTROL LINK

$

$

Not available

4

Simplicity 1671762

CLUTCH HANDLE ASSEMBLY

$

$

Not available

5

Simplicity 1671763

CLEVIS PIN

$

$

Not available

6

Simplicity 1671764

RUBBER SPACER

$

$

Not available

7

Simplicity 1671765

KNOB

$

$

Not available

8

Simplicity 1671767

HANDLE TUBE-L.H.

$

$

Not available

9

Simplicity 1671766

HANDLE TUBE-R.H.

$

$

Not available

10

Simplicity 1918196SM

SPRING CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1671861

BOLT, Hex Hd., 3/8-16 x 1

$

$

Not available

12

Simplicity 1671768

BRACKET ASSEMBLY

$

$

Not available

13

Simplicity 1671769

PIVOT BRCKET

$

$

Not available

14

Simplicity 1671770

THROTTLE CONTROL

$

$

Not available

15

Simplicity 1671771

SPRING

$

$

Not available

16

Simplicity 1671772

SPRING-Wheel Drive

$

$

Not available

17

Simplicity 1671773

TRUNNION

$

$

Not available

18

Simplicity 1671775

TRUNNION

$

$

Not available

19

Simplicity 1671774

TINE DRIVE LINK

$

$

Not available

20

Simplicity 1671776

REAR TINE DRIVE LINK ASSEMBLY

$

$

Not available

21

Simplicity 1671777

WHEEL DRIVE LINK

$

$

Not available

22

Simplicity 1671778

STOP COLLAR

$

$

Not available

23

Simplicity 1671779

CLEVIS PIN

$

$

Not available

24

Simplicity 2821332

CAP SCREW, Hex Hd. 5/16-18 x 3/4" Plated

$

$

Not available

25

Simplicity 2816950SM

NUT, Hex 3/8-16 Plated
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

26

Simplicity 1917372SM

NUT, Hex 5/16-18 Plated
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 916602

NUT, Hex 3/8-24 Plated

$

$

Not available

28

Simplicity 936714

SETSCREW, Sq. Hd. Cup Pt. 1/4-28 x 1/4" Plated

$

$

Not available

29

Simplicity 1916965SM

WASHER, Spring Lock 3/8 Plated
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

30

Simplicity 1917356SM

WASHER, Spring Lock 5/16 Plated
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2156065

WASHER, Flat SAE 3/8 Plated

$

$

Not available

32

Simplicity 2818447

PIN, Cotter 3/32 x 3/4" Plated

$

$

Not available

33

Simplicity 2818451

PIN, Cotter 1/8 x 3/4" Plated

$

$

Not available

34

Simplicity 2819180SM

PIN, Roll 1/8 x 5/8" Heat Treated

$3.49

$

Usually ships in 2-12 days

0

35

Simplicity 1671780

GRIP

$

$

Not available

36

Simplicity 1922127SM

CAP SCREW, Hex Hd. 5/16-18 x 1-3/4" Plated
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

37

Simplicity 2819326

WASHER, Flat SAE 5/16 Plated

$

$

Not available

38

Simplicity 1672021

CABLE CLAMP

$

$

Not available

39

Simplicity 2823362

NUT, Cone Lock, 5/16-18 Plated

$

$

Not available
