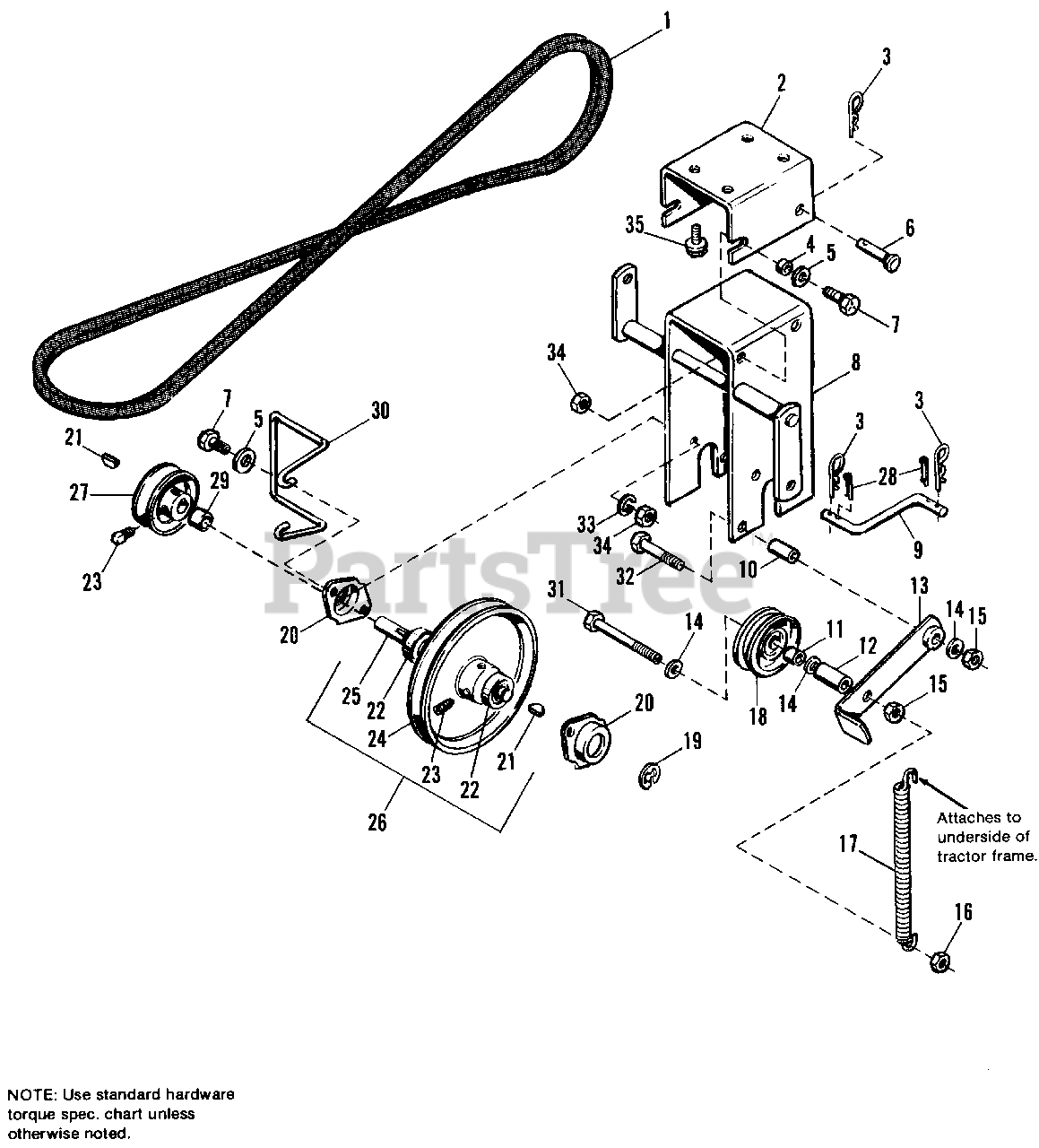

1691277 - Simplicity 30" Offset Tiller Jackshaft Group Parts Diagram

30" Offset Tiller

Jackshaft Group Parts Diagram

  • Title

1

Simplicity 1700059SM

BELT, "V" Front

$40.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679797

BRACKET, Jackshaft, Frame

$

$

Not available

3

Simplicity 1918196SM

PIN
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1675481SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 1924874SM

WASHER, Flat, 3/8 x 7/8 x 1/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1960116SM

PIN, Rivet
(Superseded to 5025479YP)

$3.99

$

In Stock, Qty 15

0

7

Simplicity 1921333SM

BOLT, Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

8

Simplicity 1679746

BRACKET ASSY., Jackshaft

$

$

Not available

9

Simplicity 1679745

LINK, Clutch

$

$

Not available

10

Simplicity 1663194

SPACER

$

$

Not available

11

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 2170369SM

SPACER

$

$

Not available

13

Simplicity 1679015

ARM, Idler Assy.

$

$

Not available

14

Simplicity 1922755SM

WASHER, Flat, 3/32 x 1 x 16
(Superseded to 704128)

$4.99

$

In Stock, Qty 7

0

15

Simplicity 1916950SM

NUT, Hex, 3/8-16 Unc.
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

16

Simplicity 1930645SM

NUT, Hex, 3/8-16 Unc.
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 1666759SM

SPRING, Extension

$

$

Not available

18

Simplicity 2154534SM

PULLEY ASSY.

$32.99

$

In Stock, only 2 left!

0

19

Simplicity 2827793SM

"E" RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1667341SM

RETAINER, Bearing
(Superseded to 703155)

$5.99

$

In Stock, Qty 16

0

21

Simplicity 2805123SM

KEY, Woodruff, #9, 5/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 5

0

22

Simplicity 1705897SM

BEARING

$8.49

$

In Stock, Qty 20+

0

23

Simplicity 1930544SM

SETSCREW, 5/16-18 x 3/8
(Superseded to 704033)

$4.49

$

Usually ships in 2-12 days

0

24

Simplicity 1679728

PULLEY ASSY.

$

$

Not available

25

Simplicity 1679723

SHAFT, Jack

$

$

Not available

26

Simplicity 1700313

SHAFT ASSY., Jack

$

$

Not available

27

Simplicity 1679727

PULLEY

$

$

Not available

28

Simplicity 1918447SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 1700258

SPACER

$

$

Not available

30

Simplicity 1700051

STOP, Belt

$

$

Not available

31

Simplicity 1923903SM

BOLT, Hex Hd., 3/8-16 Unc. x 3

$4.49

$

In Stock, only 1 left!

0

32

Simplicity 1921974SM

BOLT, Hex Hd., 3/8-16 Unc. x 1-1/2

$

$

Not available

33

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1923683SM

SCREW, Hex, Washer Hd., Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, Qty 6

0
