1691360 - Simplicity 46" Snow Thrower Attachment 46" Snowthrower, Body & Rotor Group Parts Diagram

46" Snow Thrower Attachment

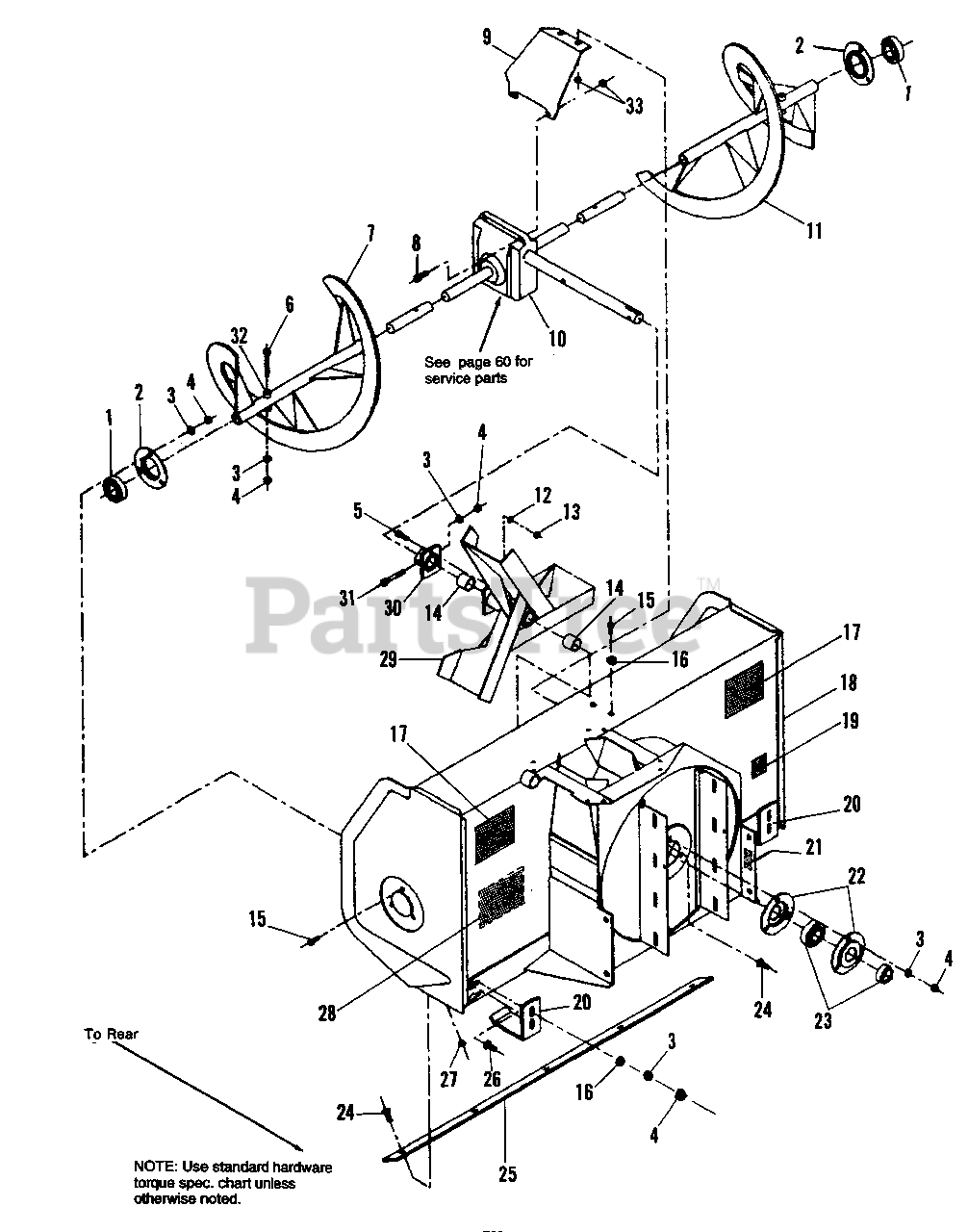

46" Snowthrower, Body & Rotor Group Parts Diagram

  • Title

1

Simplicity 1701045SM

BEARING, w/Locking Screw
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

2

Simplicity 1701046SM

FLANGE, Bearing
(Superseded to 2172278ASM)

Note: (Cover)

$11.99

$

In Stock, only 2 left!

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1921961SM

BOLT, Shear, 1/4-20 x 1-1/4, Gr. 5

$4.49

$

In Stock, only 3 left!

0

6

Snapper 1700680SM

SHEAR BOLT, 5/16-18 x 2-1/4

$6.99

$

In Stock, only 3 left!

0

7

Simplicity 1701042SM

AUGER ASSY., L.H.

$341.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921977SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

9

Simplicity 1701047SM

BRACKET, Support

Note: (Worm Gear)

$36.99

$

Usually ships in 2-12 days

0

10

Simplicity 1707748SM

GEAR ASSY., Worm (Clockwise)

Note: See "46" Snowthrower, Gear Assembly" Illustration and part list. Used on Mfg. No. 1671360 Before Serial No. 00309.

$

$

Not available

10

Simplicity 1707748SM

GEAR ASSY., Worm (Clockwise)

Note: See "46" Snowthrower, Gear Assembly" Illustration and part list. Used on Mfg. No. 1671360 After Serial No. 00308.

$

$

Not available

11

Simplicity 1701044SM

AUGER ASSY., R.H.

$274.99

$

Usually ships in 2-12 days

0

12

Simplicity 1916964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 2168103SM

BUSHING, 1" O.D. x 1-1/8" O.D. x 1"

$32.99

$

In Stock, only 3 left!

0

15

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

16

Simplicity 1918266SM

WASHER, Plain, S.A.E. 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

17

Simplicity 1701067

DECAL, Danger

Note: (Rotating Auger)

$

$

Not available

18

Simplicity 1701036SM

FRAME ASSY.

$891.99

$

Usually ships in 2-12 days

0

19

Simplicity 1701043

DECAL, Lube, Chain

$

$

Not available

20

Simplicity 1713706SM

SHOE, Skid

$41.99

$

Usually ships in 2-12 days

0

21

Simplicity 1701141

DECAL, Oil Level

$

$

Not available

22

Simplicity 2172278ASM

FLANGE, Bearing

Note: (Cover)

$11.99

$

In Stock, only 2 left!

0

23

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

24

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1701050SM

EDGE, Cutting

$148.99

$

Usually ships in 2-12 days

0

26

Simplicity 1931335SM

BOLT, Carriage, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

27

Simplicity 1928698SM

NUT, Hex Fin. Jam, 5/16-18

Note: (Center or Top Lock)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 1701142

DECAL, Shear Bolts

$

$

Not available

29

Simplicity 1701038SM

FAN ASSY.

$353.99

$

Usually ships in 2-12 days

0

30

Simplicity 1701040SM

ADAPTOR, Fan Shear Plate

$95.99

$

Usually ships in 2-12 days

0

31

Simplicity 1921978SM

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

32

Simplicity 1701052SM

BUSHING, Shear Bolt

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1919438SM

NUT, Hex, ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0
