1691360 - Simplicity 46" Snow Thrower Attachment 46" Snowthrower, Hitch Group (Prior To Serial No 00309) Parts Diagram

46" Snow Thrower Attachment

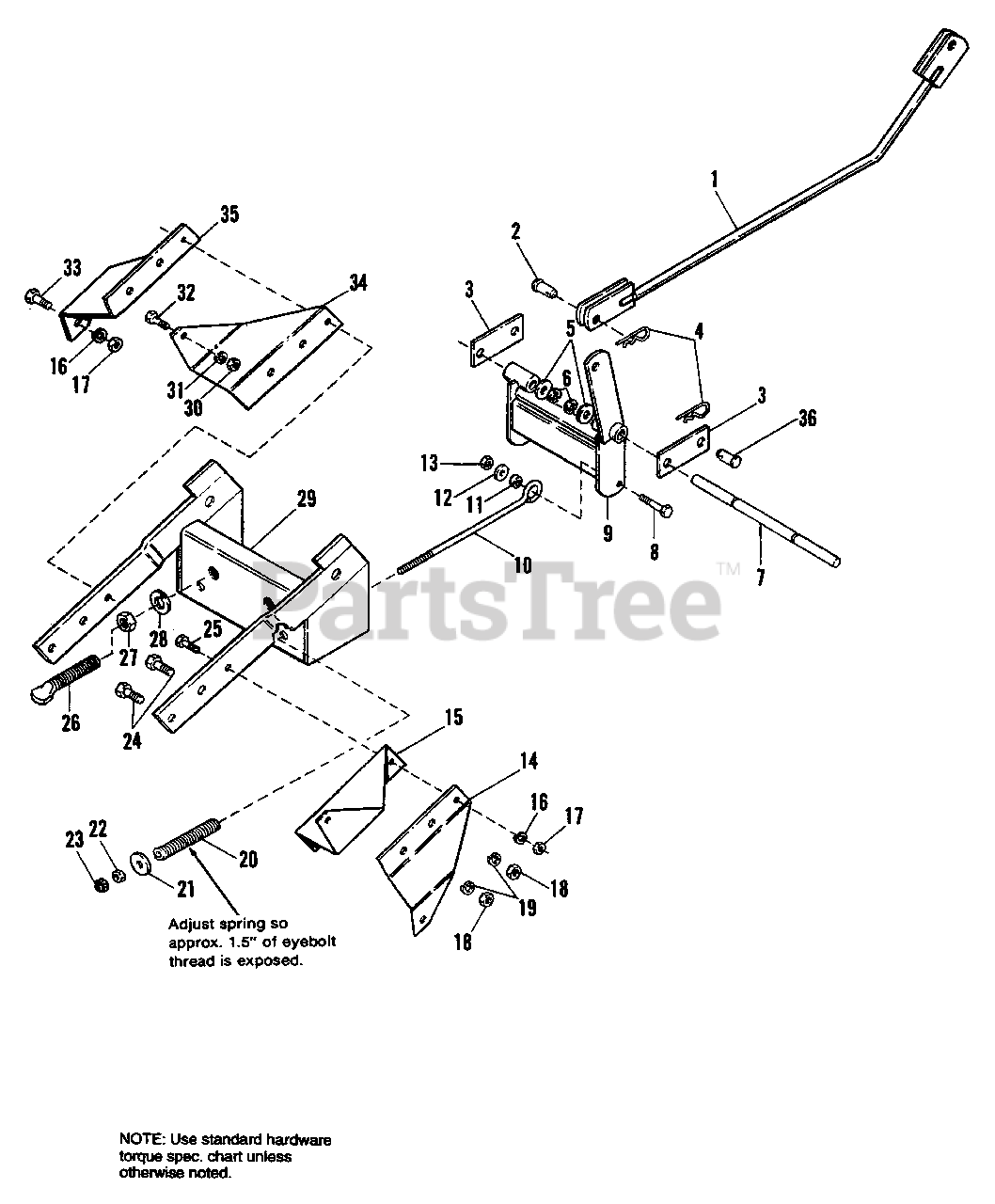

46" Snowthrower, Hitch Group (Prior To Serial No 00309) Parts Diagram

  • Title

1

Snapper 1675390ASM

LIFT ROD ASSY.

$

$

Not available

2

Simplicity 1960038SM

PIN, Clevis

$

$

Not available

3

Simplicity 1675525SM

LINK

$

$

Not available

4

Simplicity 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, only 1 left!

0

5

Simplicity 1960020SM

WASHER, Plain, 41/64 x 1-1/4

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 2827793SM

RING, Retaining, 5/8
(Superseded to 703977)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1685484SM

SHAFT, Inner

$80.99

$

Usually ships in 2-12 days

0

8

Simplicity 1922664SM

CAPSCREW, Hex Hd., 5/8-11 x 2

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1675502SM

HITCH ASSY.

$

$

Not available

10

Simplicity 1675523SM

EYEBOLT

$19.99

$

Usually ships in 2-12 days

0

11

Simplicity 2175647SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 2833757

WASHER, Plain, 41/64 x 1-3/4

$

$

Not available

13

Simplicity 1923353SM

NUT, Hex, Centerlock, 5/8-11

$2.49

$

Usually ships in 2-12 days

0

14

Simplicity 1701104SM

BRACKET, Attaching, L.H., Lower

$55.99

$

Usually ships in 2-12 days

0

15

Simplicity 1701041SM

BRACKET, Attaching, L.H., Upper

$55.99

$

Usually ships in 2-12 days

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

17

Simplicity 1916950SM

NUT, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

18

Simplicity 1918213SM

NUT, 7/16-14

$4.99

$

In Stock, only 2 left!

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

20

Simplicity 1675524SM

SPRING, Compression

$20.99

$

Usually ships in 2-12 days

0

21

Simplicity 1960071SM

WASHER, 3/8 x 1-3/4 x 1/4

$8.49

$

In Stock, only 2 left!

0

22

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

23

Simplicity 1917421SM

NUT, Hex, Jam, 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

24

Simplicity 1920677SM

CAPSCREW, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

25

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

26

Simplicity 1676959SM

STUD

$25.99

$

Usually ships in 2-12 days

0

27

Simplicity 1913160SM

NUT, Hex, 3/4-10

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919332SM

LOCKWASHER, 3/4 Std.

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 1703635SM

HITCH ASSY., Blower
(Superseded to 1703635ASM)

$216.99

$

Usually ships in 2-12 days

0

30

Simplicity 1916951SM

NUT, 1/2-13
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

31

Simplicity 1916966SM

LOCKWASHER, 1/2
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1923114SM

CAPSCREW, Hex Hd., 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

33

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

34

Simplicity 1701105SM

BRACKET, Attaching, R.H., Upper

$55.99

$

Usually ships in 2-12 days

0

35

Simplicity 1701106SM

BRACKET, Attaching, R.H., Lower

$55.99

$

Usually ships in 2-12 days

0

36

Simplicity 1703683SM

PIN ASSY. (Flat Head)
(Superseded to 1703683ASM)

$40.99

$

Usually ships in 2-12 days

0

Simplicity 1685300SM

HYDRAULIC OIL FLOW RESTRICTOR

Note: Not Shown

$66.99

$

Usually ships in 2-12 days

0
