1691366 - Simplicity Electric Spout Rotator Electric Spout Rotator Parts Diagram

Electric Spout Rotator

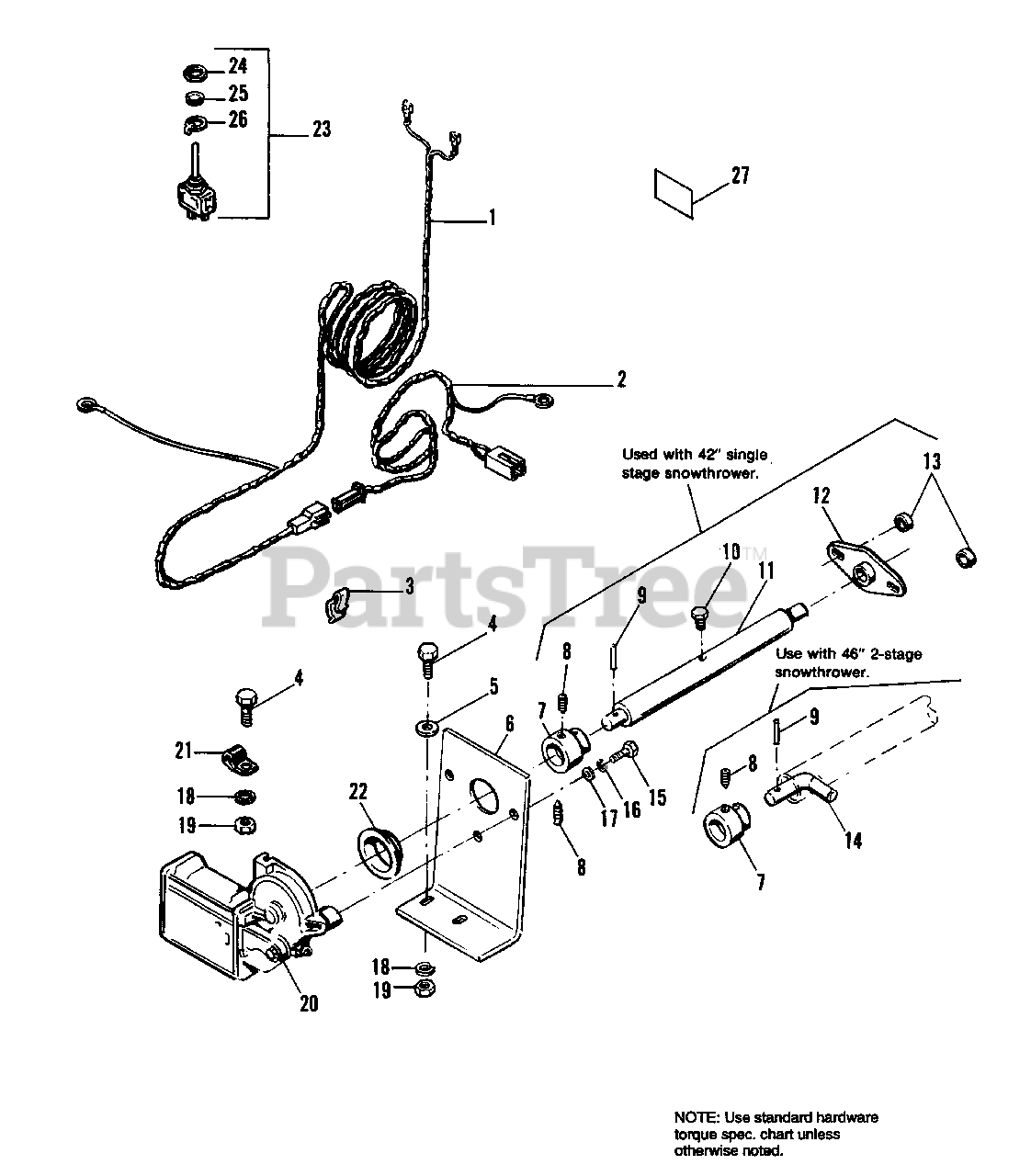

Electric Spout Rotator Parts Diagram

  • Title

1

Simplicity 1679168SM

HARNESS, Wiring, Spout Switch

$50.99

$

Usually ships in 2-12 days

0

2

Simplicity 1679167SM

HARNESS, Wiring, Spout Motor

$50.99

$

Usually ships in 2-12 days

0

3

Simplicity 2172436SM

CLIP, Cable

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1921210SM

CAPSCREW, Hex Hd., 3/8-16 x 13
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

5

Simplicity 1924940SM

WASHER, Plain, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 2176104SM

BRACKET, Motor

$43.99

$

Usually ships in 2-12 days

0

7

Simplicity 2174078SM

HUB

$56.99

$

Usually ships in 2-12 days

0

8

Simplicity 1930547SM

SCREW, Hex Skt. Hd. Taptite, 1/4-2 x 3/8

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1926228SM

PIN, Spring 5/32 Dia. x 1 Lg.

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 1929000SM

SCREW, Hex Washer Hd. Taptite, 1/4-2 x 3/8
(Superseded to 703583)

Note: Used on 42" single stage snowthrower.

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 2176102SM

ROD, Spout Control

Note: Used on 42" single stage snowthrower.

$

$

Not available

12

Simplicity 2106491SM

BEARING, Self Aligning

Note: Used on 42" single stage snowthrower.

$11.99

$

Usually ships in 2-12 days

0

13

Simplicity 2165034SM

SPACER

Note: Used on 42" single stage snowthrower.

$9.49

$

Usually ships in 2-12 days

0

14

Simplicity 1700887SM

Pin, Spout Control Rod

Note: Used on 46" 2 - stage snowthrower.

$

$

Not available

15

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-2 x 3/4

$4.49

$

In Stock, Qty 8

0

16

Simplicity 1916964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 1921319SM

WASHER, Plain, 9/32
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

18

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

19

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 8

0

20

Simplicity 1664115SM

MOTOR, Spout Control

$

$

Not available

21

Simplicity 122186

CLAMP

$

$

Not available

22

Simplicity 2174072SM

BEARING, Flange

$

$

Not available

23

Simplicity 2174428SM

SWITCH, Spout Control

$71.99

$

Usually ships in 2-12 days

0

24

Simplicity 1650959

NUT

$

$

Not available

25

Simplicity 1650960

LOCKWASHER, Int. Th.

$

$

Not available

26

Simplicity 1650958

RING, Locking

$

$

Not available

27

Simplicity 1679156SM

DECAL, Spout Rotator

$43.99

$

Usually ships in 2-12 days

0
