1691521 - Simplicity 36" Snow Thrower Attachment Drive Group Parts Diagram

36" Snow Thrower Attachment

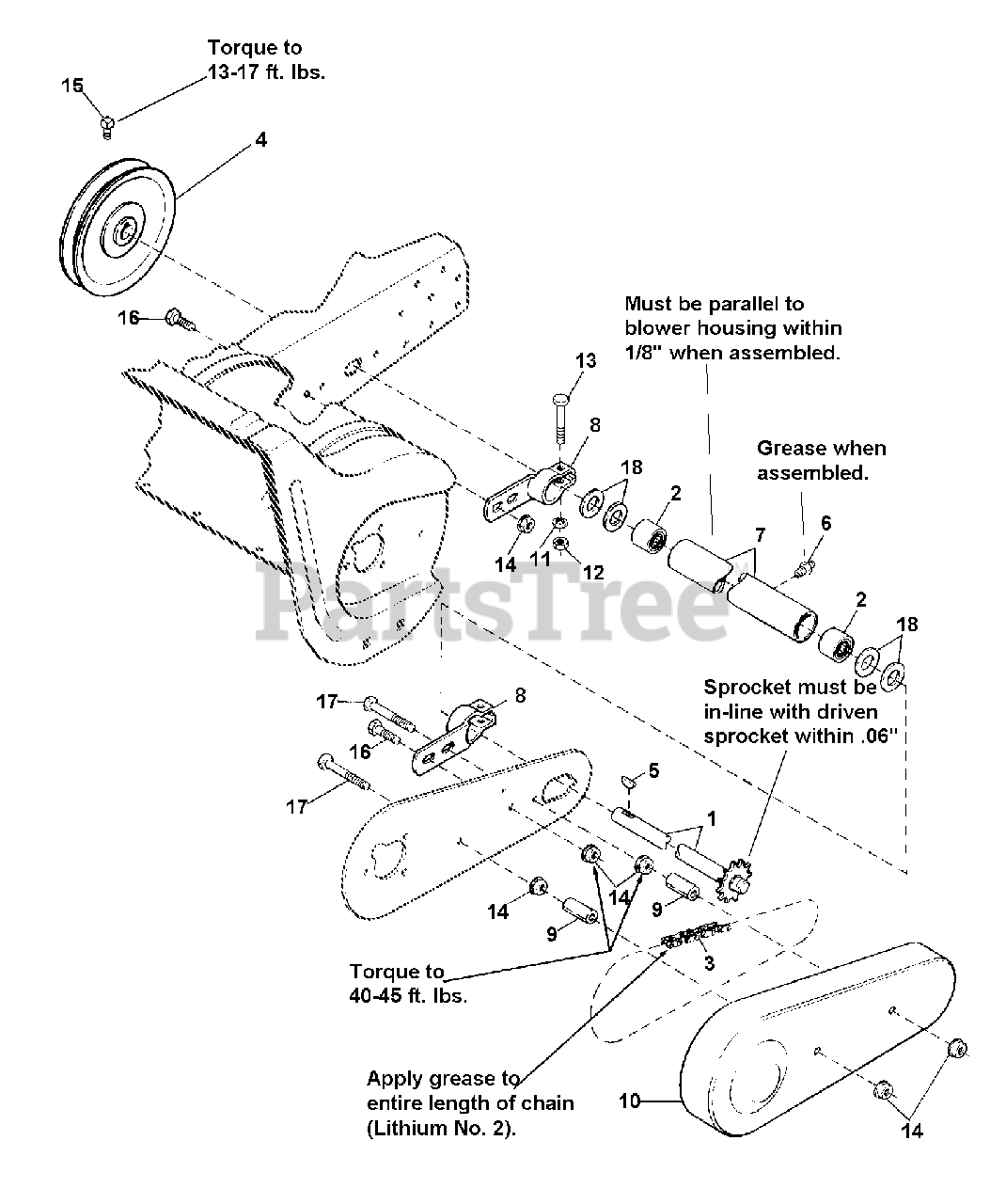

Drive Group Parts Diagram

  • Title

1

Simplicity 2106860SM

SHAFT ASSEMBLY

$70.99

$

Usually ships in 2-12 days

0

3

Simplicity 2171242SM

CHAIN (Auger Drive) #40 32" 64 Pitch

$66.99

$

Usually ships in 2-12 days

0

4

Simplicity 2171248SM

PULLEY

$103.99

$

Usually ships in 2-12 days

0

5

Simplicity 2805123SM

KEY
(Superseded to 7010211YP)

$3.49

$

In Stock, only 3 left!

0

6

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 1651084

HOUSING ASSEMBLY, w/Bearings (Incl. Ref. No. 2)

$

$

Not available

2

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, only 1 left!

0

8

Simplicity 1666145ASM

CLAMP

$38.99

$

Usually ships in 2-12 days

0

9

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 4 left!

0

10

Simplicity 1676738ASM

GUARD, Chain

$67.99

$

Usually ships in 2-12 days

0

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 1928352SM

LOCKNUT, Flange, 5/16-18
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

15

Simplicity 1930540SM

SETSCREW, 5/16-18 X 1/2

$4.49

$

In Stock, Qty 13

0

16

Simplicity 1934654SM

CAPSCREW, Hex, Whizlock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 15

0

17

Simplicity 1960244SM

CAPSCREW, Hex, Whizlock, 3/8-16 x 2-3/4
(Superseded to 704037)

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 11

0
