1694012 - Simplicity Baron Lawn Tractor, 18hp Wheels & Tires Group Parts Diagram

Baron Lawn Tractor, 18hp

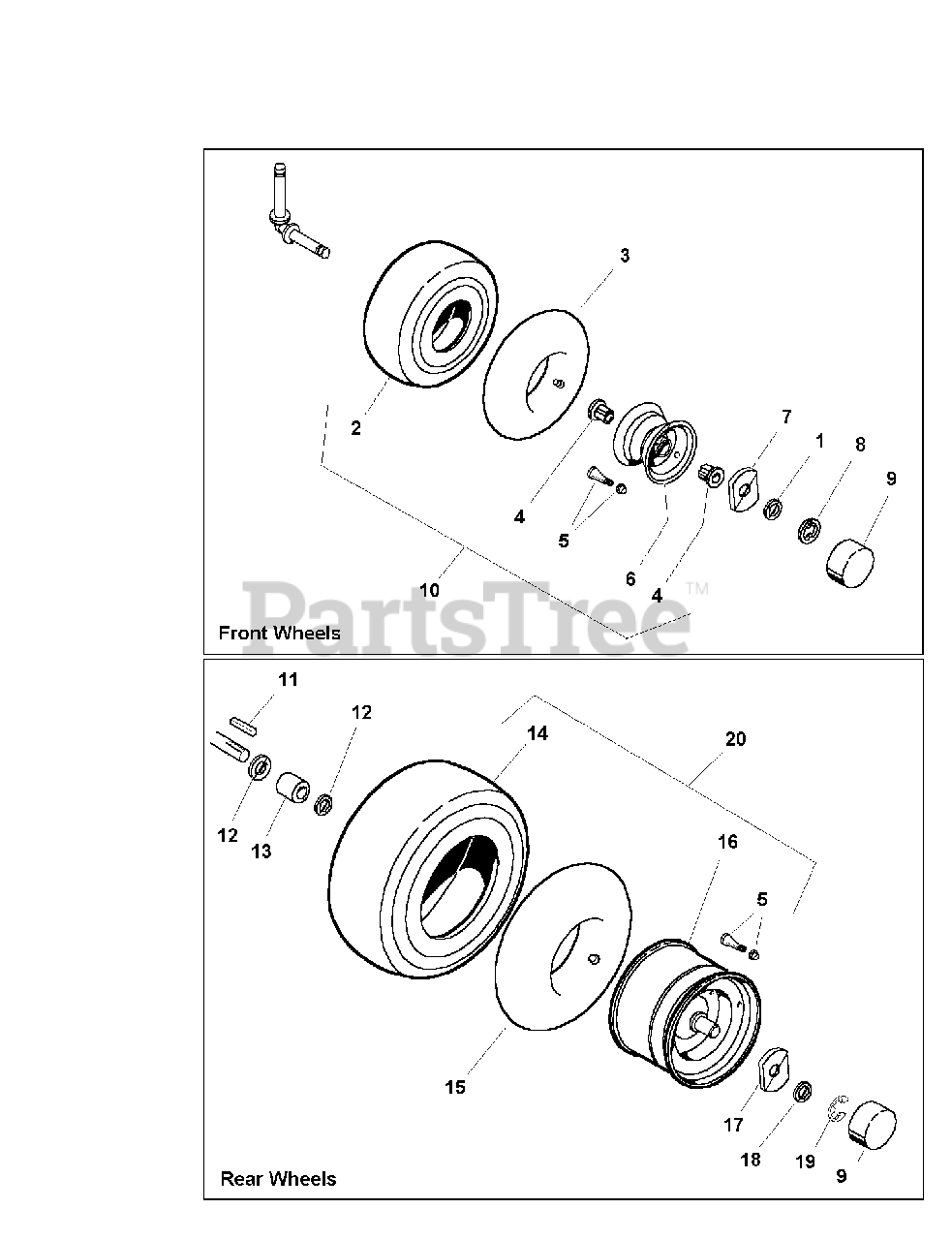

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1919394SM

WASHER
(Superseded to 703149)

$3.49

$

In Stock, only 1 left!

0

2

Simplicity 1722838SM

TIRE, 15 X 6.00, Super Turf

$87.99

$

Usually ships in 2-12 days

0

3

Simplicity 1664090SM

TUBE, 4.10/3.50 - 6

$26.99

$

In Stock, only 1 left!

0

4

Simplicity 1717056SM

BEARING

$33.99

$

Usually ships in 2-12 days

0

5

Simplicity 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 1722837SM

WHEEL, 4.50 X 6.00, (Includes Ref. No. 4)

$

$

Not available

7

Simplicity 1722726SM

WASHER, Special

$5.49

$

In Stock, only 3 left!

0

8

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 18

0

9

Simplicity 1722676SM

CAP, Hub

$5.49

$

In Stock, Qty 15

0

10

Simplicity 1722065SM

WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 2, 4, 5 & 6)
(Superseded to 1732202SM)

$213.99

$

In Stock, only 3 left!

0

11

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

12

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 13

0

13

Simplicity 1709527SM

SPACER

$6.99

$

Usually ships in 2-12 days

0

14

Simplicity 1722826SM

TIRE, 20 X 10.00 Super Turf

$170.99

$

Usually ships in 2-12 days

0

15

Simplicity 2173477SM

TUBE, 20 X 8.00 - 10

$85.99

$

Usually ships in 2-12 days

0

16

Simplicity 1722835SM

WHEEL, 7.00 x 7.96

$

$

Not available

17

Simplicity 1722717SM

WASHER, Special

$7.99

$

In Stock, only 1 left!

0

18

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0

19

Simplicity 2827794SM

RING, E Retaining

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 1721694SM

WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 5, 14 & 16)

$274.99

$

Usually ships in 2-12 days

0
