1694312 - Snapper Rear Weight Carrier Carrier Group - Rear Weight Parts Diagram

Rear Weight Carrier

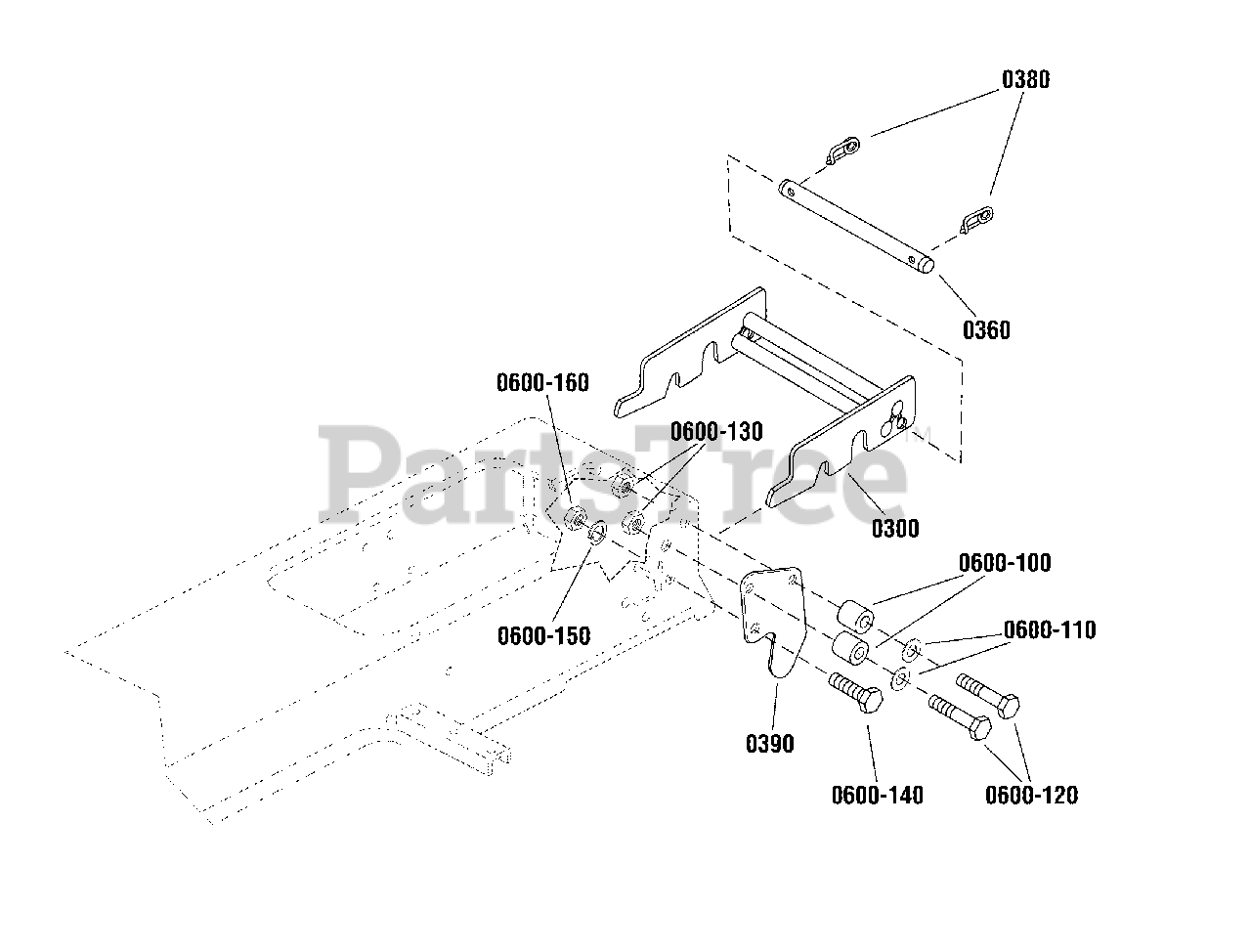

Carrier Group - Rear Weight Parts Diagram

  • Title

0300

Snapper 1723087ASM

HITCH ASSEMBLY

$

$

Not available

0360

Snapper 1719300SM

ROD, Lock

$

$

Not available

0380

Snapper 2176012SM

CLIP, Pin, Safety
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0390

Snapper 1723044ASM

PLATE, Side

$

$

Not available

--

Snapper 1660791

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0600-100

Snapper 1668662SM

SPACER

$32.99

$

Usually ships in 2-12 days

0

0600-110

Snapper 1924361SM

WASHER
(Superseded to 703451)

$4.49

$

Usually ships in 2-12 days

0

0600-120

Snapper 1960462SM

CAPSCREW, 1/2-13 x 2-1/2
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0600-130

Snapper 1960355SM

NUT, Hex, ESNA 1/2-13
(Superseded to 703567)

$4.49

$

In Stock, only 2 left!

0

0600-140

Snapper 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

0600-150

Snapper 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

0600-160

Snapper 1916950SM

NUT, Hex 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 12

0

--

Snapper 1694312SM

KIT, Weight Carrier
(Superseded to 1696323YP)

$239.99

$

In Stock, only 2 left!

0
