1694543 - Snapper Wide Body Cart Collector Hitch & Tube Kit Hitch & Tube Group Parts Diagram

Wide Body Cart Collector Hitch & Tube Kit

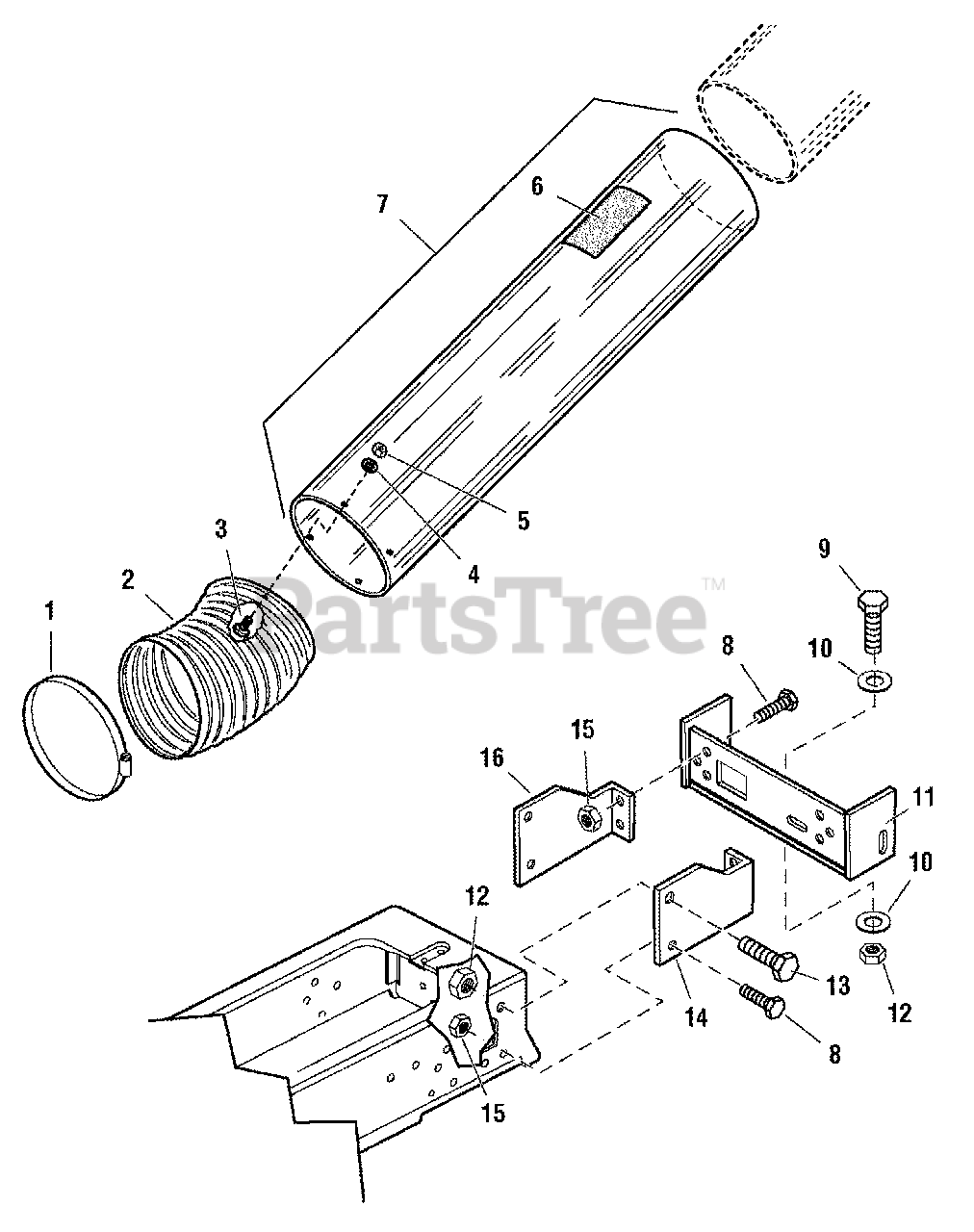

Hitch & Tube Group Parts Diagram

  • Title

1

Snapper 1679896SM

CLAMP, Hose 6", Band Type

$11.99

$

In Stock, only 1 left!

0

2

Snapper 1679895SM

HOSE, Vac Col, 6 x 12

$164.99

$

Usually ships in 2-12 days

0

3

Snapper 1930531SM

SCREW, Truss Head, Phillips, #10-32 x 1/2

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 1910531SM

WASHER, #10-32

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 1928919SM

NUT, Hex Washer, #10-32

$3.99

$

In Stock, only 1 left!

0

6

Snapper 1675766SM

DECAL, Cleaning Instructions

$

$

Not available

7

Snapper 1700773SM

TUBE & DECAL ASSEMBLY (Includes Ref. No.6)
(Superseded to 1700774YP)

$231.99

$

Usually ships in 2-12 days

0

8

Snapper 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

9

Snapper 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 1918431SM

WASHER, 1/2
(Superseded to 704011)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 1723883SM

HITCH, Cart

$

$

Not available

12

Snapper 1922134SM

NUT, Hex Centerlock, 1/2/2013
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

13

Snapper 1923114SM

CAPSCREW, Hex Head, 1/2-13 x 1

$3.99

$

In Stock, only 2 left!

0

14

Snapper 1723885SM

ADAPTER, Hitch RH
(Superseded to 1723885ASM)

$52.99

$

Usually ships in 2-12 days

0

15

Snapper 1930651SM

NUT, Hex Centerlock, 3/8-16

$

$

Not available

16

Snapper 1723884SM

ADAPTER, Hitch LH
(Superseded to 1723884ASM)

$47.99

$

Usually ships in 2-12 days

0
