1694676 - Simplicity Deluxe Hard Snow Cab Rear Window Group (4283rwg) Parts Diagram

Deluxe Hard Snow Cab

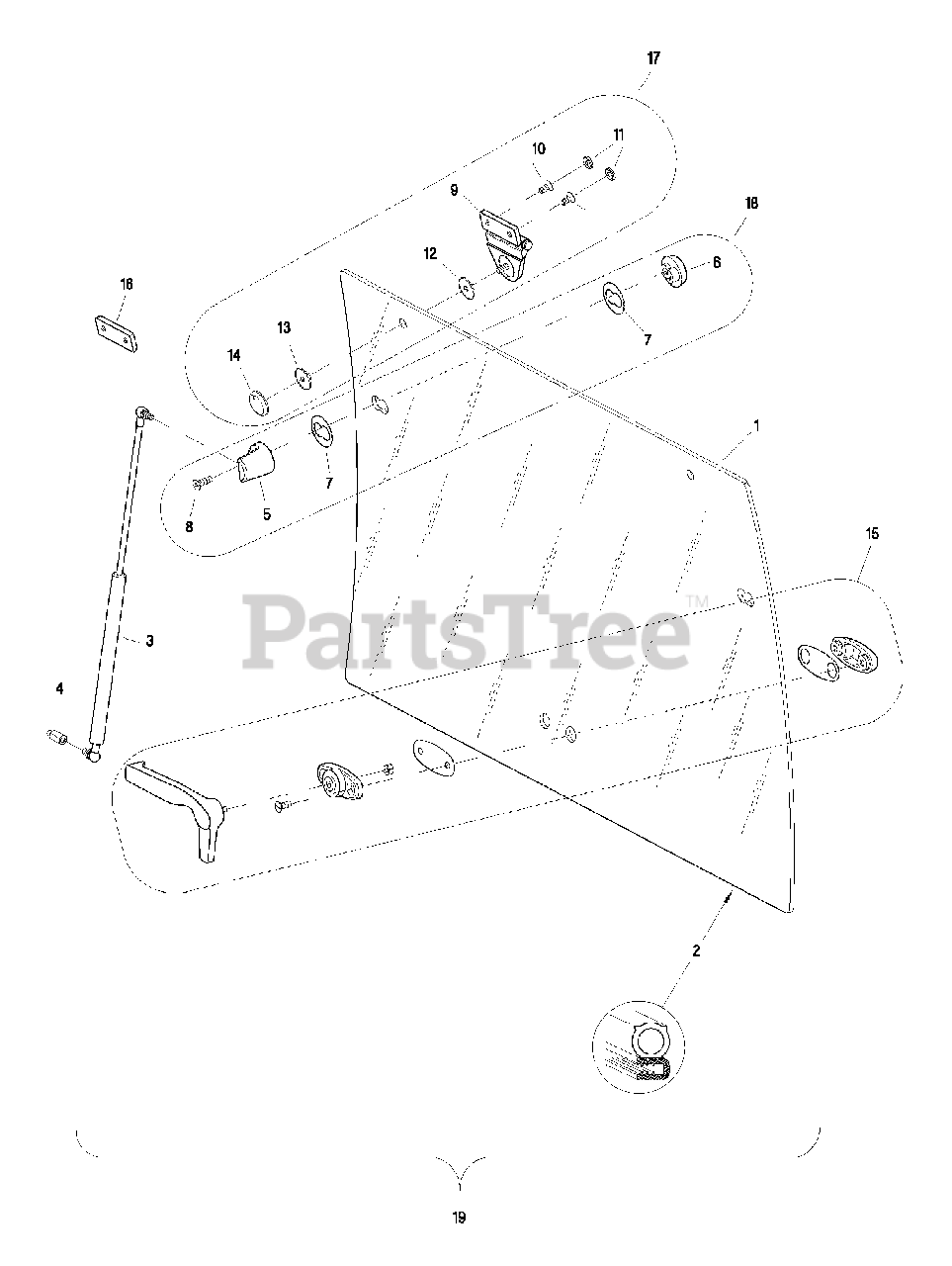

Rear Window Group (4283rwg) Parts Diagram

  • Title

1

Simplicity 1721352SM

WINDOW, Rear

$658.99

$

Usually ships in 2-12 days

0

2

Simplicity 1721325SM

PROFILE SEALING, 10 ft.

$

$

Not available

3

Simplicity 1721333SM

GASLIFT, 500MM/200N

$245.99

$

Usually ships in 2-12 days

0

4

Simplicity 1721313SM

SOCKET, GASLIFT

$

$

Not available

5

Simplicity 1721334SM

BEARING, Inner Gaslift
(Superseded to 1721334ASM)

$24.99

$

Usually ships in 2-12 days

0

6

Simplicity 1721335SM

BEARING, Outer Gaslift

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 1721431SM

WASHER, Rubber

$

$

Not available

8

SCREW, Flat Hd. Slotted, M8 x 1 1/4 x 25

$

$

Not available

9

Simplicity 1721336SM

HINGE

$61.99

$

Usually ships in 2-12 days

0

10

SCREW, Flat Head Socket, M8 x 1 1/4 x 30

$

$

Not available

11

Simplicity 1721433SM

SCREW, Cover

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 1721427SM

WASHER, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721428SM

WASHER, Rubber with Socket

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1721429SM

WASHER, with Bushing, M8

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1721359SM

HANDLE, Right Complete

$176.99

$

Usually ships in 2-12 days

0

15

Simplicity 1721364SM

HANDLE, Left Complete

$176.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721347SM

INNER BRACKET, for Hinge

$7.99

$

Usually ships in 2-12 days

0

17

Simplicity 1721348SM

SET HINGE, (Includes Ref. 15 - 20)

$32.99

$

Usually ships in 2-12 days

0

18

Simplicity 1721349SM

SET GASSPRING SOCKET, (Includes Ref. 9 - 12)

$23.99

$

Usually ships in 2-12 days

0

19

Simplicity 1721363SM

WINDOW, Rear Complete, (Includes Ref. 2 - 20)

$1886.99

$

Usually ships in 2-12 days

0
