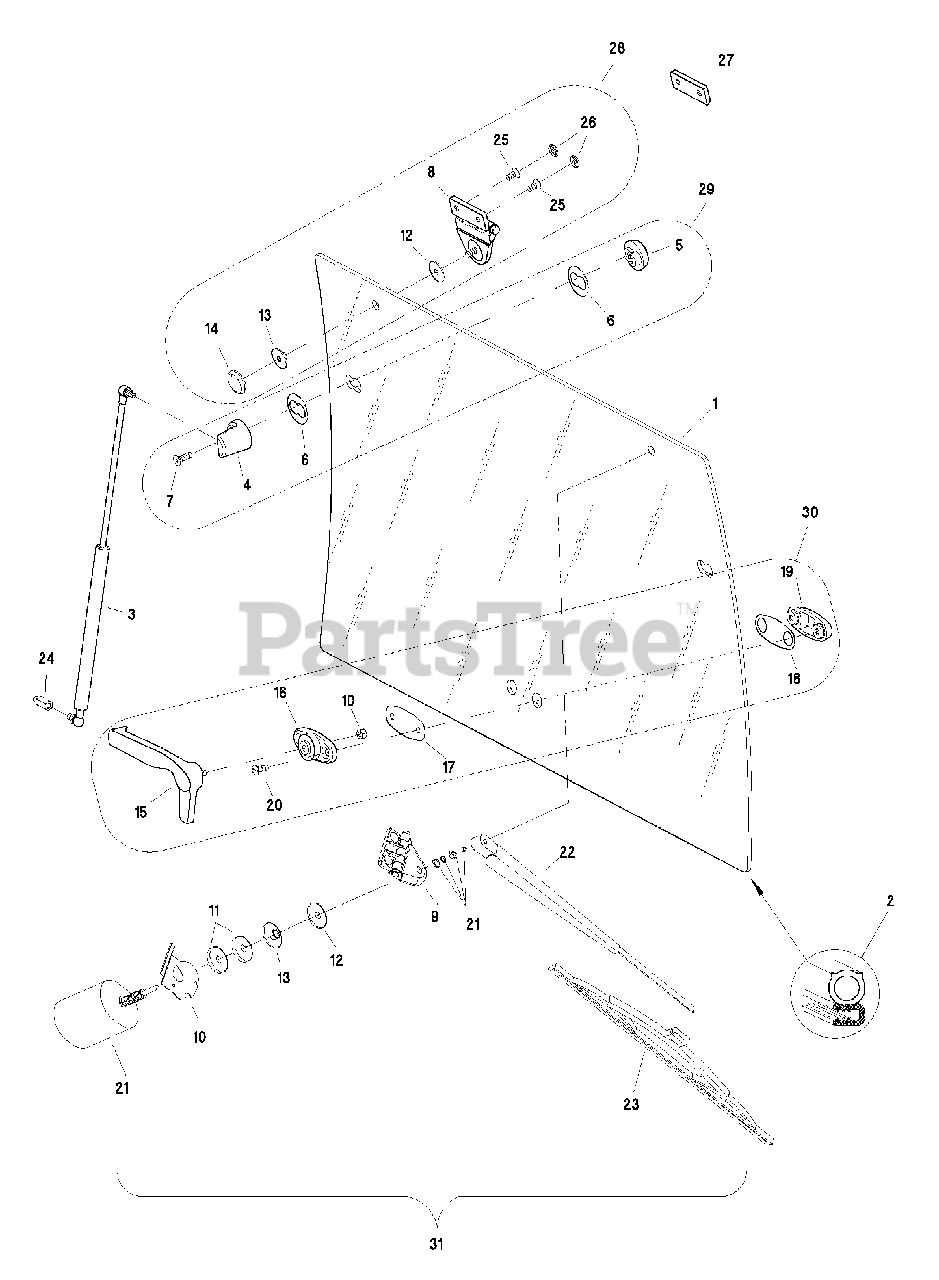

1694676 - Simplicity Deluxe Hard Snow Cab Windshield Group (4283wg) Parts Diagram

Deluxe Hard Snow Cab

Windshield Group (4283wg) Parts Diagram

  • Title

1

Simplicity 1721331SM

WINDSHIELD

$900.99

$

Usually ships in 2-12 days

0

2

Simplicity 1721325SM

PROFILE SEALING, 11 ft. 2 in.

$

$

Not available

3

Simplicity 1721333SM

GASLIFT, 500MM/200N

$245.99

$

Usually ships in 2-12 days

0

4

Simplicity 1721334SM

BEARING, Inner Gaslift
(Superseded to 1721334ASM)

$24.99

$

Usually ships in 2-12 days

0

5

Simplicity 1721335SM

BEARING, Outer Gaslift

$16.99

$

Usually ships in 2-12 days

0

6

Simplicity 1721431SM

WASHER, Rubber

$

$

Not available

7

SCREW, Flat Hd. Socket, M8 x 1 1/4 x 25

$

$

Not available

8

Simplicity 1721336SM

PVC HINGE, Complete

$61.99

$

Usually ships in 2-12 days

0

9

Simplicity 1721337SM

HINGE, Complete, Drilled

$45.99

$

Usually ships in 2-12 days

0

10

Fuse, Wipermotor

$

$

Not available

11

Simplicity 1721432SM

WASHER, Plastic

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 1721427SM

WASHER, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1721428SM

WASHER, Rubber with Socket

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1721429SM

WASHER, with Bushing, M8

$7.99

$

Usually ships in 2-12 days

0

15

Simplicity 1721338SM

HANDLE, Lock

$61.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721339SM

SOCKET, Inner Handle

$

$

Not available

17

Simplicity 1721340SM

PAD

$

$

Not available

18

Simplicity 1721341SM

PAD

$

$

Not available

19

Simplicity 1721342SM

SOCKET, Outer Handle

$

$

Not available

20

SCREW, Flat Hd. Slotted, M8 x 1 1/4 x 20

$

$

Not available

21

Simplicity 1687109SM

MOTOR, Wiper 85/12V, (Includes washers)

$

$

Not available

22

Simplicity 1687109SM

ARM, Wiper 300-400

$

$

Not available

23

Simplicity 1721345SM

WIPER

$35.99

$

Usually ships in 2-12 days

0

24

Simplicity 1721313SM

GASLIFT SOCKET

$

$

Not available

25

SCREW, Flat Hd. Slotted, M8 x 1 1/4 x 25

$

$

Not available

26

Simplicity 1721433SM

SCREW CAP

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 1721347SM

INNER BRACKET, Hinge

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 1721348SM

SET HINGE, (Includes Ref. 6 - 11)

$32.99

$

Usually ships in 2-12 days

0

29

Simplicity 1721349SM

SET GASSPRING SOCKET, (Includes Ref. 26 - 29)

$23.99

$

Usually ships in 2-12 days

0

30

Simplicity 1721350SM

SET LOCKING, (Includes Ref. 13 - 18)

$

$

Not available

31

Simplicity 1721351SM

WINDSHIELD, Complete (Includes Ref. 2 - 30)

$4103.99

$

Usually ships in 2-12 days

0
