1694764 - Simplicity Stallion Zero-Turn Mower, 27hp Kohler Wheels & Tires Group (4235wtg) Parts Diagram

Stallion Zero-Turn Mower, 27hp Kohler

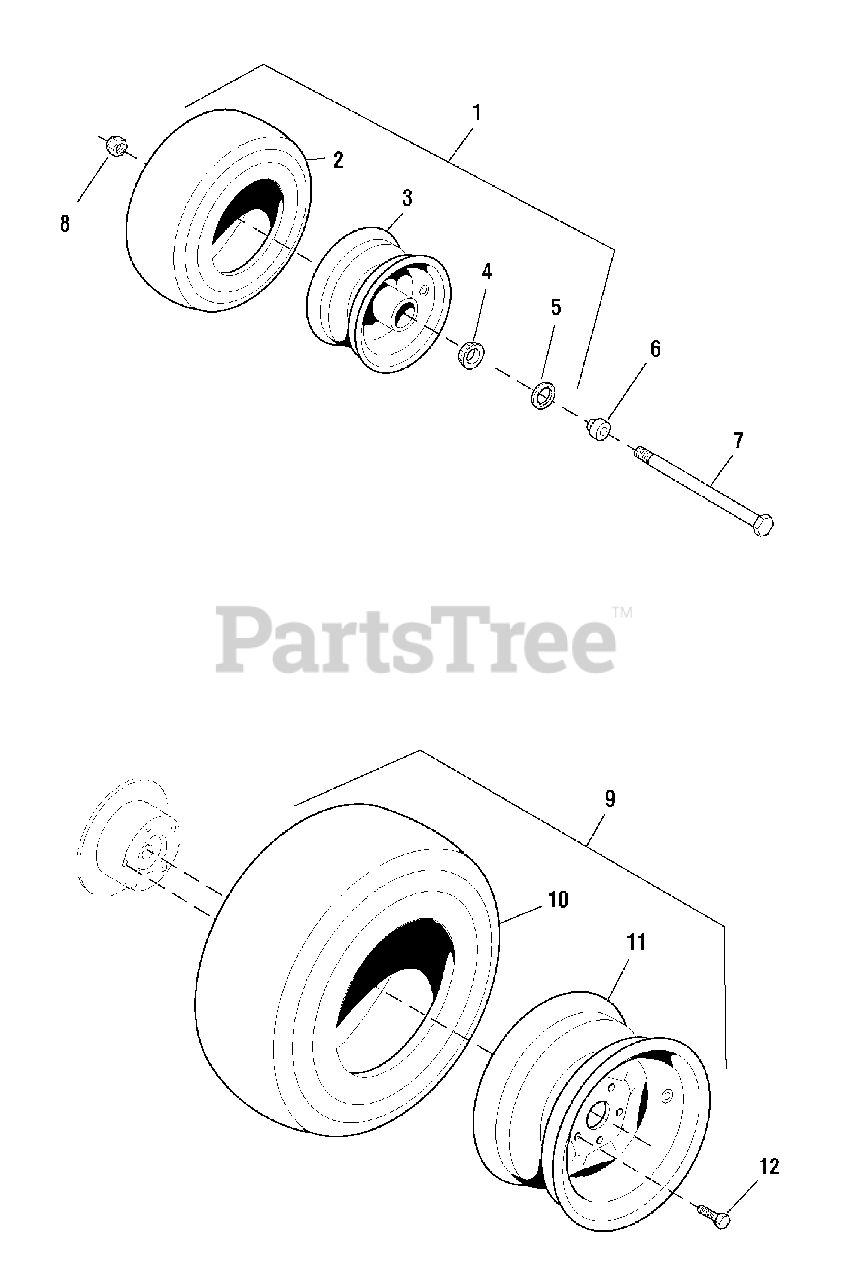

Wheels & Tires Group (4235wtg) Parts Diagram

  • Title

1

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete

Note: (includes Ref. No. 2 - 5 & 13)

$168.99

$

In Stock, only 1 left!

0

2

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

$

$

Not available

3

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete

Note: (includes Ref. No. 4 & 5)

$102.99

$

In Stock, only 1 left!

0

4

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (2 per tire)

$12.99

$

In Stock, only 1 left!

0

5

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

In Stock, only 1 left!

0

6

Simplicity 5047103SM

ADAPTER, Caster Wheel

$10.99

$

In Stock, only 1 left!

0

7

Simplicity 5025017X60SM

CAPSCREW, Hex Hd, 1-2/13 x 7-1/2

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1-2/13
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

9

Simplicity 5023243SM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.5 x 12, Complete

$330.99

$

Usually ships in 2-12 days

0

10

Simplicity 50232431

TIRE, Rear, 23 x 10.5 x 12

$

$

Not available

11

Simplicity 5022396S2

WHEEL ASSEMBLY, Rear, 21 x 8.5

$

$

Not available

12

Simplicity 5022215SM

WHEEL LUG, 1/2 x 1-5/8

$9.99

$

In Stock, only 1 left!

0

13

Simplicity 5022631SX4SM

BEARING, RACE

Note: (Not shown)

$10.99

$

In Stock, only 2 left!

0
