1695464 - Simplicity Turbo & Triple Collector for 54" Mower 54" Turbo Vac - Drive Parts Diagram

Turbo & Triple Collector for 54" Mower

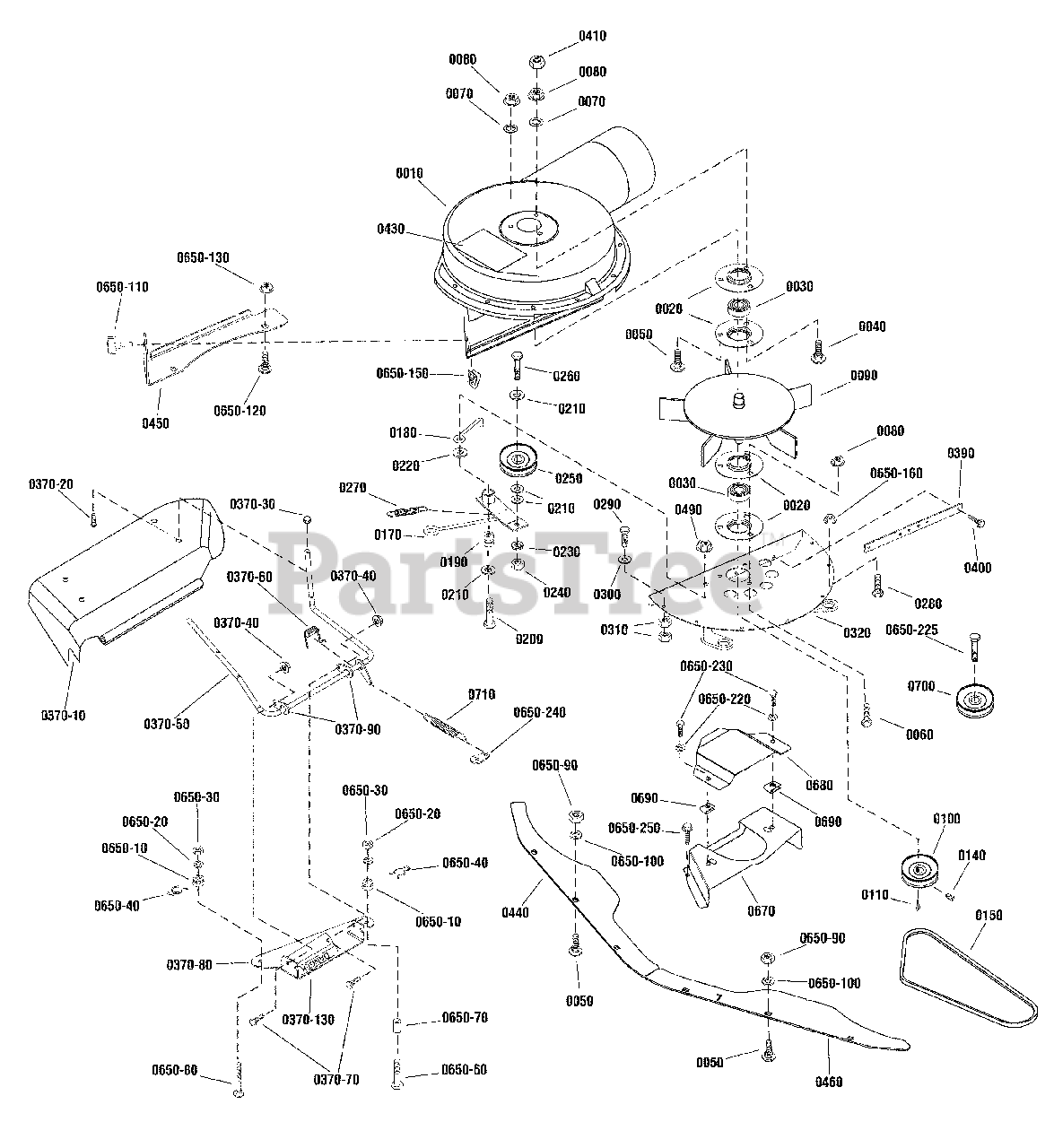

54" Turbo Vac - Drive Parts Diagram

  • Title

0010

Simplicity 1720742

TURBO HOUSING, Fan
(Superseded to 1720892SM)

$228.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1665982

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

0030

Simplicity 2108202

BEARING
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0040

Simplicity 1960223

BOLT, Carriage, 5/16 - 18 x 1 1/4
(Superseded to 703446)

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 1931333

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 1921332

CAPSCREW, 5/16 - 18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

0070

Simplicity 1933988

PUSH NUT, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 1927557

NUT, Flange Lock, 5/16 - 18
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

0090

Simplicity 1706631A

FAN ASSEMBLY
(Superseded to 1706631ASM)

$384.99

$

In Stock, only 1 left!

0

0100

Simplicity 1736092

PULLEY ASSEMBLY
(Superseded to 1736092SM)

$43.99

$

In Stock, only 1 left!

0

0110

Simplicity 2860403

KEY, Woodruff, #61
(Superseded to 2860403SM)

$10.99

$

In Stock, only 1 left!

0

0140

Simplicity 1960619

SCREW, Set Torx, 5/16 - 18 x 5/16
(Superseded to 1960619SM)

$3.49

$

In Stock, only 2 left!

0

0150

Simplicity 1733051

V-BELT, 4L 36.5
(Superseded to 1733051SM)

$40.99

$

In Stock, only 1 left!

0

0170

Simplicity 1720934A

IDLER ARM ASSEMBLY
(Superseded to 1720934ASM)

$53.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1704419

BELT STOP
(Superseded to 1704419SM)

$7.49

$

Usually ships in 2-12 days

0

0190

Simplicity 1666114

BUSHING
(Superseded to 703140)

$11.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1923701

CAPSCREW, 3/8 - 16 x 2
(Superseded to 703589)

$4.49

$

In Stock, Qty 7

0

0210

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0220

Simplicity 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 6

0

0230

Simplicity 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

0240

Simplicity 1916950

NUT, Hex, 3/8 - 16
(Superseded to 703577)

$4.49

$

In Stock, Qty 9

0

0250

Simplicity 2174561

PULLEY, Idler
(Superseded to 2174561SM)

$53.99

$

In Stock, only 4 left!

0

0260

Simplicity 1921969

CAPSCREW, Hex Head, 3/8 - 16 x 1-1/2, G5
(Superseded to 703406)

$4.99

$

In Stock, Qty 7

0

0270

Simplicity 2174896

SPRING, Extension
(Superseded to 2174896SM)

$20.99

$

In Stock, only 2 left!

0

0280

Simplicity 1923341

CAPSCREW, Hex Head, 1/4 - 20 x 3/4, G5
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

0290

Simplicity 1921961

CAPSCREW, Hex Head, 1/4 - 20 x 1-1/4, G5
(Superseded to 1921961SM)

$4.49

$

In Stock, only 3 left!

0

0300

Simplicity 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0310

Simplicity 1920397

NUT, Hex Lock ESNA, 1/4 - 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1720721A

PLATE ASSEMBLY
(Superseded to 1720721ASM)

$140.99

$

Usually ships in 2-12 days

0

--

Simplicity 1736055

DEFLECTOR ASSEMBLY

Note: (Not a serviceable part )

$

$

Not available

0370-10

Simplicity 1736054

DEFLECTOR

$

$

Not available

0370-20

Simplicity 1960404

SCREW, 10 - 24 x 3/4
(Superseded to 1960404SM)

$3.99

$

In Stock, only 4 left!

0

0370-30

Simplicity 1933895

NUT, ESNA, Nylon 10 - 24

$

$

Not available

0370-40

Simplicity 1960694

NUT, ESNA, Flange Lock 1/4 - 20
(Superseded to 703463)

$4.49

$

In Stock, only 3 left!

0

0370-50

Simplicity 1736051

ROD ASSEMBLY, Deflector

$

$

Not available

0370-60

Simplicity 7101082

SPRING, Torsion
(Superseded to 7101082SM)

$8.49

$

Usually ships in 2-12 days

0

0370-70

Simplicity 1921960

SCREW, Hex HD 1/4 - 20 x 1
(Superseded to 1921960SM)

$3.49

$

In Stock, only 2 left!

0

0370-80

Simplicity 1738095A

DEFLECTOR, Mounting Plate

$

$

Not available

0370-90

Simplicity 1720921

TAB, Locking
(Superseded to 1720921SM)

$7.49

$

Usually ships in 2-12 days

0

0370-130

Simplicity 1704277

DECAL, Danger
(Superseded to 7101665YP)

$14.99

$

In Stock, only 1 left!

0

0390

Simplicity 1706630A

STRAP
(Superseded to 1706630ASM)

$9.49

$

In Stock, only 1 left!

0

0400

Simplicity 1927429

SCREW, Hex Washer Head, Taptite 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

0410

Simplicity 1919438

NUT, Hex Lock, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 12

0

0430

Simplicity 1700259

DECAL, Danger Thrown Objects
(Superseded to 1700259SM)

$27.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1721023A

BAFFLE, Front R.H.
(Superseded to 1721023ASM)

$48.99

$

In Stock, only 1 left!

0

0450

Simplicity 1736056A

PLATE, Support

$

$

Not available

0460

Simplicity 1720613A

BAFFLE, Front L.H.
(Superseded to 1720613BMYP)

$96.99

$

In Stock, only 1 left!

0

0490

Simplicity 1930645

NUT, Hex Two-Way Lock Flange, 3/8 - 16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0650

*HARDWARE BAG

Note: (Incl. Ref. 0650-10 through 0650-250)

$

$

Not available

0650-10

Simplicity 1720718

PIN, Pilot
(Superseded to 1720718SM)

$43.99

$

Usually ships in 2-12 days

0

0650-20

Simplicity 1916964

WASHER, Lock Spring
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0650-30

Simplicity 1916622

NUT, Hex 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

0650-40

Simplicity 1704628

PIN, Quick
(Superseded to 1704628SM)

$4.49

$

In Stock, only 3 left!

0

0650-60

Simplicity 1921159

CAPSCREW, Hex Head, 1/4 - 20 x 2-1/4, G5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

0650-70

Simplicity 1720978

SPACER
(Superseded to 1720978SM)

$20.99

$

Usually ships in 2-12 days

0

0650-80

Simplicity 1931320

BOLT, Carriage, 1/4 - 20 x 1-1/4
(Superseded to 703178)

$3.99

$

In Stock, only 2 left!

0

0650-90

Simplicity 1917372

NUT, Hex, 5/16 - 18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0650-100

Simplicity 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0650-110

Simplicity 5022319

KNOB, Plastic
(Superseded to 5022319SM)

$7.99

$

Usually ships in 2-12 days

0

0650-120

Simplicity 1931333

BOLT, Round Head, Short Neck 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0650-130

Simplicity 1927557

NUT, Hex Flange, 5/16-18 Whiz Lock
(Superseded to 703330)

$4.99

$

In Stock, Qty 8

0

0650-150

Simplicity 1928701

NUT, Push On Retainer, 3/16 - 18
(Superseded to 1928701SM)

$5.49

$

In Stock, Qty 8

0

0650-160

Simplicity 1960294

NUT, Hex Flange, 1/4-20 Whiz
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

0650-220

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

0650-225

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

0650-230

Simplicity 5025015X18

BOLT, Hex, 7/16-14 x 2-1/4
(Superseded to 2827120SM)

$5.99

$

In Stock, only 1 left!

0

0650-240

Simplicity 1720921

TAB, Locking
(Superseded to 1720921SM)

$7.49

$

Usually ships in 2-12 days

0

0650-250

Simplicity 1927428

SCREW, Hex Washer Head Taptite 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

0670

Simplicity 5403904D

PLATE, Guard, Mower Deck 54
(Superseded to 5403904DYP)

$56.99

$

In Stock, only 1 left!

0

0680

Simplicity 5403905D

PLATE, Guard, Blower Pulley
(Superseded to 5403905DYP)

$39.99

$

Usually ships in 2-12 days

0

0690

Simplicity 5022308

CLIP, Body 5/16-18
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

0700

Simplicity 1720737

Pulley
(Superseded to 1720737SM)

$67.99

$

Usually ships in 2-12 days

0

0710

Simplicity 1719590

SPRING, Extension
(Superseded to 1719590SM)

$

$

Not available
