1695591 - Simplicity 46" Mower Deck 46" & 52" Mower Deck - Clutch & Support Group Parts Diagram

46" Mower Deck

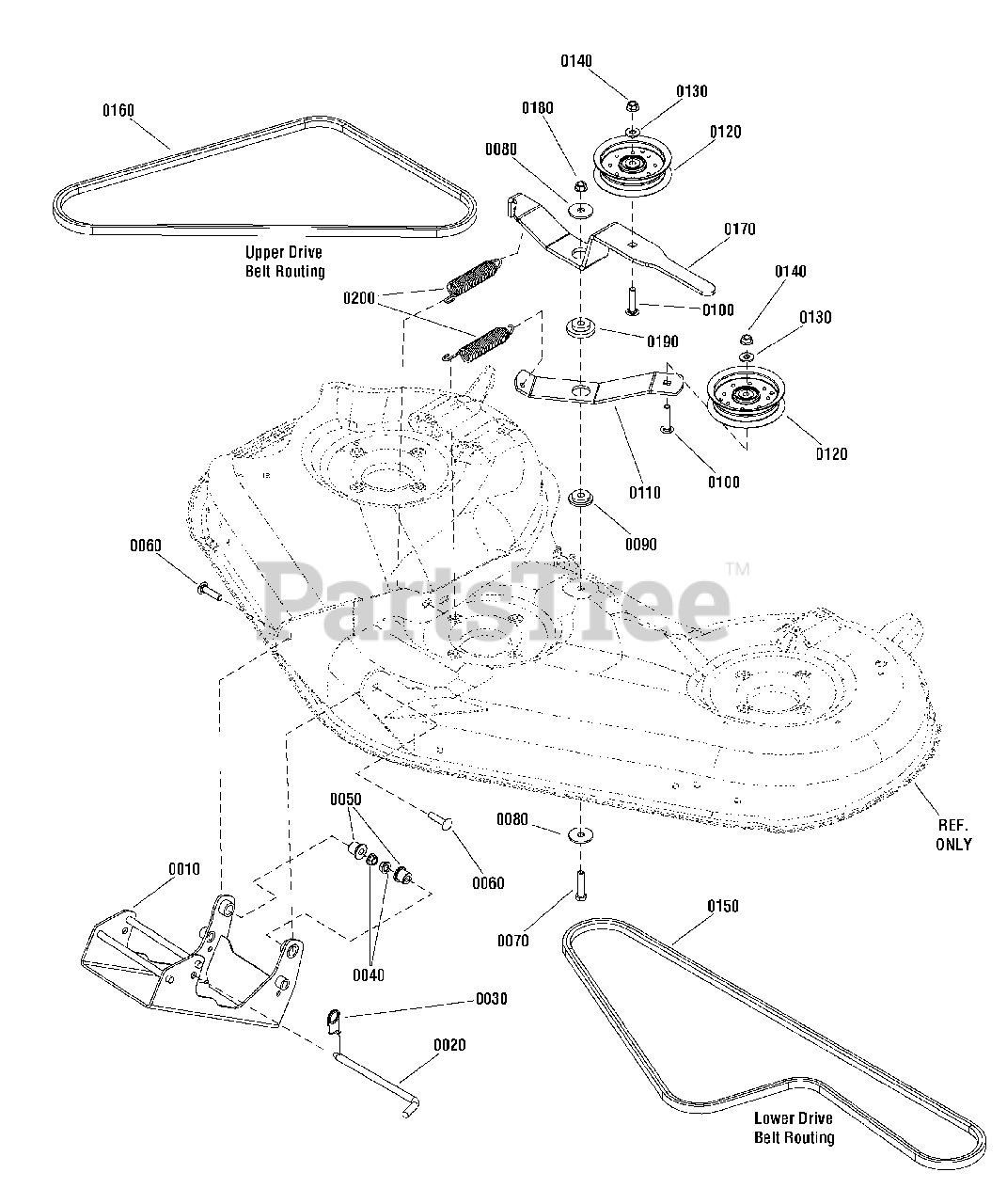

46" & 52" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 1737046A

HITCH ASSEMBLY, Mower
(Superseded to 1737046ASM)

$168.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1731414

ROD, Latch, 1/2 Dia. X 9 Lg (42" Mower)
(Superseded to 1731414SM)

$14.99

$

In Stock, only 2 left!

0

0030

Simplicity 2176012

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1960687

NUT, Hex Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 1736018

PIVOT, 3/4 OD x 3/4
(Superseded to 1736018SM)

$9.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7091945

BOLT, Carriage, 3/8 x 1-1/2, G5

$3.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0080

Simplicity 1924356

WASHER, 3/8, (13/32 ID x 1-1/2 OD
(Superseded to 703591)

$5.49

$

In Stock, Qty 9

0

0090

Simplicity 1714255

SPACER, 13/32 ID x 1-1/2 OD
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 6

0

0100

Simplicity 7091810

BOLT, Carriage, 3/8 x 1-3/4, G5
(Superseded to 703879)

$3.99

$

In Stock, Qty 13

0

0110

Simplicity 1735321A

ARM, Idler, Lower
(Superseded to 1735321AYP)

$39.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1736540

PULLEY, Idler, (46, 52" Mowers)
(Superseded to 1736540YP)

$35.99

$

In Stock, Qty 9

0

0130

Simplicity 7091528

WASHER, Flat,, 3/8 x 7/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 7091619

NUT, Hex Flange Locking, 3/8
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 1666801

V-BELT, HA, 80.10 (42" Mower)
(Superseded to 1666801SM)

$40.99

$

In Stock, only 2 left!

0

0160

Simplicity 1677468

V-BELT, HA, VAC COL, Drive, 65.10
(Superseded to 1677468SM)

$40.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1739585A

ARM, Idler, Upper
(Superseded to 1739585AYP)

$73.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1930645

NUT, Hex Flange, Two Way Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0190

Simplicity 1739594

SPACER, 1-3/4 OD
(Superseded to 1739594YP)

$31.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1715772

SPRING, Extension, 1 OD x 5-1/4
(Superseded to 1715772SM)

$13.99

$

In Stock, Qty 7

0
