1695809 - Murray 46" Mower Deck (2010) 46" Mower Deck - Support Group Parts Diagram

46" Mower Deck

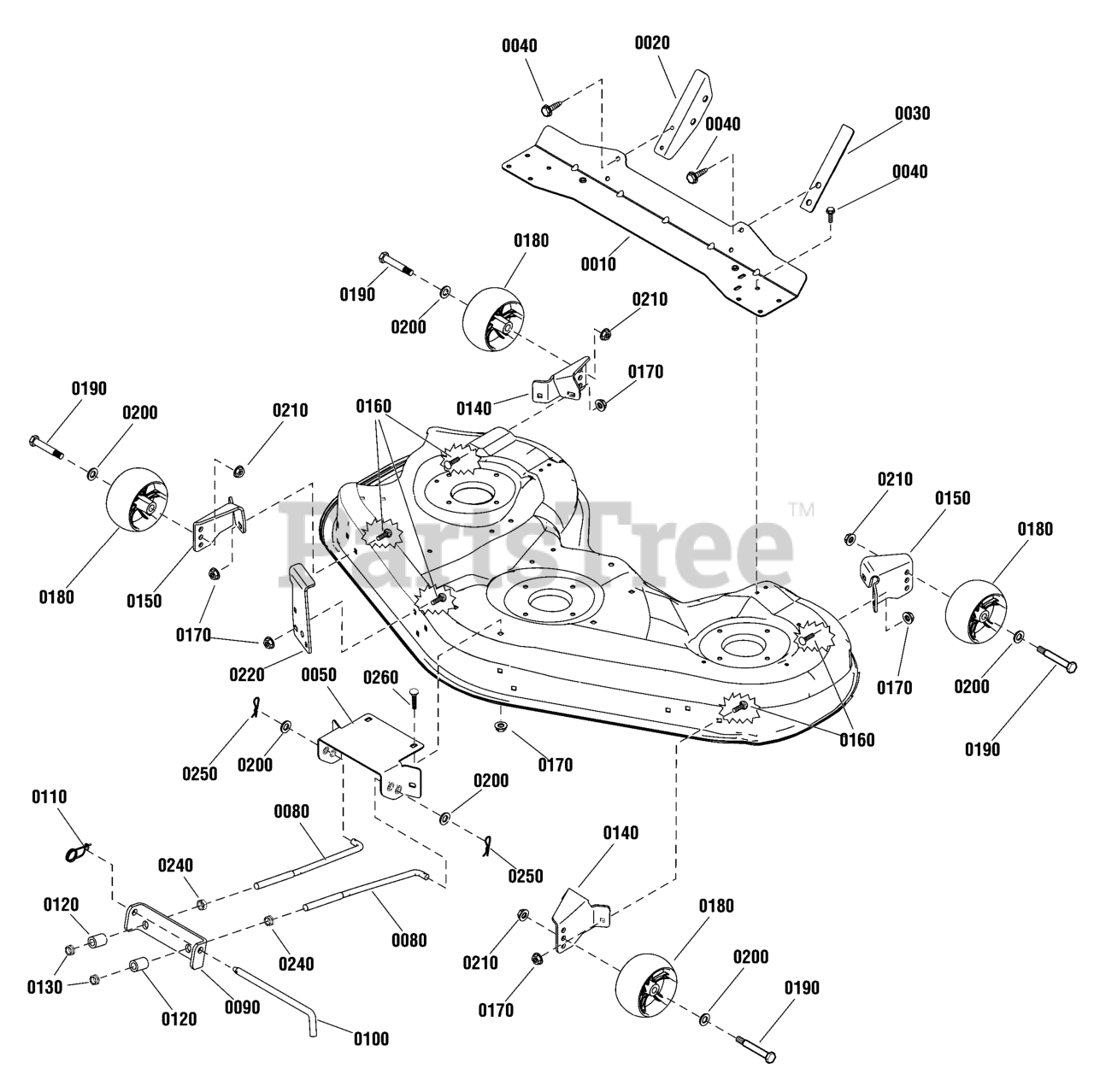

46" Mower Deck - Support Group Parts Diagram

  • Title

0010

Murray 1736070AYP

SUPPORT, Rear Cross

$84.99

$

Usually ships in 2-12 days

0

0020

Murray 1736072AYP

BRACKET, Rear Mower Pickup, R.H.

$19.99

$

Usually ships in 2-12 days

0

0030

Murray 1736073AYP

BRACKET, Rear Mower Pickup, L.H.

$11.99

$

Usually ships in 2-12 days

0

0040

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1736071AYP

HITCH, Front
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

0080

Murray 1736081YP

ROD, Front Bail

$12.99

$

In Stock, Qty 20+

0

0090

Murray 1737059AYP

HANGER, Front Mower

$17.99

$

In Stock, only 1 left!

0

0100

Murray 1731414SM

ROD, Latch

$14.99

$

In Stock, only 3 left!

0

0110

Murray 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1679166SM

SPACER, 1/2 x 7/8 x 1 3/16

$7.49

$

In Stock, Qty 10

0

0130

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, only 2 left!

0

0140

Murray 1736074AYP

BRACKET, R.H.
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 4 left!

0

0150

Murray 1736075AYP

BRACKET, L.H.
(Superseded to 1736075BMYP)

$14.99

$

Usually ships in 2-12 days

0

0160

Murray 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0170

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0180

Murray 1736896YP

WHEEL, Gauge

$16.99

$

In Stock, Qty 20+

0

0190

Murray 1736539YP

BOLT, Shoulder, 3/8-16 x 3-7/16

$8.99

$

In Stock, Qty 20+

0

0200

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0210

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0220

Murray 1736991AYP

UP STOP

$12.99

$

Usually ships in 2-12 days

0

0240

Murray 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, only 2 left!

0

0250

Murray 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0260

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0
