1695810 - Murray 46" Mower Deck 46" Mower Deck - Mulching Group Parts Diagram

46" Mower Deck

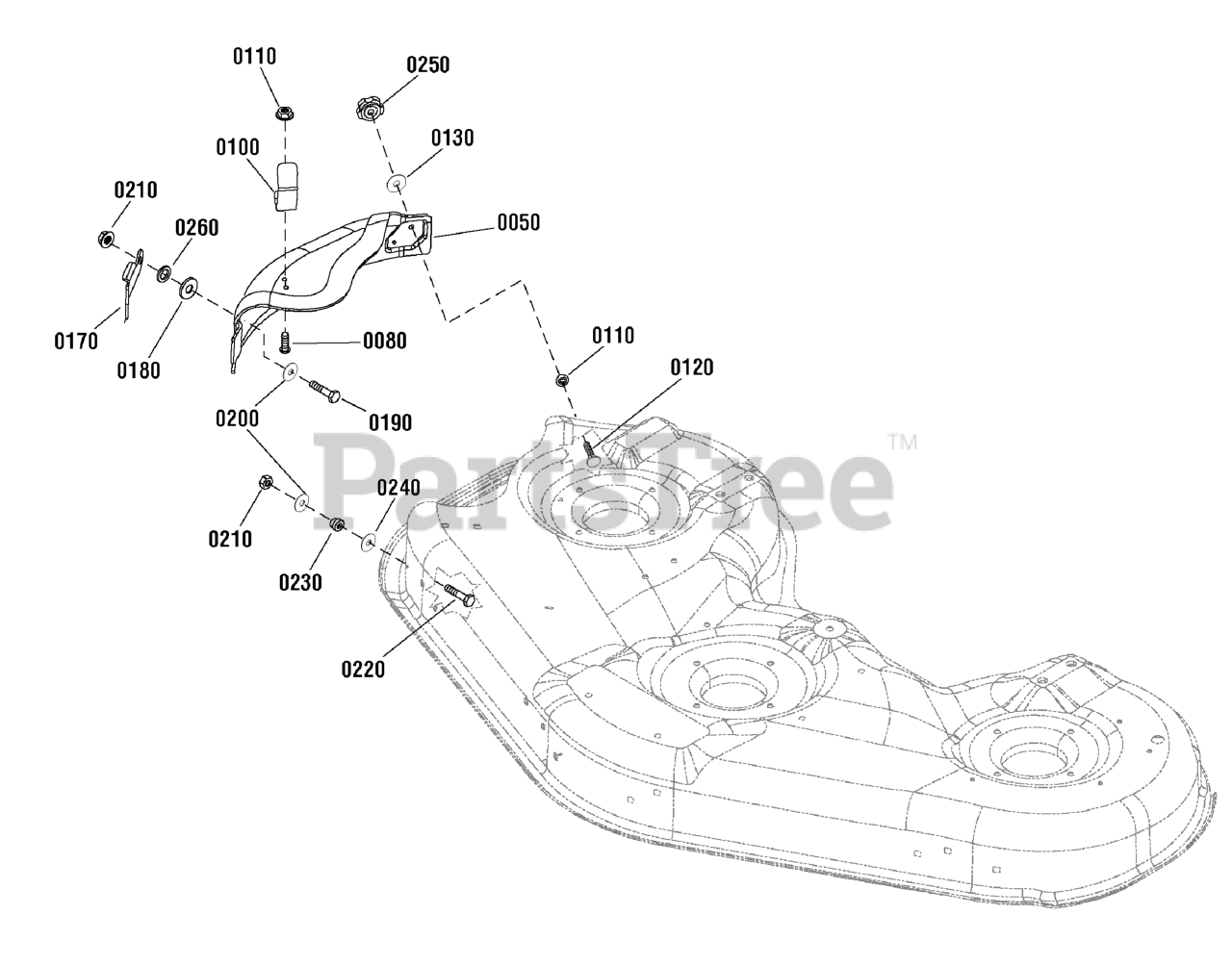

46" Mower Deck - Mulching Group Parts Diagram

  • Title

0050

Murray 1734777YP

COVER, Mulching
(Superseded to 1751018YP)

$39.99

$

In Stock, only 3 left!

0

0080

Murray 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0100

Murray 1737381AYP

BRACKET, Stop

$14.99

$

Usually ships in 2-12 days

0

0110

Murray 1960685SM

NUT, Hex, KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

0120

Murray 1960698SM

BOLT, Carriage, 1/4-20 x 1, G5
(Superseded to 703584)

$3.99

$

In Stock, only 3 left!

0

0130

Murray 7091627YP

WASHER, Flat, 9/32 X 1 X 1/8

$4.99

$

In Stock, Qty 11

0

0170

Murray 1737765AYP

LATCH, Boot

$32.99

$

In Stock, only 1 left!

0

0180

Murray 1708511SM

SPACER, 5/16 ID x 1 OD x 1/4

$7.49

$

Usually ships in 2-12 days

0

0190

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

0200

Murray 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

0210

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0220

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

0230

Murray 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

0240

Murray 1919384SM

WASHER, 3/8

$5.49

$

In Stock, only 2 left!

0

0250

Murray 1738295YP

KNOB, ESNA, 1/4-20

$7.49

$

In Stock, only 1 left!

0

0260

Murray 7026257MA

WASHER, Wave

$4.49

$

In Stock, only 2 left!

0
