1695872 - Brute 27" Snow Thrower, 11.5 Gross TP (2010) Gear Case Assembly (1751335YP) Parts Diagram

27" Snow Thrower, 11.5 Gross TP

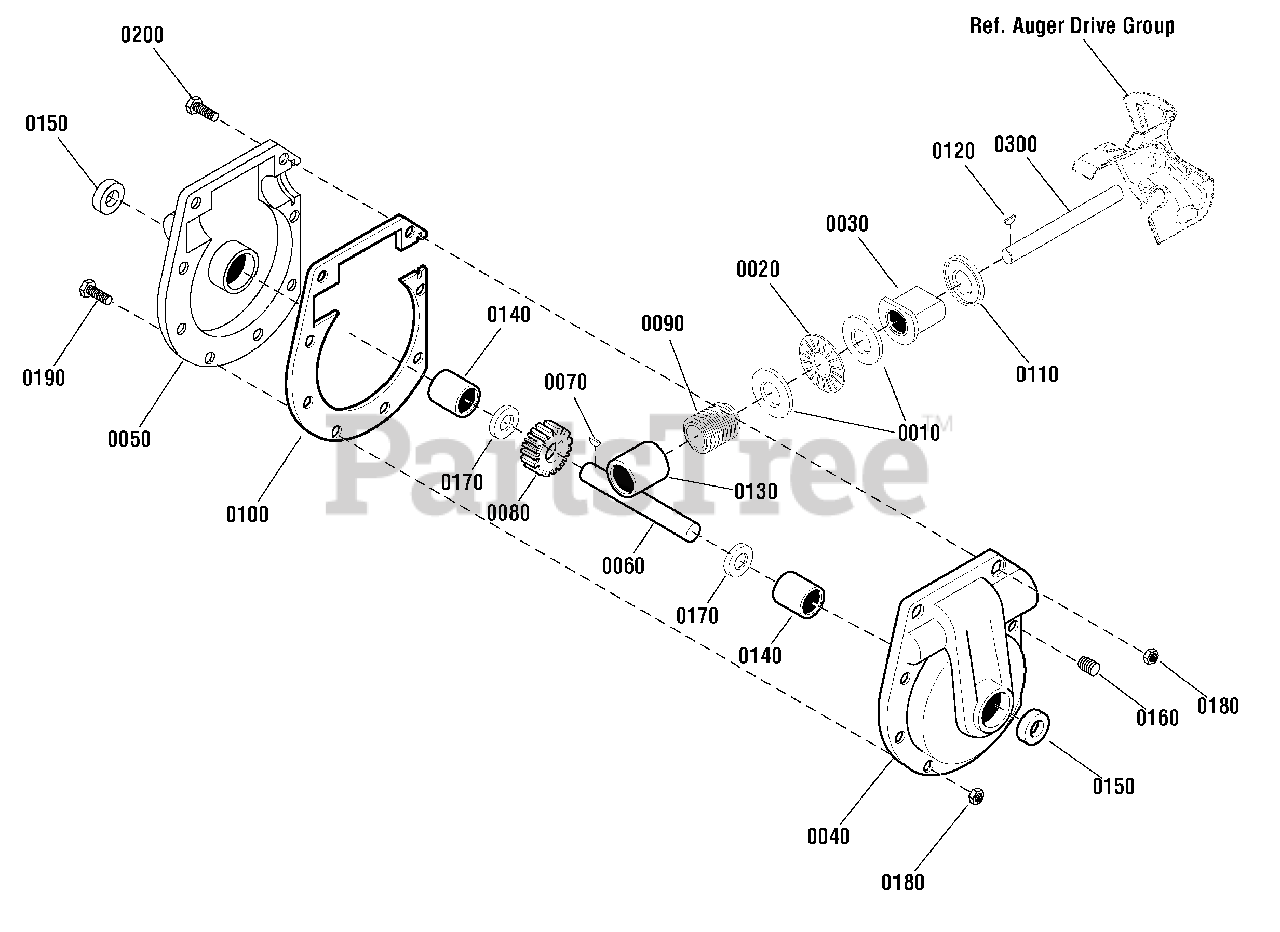

Gear Case Assembly (1751335YP) Parts Diagram

  • Title

0010

Briggs & Stratton 48275MA

WASHER, Thrust

$6.49

$

In Stock, Qty 10

0

0020

Briggs & Stratton 50684MA

BEARING, Roll

$6.49

$

In Stock, only 3 left!

0

0030

Briggs & Stratton 583126MA

BEARING, Flange

$13.99

$

In Stock, only 1 left!

0

0040

Briggs & Stratton 895MA

GEAR CASE, Left

$

$

Not available

0050

Briggs & Stratton 896MA

GEAR CASE, Right

$32.99

$

In Stock, only 4 left!

0

0060

Briggs & Stratton 760529MA

SHAFT, Auger Out, 27

$76.99

$

Usually ships in 2-12 days

0

0070

Briggs & Stratton 73905MA

KEY, Woodruf
(Superseded to 704280)

$4.99

$

In Stock, Qty 10

0

0080

Briggs & Stratton 53730MA

GEAR, Worm
(Superseded to 1752500YP)

$79.99

$

In Stock, only 1 left!

0

0090

Briggs & Stratton 53732MA

WORMGEAR

$49.99

$

In Stock, only 1 left!

0

0100

Briggs & Stratton 897MA

GASKET, Gear Box

$14.99

$

In Stock, only 1 left!

0

0110

Briggs & Stratton 53737MA

RING, Quad

$4.99

$

In Stock, Qty 8

0

0120

Briggs & Stratton 50795MA

KEY, Hi-Pro

$5.99

$

In Stock, only 2 left!

0

0130

Briggs & Stratton 53731MA

BEARING, Sleeve

$5.49

$

In Stock, Qty 12

0

0140

Briggs & Stratton 53743MA

BEARING, Sleeve

$9.99

$

In Stock, only 2 left!

0

0150

Briggs & Stratton 780151MA

SEAL, Oil

$10.99

$

In Stock, Qty 8

0

0160

Briggs & Stratton 53749MA

PLUG, Pipe
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Briggs & Stratton 53748MA

WASHER, Flat, 1

$9.99

$

In Stock, only 2 left!

0

0180

Briggs & Stratton 71100MA

NUT, Hex Flange, Serrated, 5/16-24
(Superseded to 703123)

$3.49

$

Usually ships in 2-12 days

0

0190

Briggs & Stratton 910828MA

BOLT, Hex 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0200

Briggs & Stratton 330434MA

SCREW, Hex Head, 5/16-24 x 1-1/2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0300

Briggs & Stratton 1750534YP

SHAFT, Impeller

$48.99

$

Usually ships in 2-12 days

0
