1696671 - Snapper 46" Bagging Boot Bagging Boot Parts Diagram

46" Bagging Boot

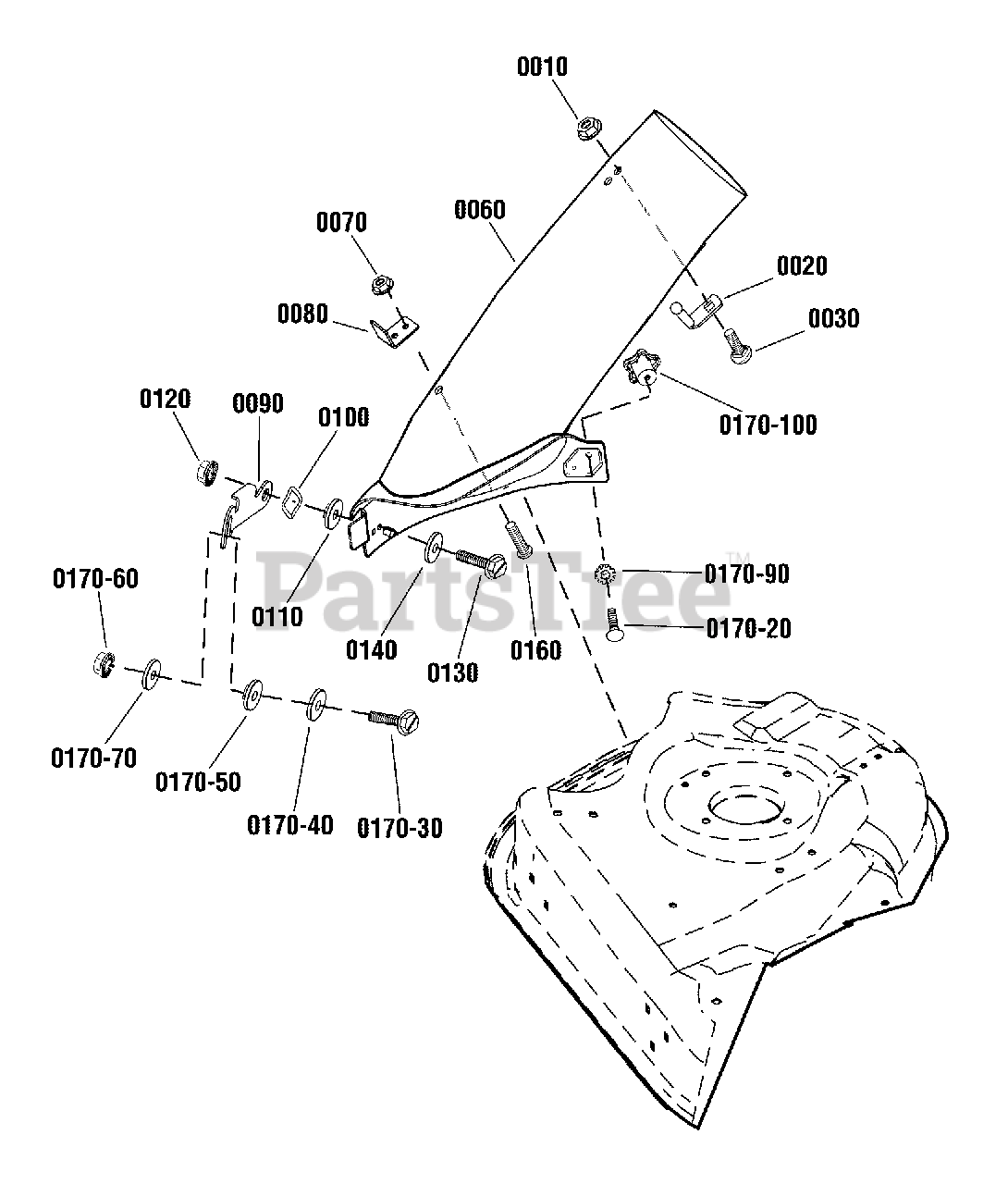

Bagging Boot Parts Diagram

  • Title

0010

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 4 left!

0

0020

Snapper 054563MA

PIN, Latch

$23.99

$

In Stock, only 2 left!

0

0030

Snapper 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 2 left!

0

0060

Snapper 1734776YP

BOOT, Bagging

$268.99

$

In Stock, only 1 left!

0

0070

Snapper 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0080

Snapper 1737764AYP

UPSTOP, Deflector

$33.99

$

Usually ships in 2-12 days

0

0090

Snapper 1737765AYP

LATCH, Bagging Boot

$32.99

$

In Stock, only 1 left!

0

0100

Snapper 7026257MA

Washer, Wave

$4.49

$

In Stock, only 2 left!

0

0110

Snapper 1708511SM

SPACER, .317

$7.49

$

Usually ships in 2-12 days

0

0120

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0130

Snapper 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 3 left!

0

0140

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

--

Snapper 1759714

HARDWARE BAG

Note: (Not a serviceable part)

$

$

Not available

0160

Snapper 7036415SM

SCREW, Pan Head, 10 x 5/8

$3.99

$

In Stock, only 2 left!

0

0170-20

Snapper 703178

BOLT, Carriage, 1/4-20

$3.99

$

In Stock, only 2 left!

0

0170-30

Snapper 703446

BOLT, Carriage, 5/16-18 x 1 1/4

$4.49

$

In Stock, only 1 left!

0

0170-40

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 11

0

0170-50

Snapper 1723244SM

SPACER, Hydraulic

$7.99

$

Usually ships in 2-12 days

0

0170-60

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 11

0

0170-70

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

0170-90

Snapper 703826

Pushnut, 1/4

$3.49

$

In Stock, Qty 15

0

0170-100

Snapper 706490

KNOB, Handle

$14.99

$

In Stock, only 1 left!

0
