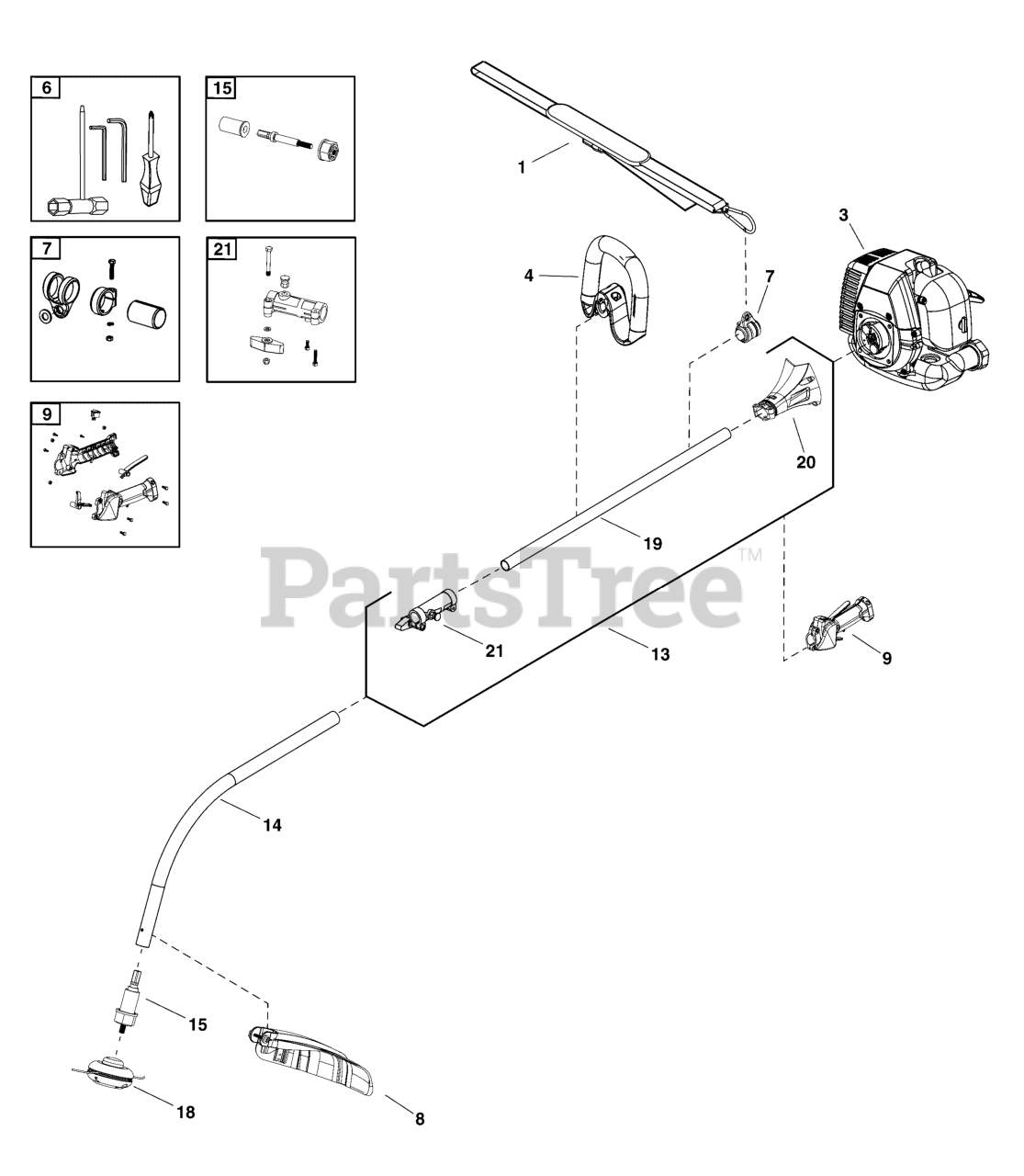

1697117-A - Murray 25.4cc String Trimmer Shaft Group Parts Diagram

25.4cc String Trimmer

Shaft Group Parts Diagram

  • Title

1

Murray TR01935A

HARNESS, Shoulder

$

$

Currently unavailable

3

Murray TR02481A

ENGINE 25.4CC 2ST TRIMMER

$

$

Currently unavailable

4

Murray TR01930A

HANDLE ASSEMBLY

$

$

Currently unavailable

6

TOOL KIT

Note: (Not a serviceable part.)

$

$

Not available

7

Murray TR01926A

BRACKET, Strap

Note: (Includes all items shown in box.)

$

$

Currently unavailable

8

Murray TR01932A

GUARD ASSEMBLY, Bent Shaft

$

$

Currently unavailable

9

Murray TR02482A

TRIGGER HOUSING ASSEMBLY

Note: (Includes all items shown in box.)

$

$

Currently unavailable

13

Murray TR02483A

SHAFT ASSEMBLY, Upper

$

$

Currently unavailable

14

Murray TR02484A

BENT SHAFT ASSEMBLY

$

$

Currently unavailable

15

Murray TR02485A

GEAR HEAD ASSEMBLY, GSL HEAD

Note: (Includes all items shown in box.)

$

$

Currently unavailable

18

24-260-A_AAB

GATOR SPEEDLOAD HEAD PRO SM

$

$

Not available

19

Murray TR02428A

UPPER DRIVE SHAFT ASSEMBLY

$

$

Currently unavailable

20

Murray TR02434A

CLUTCH ASSEMBLY

$

$

Currently unavailable

21

Murray TR02480A

COUPLING ASSEMBLY

Note: (Includes all items shown in box.)

$

$

Currently unavailable
