1697484-00 - Snapper 18V Pole Saw & Hedge Trimmer Combo Hedge Trimmer Parts Diagram

18V Pole Saw & Hedge Trimmer Combo

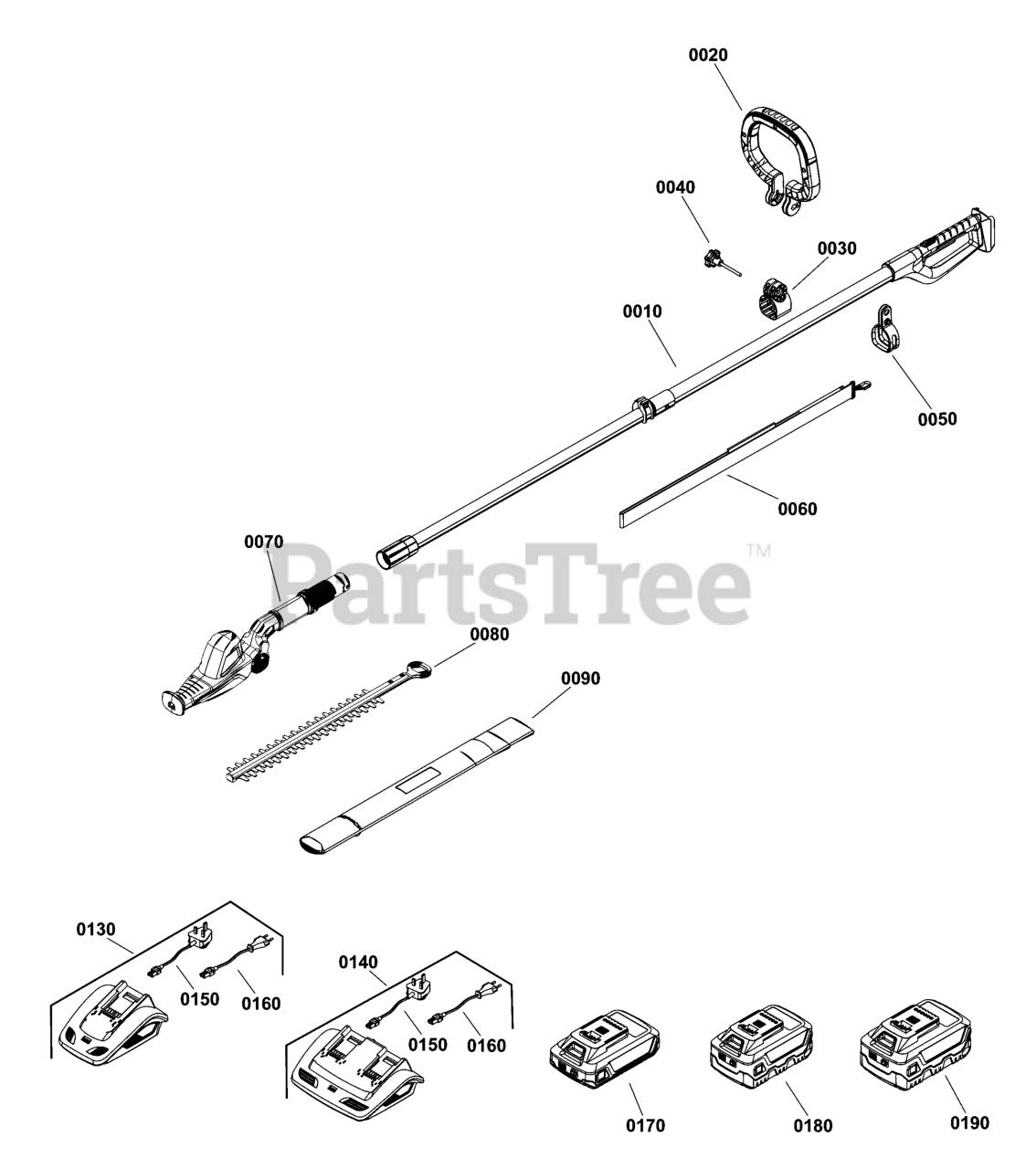

Hedge Trimmer Parts Diagram

  • Title
0010

Snapper 80092297

POLE HANDLE ASSEMBLY

$

$

Currently unavailable

0020

Snapper BP20584A

HANDLE, Front

$

$

Currently unavailable

0030

Snapper BP20585A

BRACKET, Front Handle

$

$

Currently unavailable

0040

Snapper BP20586A

KNOB, Front Handle

$

$

Currently unavailable

0050

Snapper BP20369A

LATCH, Harness

$

$

Currently unavailable

0060

$

$

Currently unavailable

0070

Snapper 80092293

POWER HEAD, Murray

Note: (Includes Ref. Nos. 0080)

$

$

Currently unavailable

0080

Snapper BP20491A

BLADE ASSEMBLY

$

$

Currently unavailable

0090

Snapper BP20588A

COVER, Blade

$

$

Currently unavailable

0130

Snapper 1697083

CHARGER, 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0140

Snapper 1697084

CHARGER, Twin 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0150

Snapper BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0160

Snapper BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0170

Snapper 883251

BATTERY, 18V, 2.5 Ah

Note: (Option)

$

$

Currently unavailable

0180

Snapper 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0190

Snapper 883253

BATTERY, 18V, 5.0 Ah

Note: (Option)

$

$

Currently unavailable
