1748F (55AF3DAM195) - MTD Pro Walk-Behind Mower Kawasaki Control Equipment Parts Diagram

Pro Walk-Behind Mower

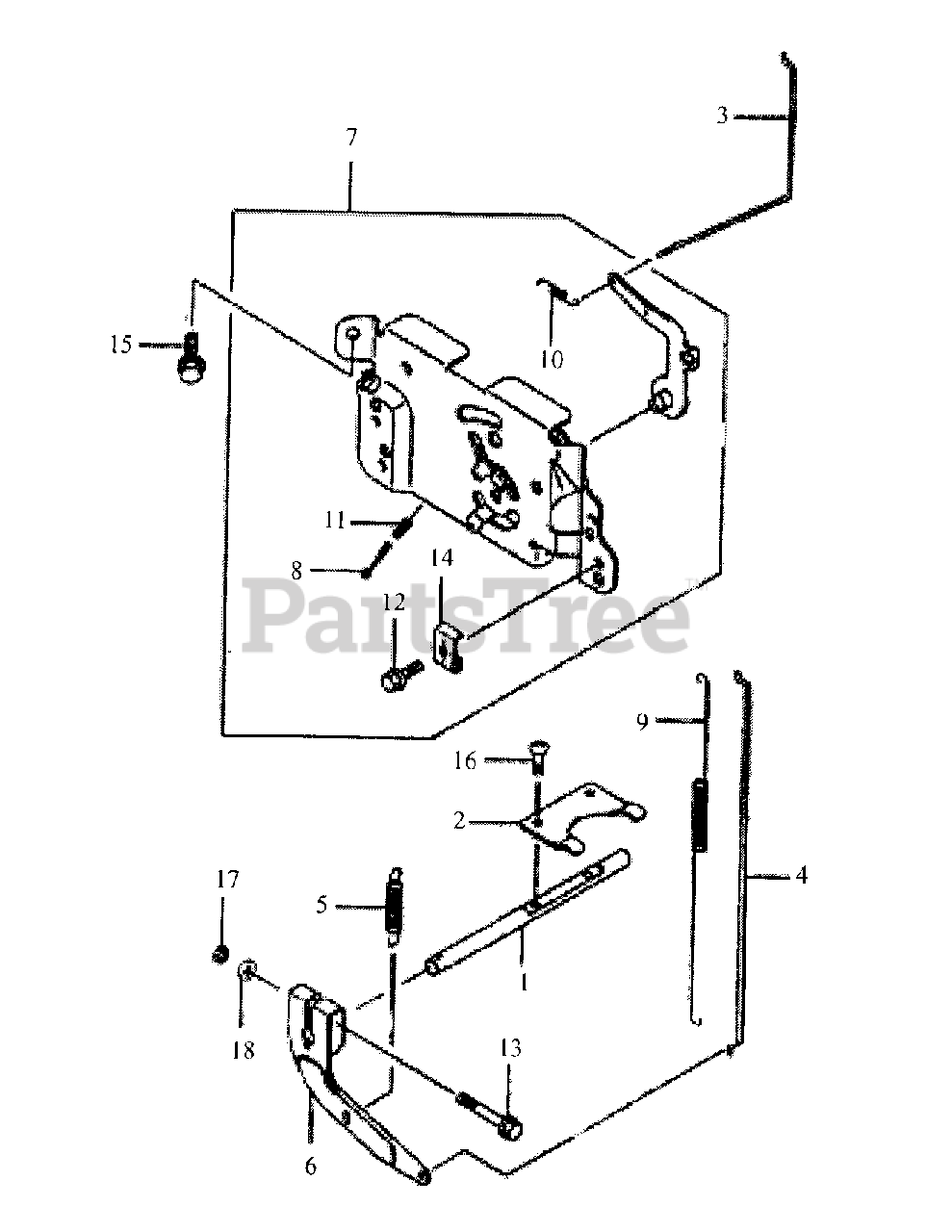

Kawasaki Control Equipment Parts Diagram

  • Title

1

MTD KM-13107-7006

Shaft
(Superseded to KM-13107-0750)

$12.99

$

In Stock, Qty 5

0

2

MTD KM-13271-7032

Plate

$3.99

$

In Stock, Qty 10

0

3

MTD KM-16169-7010

Link, Choke

$2.49

$

In Stock, only 2 left!

0

4

MTD KM-16171-7001

Link

$4.49

$

In Stock, Qty 5

0

5

MTD KM-39129-7003

Spring, Governor

$4.99

$

In Stock, Qty 5

0

6

MTD KM-49103-7002

Arm, Governor
(Superseded to KM-49103-7004)

$7.99

$

In Stock, only 2 left!

0

7

MTD KM-49113-7056

Panel, Control

$26.99

$

In Stock, only 1 left!

0

8

MTD KM-92009-7002

Screw 400

$0.99

$

Usually ships in 2-5 days

0

9

MTD KM-92145-7003

Spring

$2.99

$

In Stock, Qty 5

0

10

MTD KM-92145-7032

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

11

MTD KM-92145-7005

Spring

$0.99

$

In Stock, Qty 6

0

12

MTD KM-92150-2182

Bolt 5x 18

$0.99

$

In Stock, Qty 16

0

13

MTD KM-92151-7006

Bolt 6x30

$

$

Not available

14

MTD KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 15

0

15

MTD KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

16

MTD KM-214AA0408

Screw, Pan

$3.99

$

In Stock, only 1 left!

0

17

MTD KM-311AA0600

Nut,Hex

$0.99

$

In Stock, Qty 20+

0

18

MTD KM-411B0600

Washer, Plain
(Superseded to KM-411AA0600)

$4.49

$

Usually ships in 2-5 days

0
