17AA5AAG766 - Troy-Bilt RZT 42" Zero-Turn Mower (2006) Frame and Drive Idler Assembly Parts Diagram

RZT 42" Zero-Turn Mower

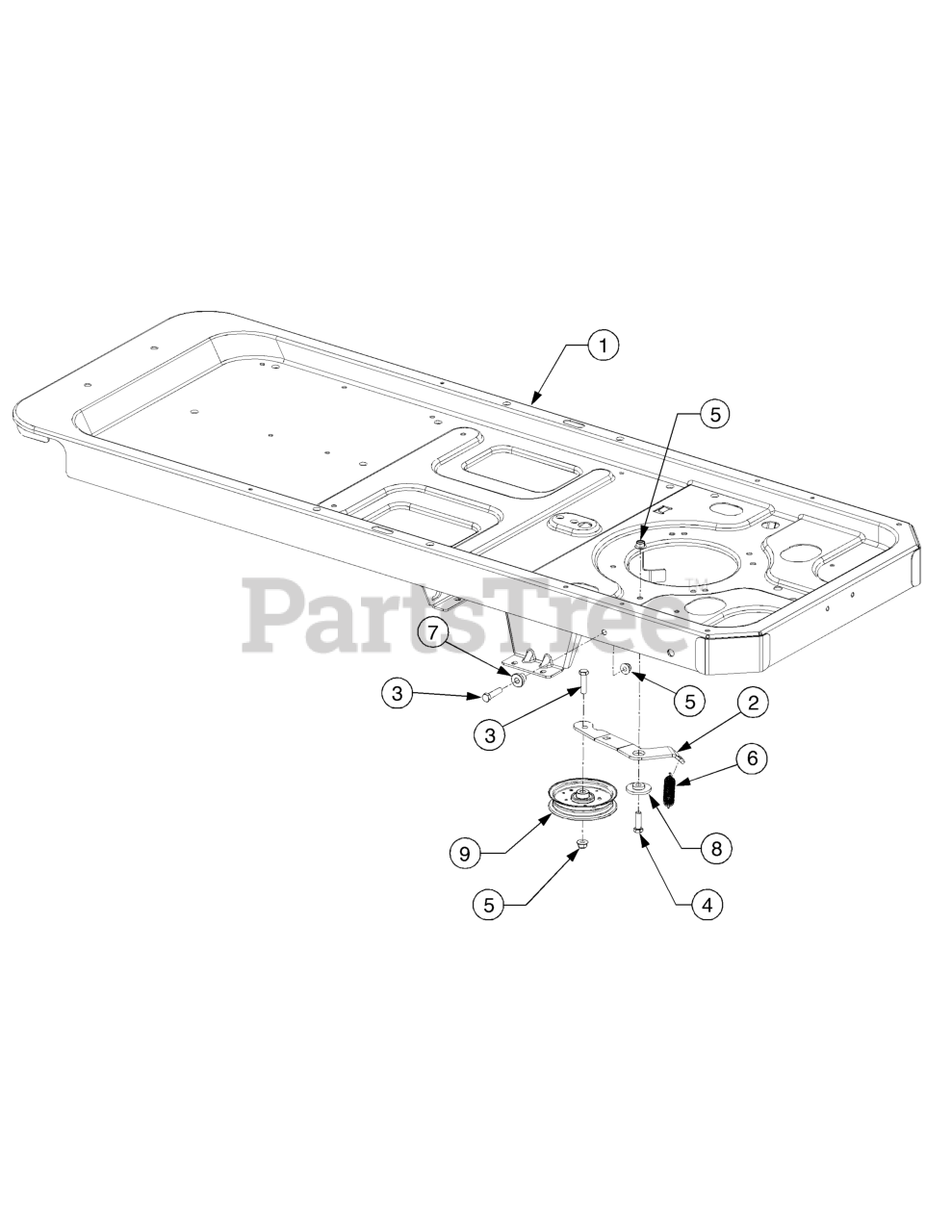

Frame and Drive Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 603-04303B

Frame Assembly
(Superseded to 603-04303E)

Variations

Troy-Bilt 603-04303B-0606

FRAME ASM-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 603-04303B-0638

FRAME ASM-RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 603-04303B-0650

FRAME-ASSY RZT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 603-04303B-0674

FRAME-RZT - YARDMAN YELLOW (0674)

$

$

Not available

Troy-Bilt 603-04303B-0716

FRAME-ASSY RZT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

1

Troy-Bilt 777D09987

Graphic, Troy-Bilt

$

$

Not available

1

Troy-Bilt 777I22489

Graphic, Release Lever

$

$

Not available

2

Troy-Bilt 703-05829

Idler Arm, Drive

Variations

Troy-Bilt 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$39.99

$

In Stock, only 2 left!

0

$39.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04065

Nut, Hx Insert Flange Lck, 3/-16 GRF

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 732-0626

Spring, Extension, .75 x 5.06

$11.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 738-04058

Spacer, Shoulder, .39 x 1.0 x .7

$4.49

$

In Stock, Qty 7

0

8

Troy-Bilt 738-04162A

Screw, Shoulder, .884 x .19
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0
