17AE2ACG066 - Troy-Bilt Mustang Colt RZT 42" Zero-Turn Mower (2008) Front Axle Parts Diagram

Mustang Colt RZT 42" Zero-Turn Mower

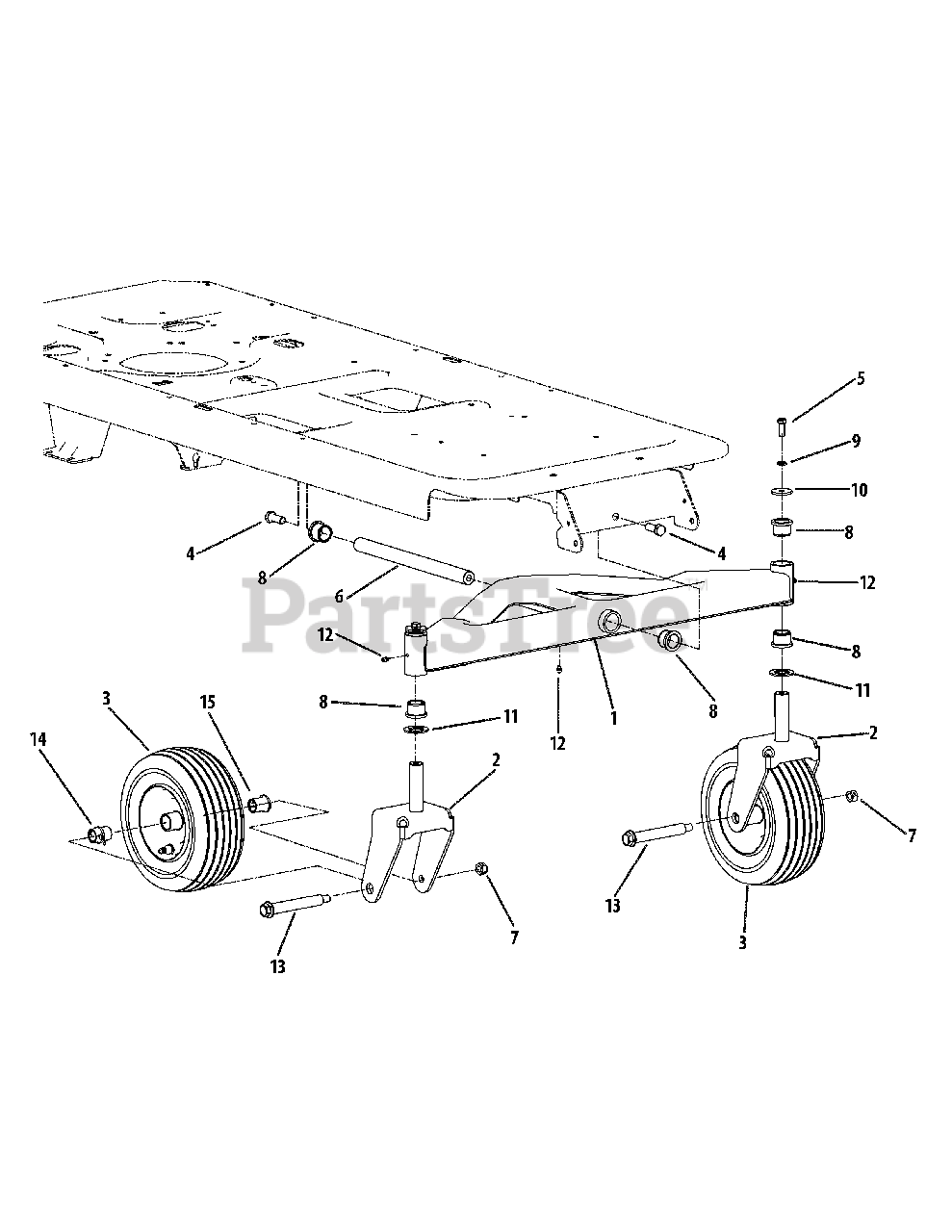

Front Axle Parts Diagram

  • Title

1

Troy-Bilt 603-04148C

Front Pivot Axle

Variations

Troy-Bilt 603-04148C-0638

AXLE-FRONT PIVOT - MTD/TROY-BILT RED (0638)

$425.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04148C-0716

AXLE-FRONT PIVOT - CUB YELLOW-99 (0716)

$425.99

$

In Stock, only 1 left!

0

Troy-Bilt 603-04148C-0691

AXLE-FRONT PIVOT - BLACK JACK (0691)

$425.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04148C-4021

AXLE-FRONT PIVOT - CUB YELLOW 2 (4021)

$425.99

$

In Stock, only 1 left!

0

Troy-Bilt 603-04148C-4044

AXLE-FRONT PIVOT - CRAFTSMAN RED (4044)

$457.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04148C-0606

AXLE-FRONT PIVOT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 603-04148C-0650

AXLE-FRONT PIVOT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 603-04148C-0665

AXLE-FRONT PIVOT - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 603-04148C-4015

AXLE-FRONT PIVOT - FIRE RED (4015)

$

$

Not available

Troy-Bilt 603-04148C-4038

AXLE-FRONT PIVOT - DAY ORANGE (4038)

$

$

Not available

$425.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 603-04308

Castor Wheel Bracket
(Superseded to 603-04308A)

Variations

Troy-Bilt 603-04308-0716

Caster Yoke Assembly, Yellow - CUB YELLOW-99 (0716)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0650

Caster Yoke Assembly, Red - RED METALLIC (0650)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0606

Caster Yoke Assembly - MAJESTIC ORANGE (0606)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0637

Caster Yoke Assembly - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0638

Caster Yoke Assembly, Red - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0665

Caster Yoke Assembly - YARDMAN GREEN (0665)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0674

Caster Yoke Assembly, Yellow - YARDMAN YELLOW (0674)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-0691

Caster Yoke Assembly - BLACK JACK (0691)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-4015

Caster Yoke Assembly - FIRE RED (4015)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-4021

Caster Yoke Assembly, Yellow - CUB YELLOW 2 (4021)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-4038

Caster Yoke Assembly - DAY ORANGE (4038)

$91.99

$

Usually ships in 3-6 days

0

Troy-Bilt 603-04308-4044

YOKE ASM-CASTER - CRAFTSMAN RED (4044)

$91.99

$

Usually ships in 3-6 days

0

$74.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 634-04237A

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04237C)

$151.99

$

In Stock, Qty 10

0

3

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04186

Hex Lock Screw,1/2-13 x 1.25

$6.99

$

In Stock, Qty 6

0

5

Troy-Bilt 710-0514

Hex Cap Screw, 3/8 -16 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 711-04228

Axle Shaft
(Superseded to 911-04228)

$71.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-05500

Flange Bearing, 1.0 x 1.246

$9.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0227

Flat Washer, .39 x 1.5 x .134

$5.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0250

Flat Washer, 1.0 x 1.75 x .107

$4.49

$

In Stock, Qty 10

0

12

Troy-Bilt 737-3000

Lube Fitting, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 738-04182A

Shoulder Screw, .75 x 4.75 x 7/16-14
(Superseded to 738-04182B)

$24.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 741-0516B

Flange Bearing, .76 x 1.0 x 1.2

$5.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 741-0990B

Flange Bearing, .76 ID w/Lube Ftg.

$9.99

$

In Stock, Qty 20+

0
