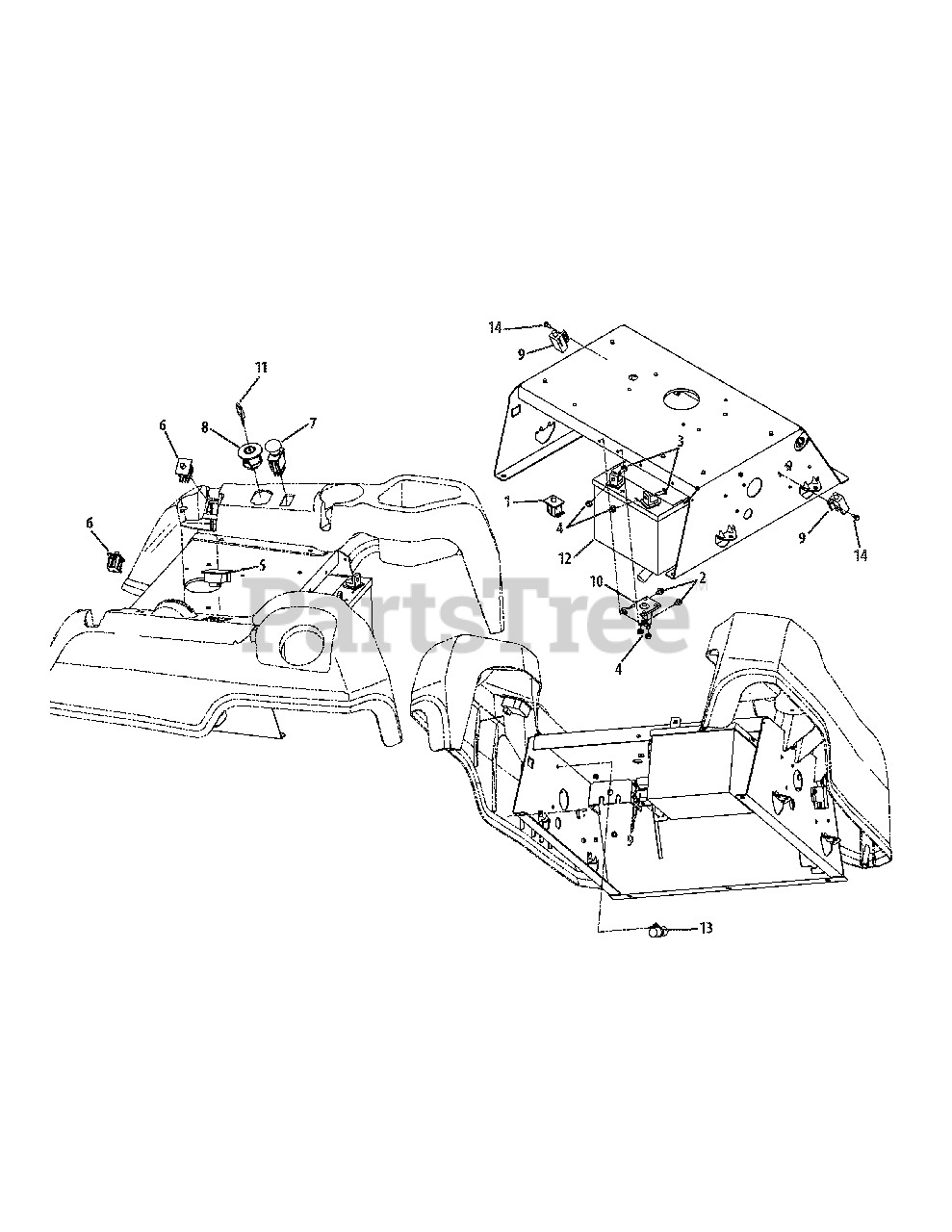

17BE2ACG011 - Troy-Bilt Colt XP Zero-Turn Mower (2009) Electrical Parts Diagram

Colt XP Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

Troy-Bilt 925-04040

Seat Switch

$33.99

$

In Stock, Qty 7

0

2

Troy-Bilt 710-0653

Hex Washer Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

3

Troy-Bilt 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 925-04022B

Hour Meter

$136.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 925-04165

Double Pole Neutral Switch

$30.99

$

In Stock, Qty 12

0

7

Troy-Bilt 925-04174

PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 925-04228

Ignition Switch

$36.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-04363

Brake/Reverse Interlock Switch

$14.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 725-04439

Solenoid
(Superseded to 725-04439B)

$37.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 925-1745

Key
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 925-1707D

Battery

$

$

Not available

13

Troy-Bilt 726-0470

Cable Tie

$4.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .5

$5.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-04847A

Wire Harness Assembly
(Superseded to 925-04847C)

Note: Not Shown

$165.99

$

In Stock, only 3 left!

0
