1800 (5118 HR) - Troy-Bilt Tractor (SN: B060100101 - B060199999) HYDROSTATIC ASSEMBLY Parts Diagram

Tractor

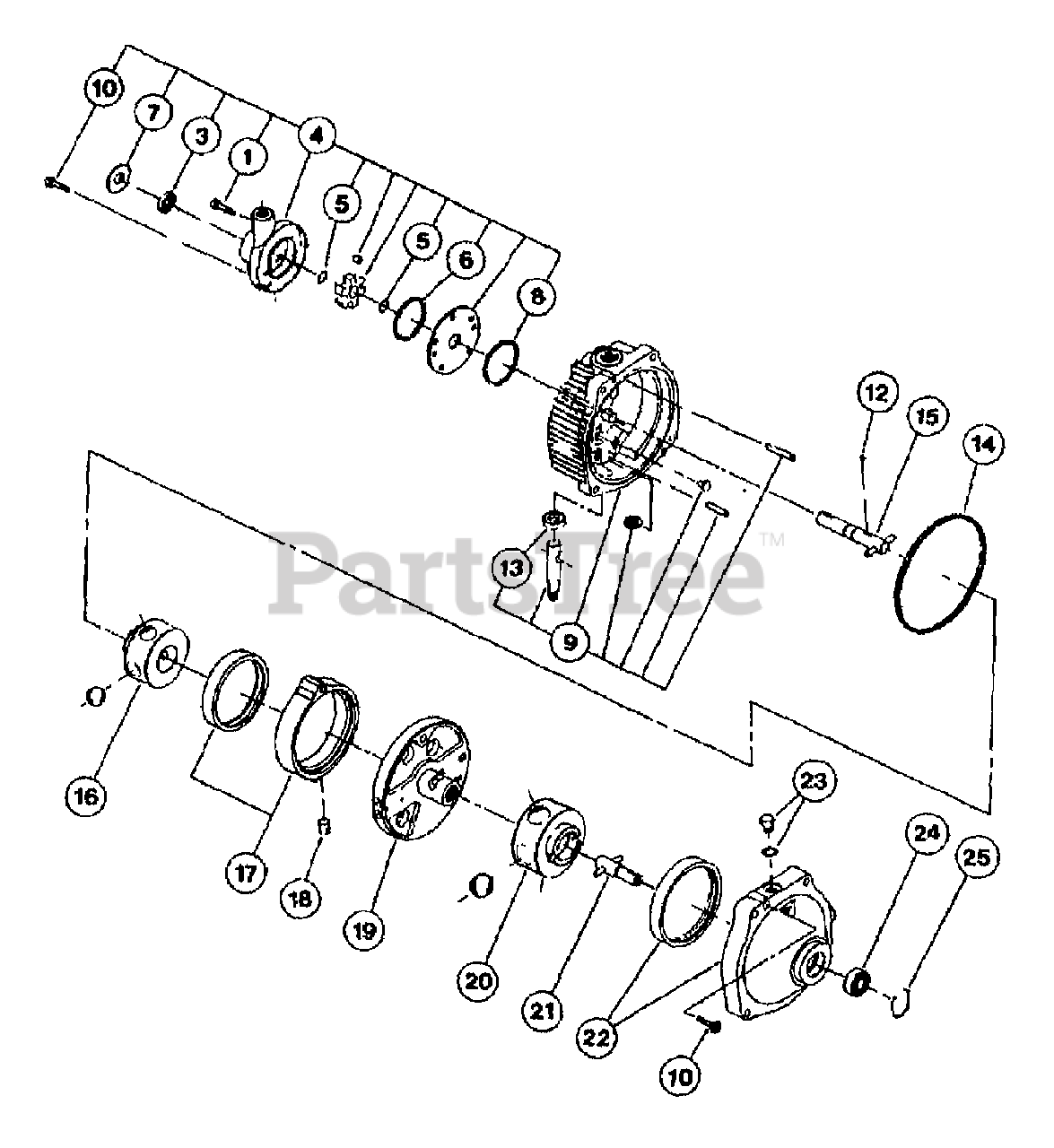

HYDROSTATIC ASSEMBLY Parts Diagram

  • Title

1

0

SOCKET HD. CAPSCREW

$

$

Not available

3

Troy-Bilt 1724376

SEAL-OIL
(Superseded to ET-092999-000P)

$

$

Not available

4

MTD 1744188

KIT-CHARGE PUMP

$

$

Not available

5

MTD 1724375

RING-SNAP

$

$

Not available

6

MTD 1744155

RING-SQ SEAL

$

$

Not available

7

Troy-Bilt 1724377

SHIELD-GRASS
(Superseded to ET-093902-000)

$

$

Not available

8

Troy-Bilt 1744157

RING-SQ SEAL

$

$

Not available

9

MTD 1744154

ASSM-COVER

$

$

Not available

10

0

SOCKET HD. CAPSCREW

$

$

Not available

12

Troy-Bilt 1744159

PIN-DRIVE

$

$

Not available

13

Troy-Bilt 1724376

SEAL-OIL
(Superseded to ET-092999-000P)

$

$

Not available

14

Troy-Bilt 1744185

RING-SQ SEAL
(Superseded to ET-008771-166)

$17.99

$

Usually ships in 3-6 days

0

15

MTD 1744160

SUBASSM-INPUT SHAFT

$

$

Not available

16

Troy-Bilt 1744164

ASSM-PUMP ROTOR & BALL

$

$

Not available

17

MTD 1744184

ASSM-RING CAM

$

$

Not available

18

MTD 1744176

RING-CAM INSERT

$

$

Not available

19

MTD 1744166

ASSM-PINTLE

$

$

Not available

20

MTD 1744177

ASSM-MOTOR ROTOR & BALL

$

$

Not available

21

MTD 1744010

SUBASSM-OUTPUT SHAFT

$

$

Not available

22

Troy-Bilt 1744180

ASSM-BODY

$

$

Not available

23

MTD 1744179

SUBASSM-O RING PLUG

$

$

Not available

24

MTD 1104440

BRG-BALL (OUTPUT)

$

$

Not available

25

Troy-Bilt 1724380

RING-RETAIN

$

$

Currently unavailable
