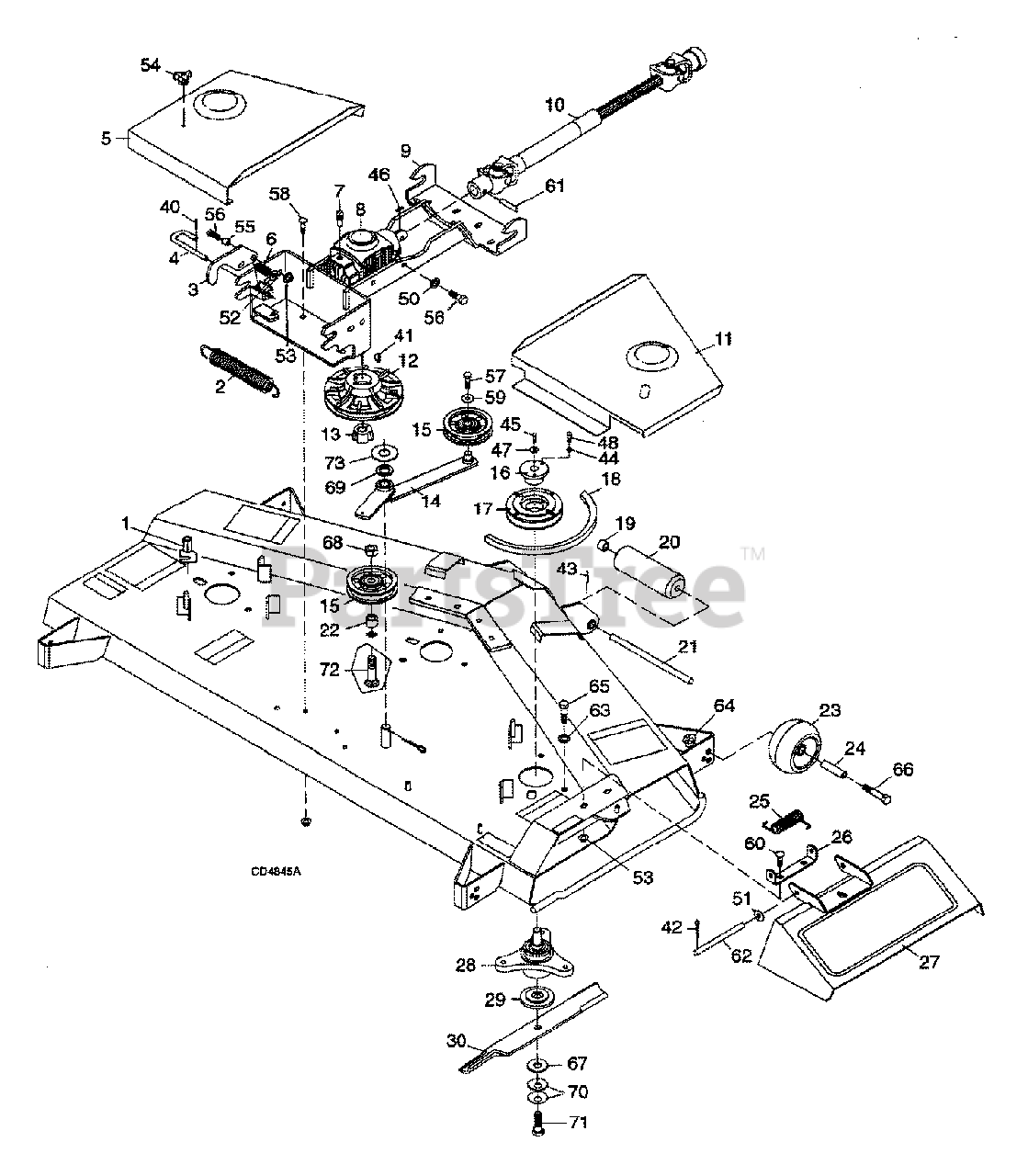

190-740-000 - White Outdoor 60" Deck Mower Deck Assembly (1997) Main Frame Assembly Parts Diagram

60" Deck Mower Deck Assembly

Main Frame Assembly Parts Diagram

  • Title

1

MTD WM-34531

Belt guide assembly

$

$

Not available

2

MTD WM-31360

Spring-extension 1.45 x .20 x 8.1 x 35

$

$

Not available

3

MTD WM-66479

Link - .25 x 2.50 x 6.08

Note: NLA

$

$

Not available

4

MTD WM-66427

Pin, Bent-U .375 diameter x 3.00

Note: NLA

$

$

Currently unavailable

5

MTD WM-34597

Left belt shield

Note: NLA

$

$

Not available

6

MTD WM-21957

Spring-compression .58 x .08 x 2.4 x 40

Note: NLA

$

$

Currently unavailable

7

MTD WM-34576

Plastic gearbox vent plug

$

$

Not available

8

MTD WM-64933

Finned 1:1 bevel gearbox assembly

Note: NLA

$

$

Not available

9

MTD WM-66470

Gearbox stand

Note: NLA

$

$

Not available

10

MTD WM-67490

Drive asy complete - 0600, 14.0 x 17.7

Note: NLA

$

$

Not available

11

MTD WM-34596

Right belt shield

$

$

Not available

12

MTD WM-66428

Sheave - 6.65 PD offset

Note: NLA

$

$

Not available

13

MTD WM-66505

.81 Bore taper lockbushing with set screws

$

$

Not available

14

MTD WM-66476

Idler arm

Note: NLA

$

$

Not available

14

MTD WM-16162

3/4 ID x 1 OD x 1-1/2 Bronze bushing

$

$

Not available

15

MTD WM-24260

4-7 1/6 OD Flat idler & bearing

$120.99

$

Usually ships in 3-6 days

0

15

MTD WM-24259

.625 ID x 1.78 OD Ball bearing

$

$

Not available

16

MTD WM-34756

H 3/4 Straight bore bushing with key P.1

$72.99

$

Usually ships in 3-6 days

0

17

MTD WM-34505

1 BK 4.6 H Sheave

$

$

Not available

18

MTD WM-1469

1 V-Belt W113

$

$

Not available

19

MTD WM-27887

1/2 x 3/4 x 3/4 Sleeve

$

$

Not available

20

MTD WM-16173

Front roller

$

$

Not available

21

MTD WM-66981

Pin-headless .5 x 9.75

$74.99

$

Usually ships in 3-6 days

0

22

MTD WM-1791

5/8 x 1 x 9/16 Sleeve

$

$

Not available

23

MTD WM-67365

Roller-scalp 4.94 x 2.75

$35.99

$

Usually ships in 3-6 days

0

24

MTD WM-66446

Sleeve - .505 x .625 x 2.63

Note: NLA

$

$

Not available

25

MTD WM-66815

Spring-Torsion .207 x .94 x 4.86

$

$

Not available

26

MTD WM-66865

Deck bracket

$

$

Not available

27

MTD WM-66866

Discharge chute

Note: NLA

$

$

Not available

28

MTD WM-66562

Clockwise blade spindle assembly

$

$

Not available

29

MTD WM-33736

5/8 ID x 3 x 7/16 Shoulder washer

$

$

Not available

30

MTD 759-3779

Clockwise 20-3/4 Flat blade

$212.99

$

In Stock, only 1 left!

0

40

MTD WM-35626

1/8 x 5/8 Spring pin

Note: NLA

$

$

Currently unavailable

41

MTD WM-62233

.187 x .75 Woodruff key

Note: NLA

$

$

Currently unavailable

42

MTD WM-1256

3/16 x 1 Cotter pin

Note: NLA - Obtain Locally

$

$

Currently unavailable

43

MTD 715-0150

3/16 x 1-1/8 Spring pin

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

44

MTD 936-0329

1/4 Standard lockwasher

Note: Obtain Locally

$4.49

$

In Stock, Qty 12

0

45

MTD WM-2457

1/4 NC x 3/4 Hex head cap screw GR5

Note: NLA - Obtain Locally

$

$

Not available

46

MTD WM-62234

1/4 Square x 7/8 key

Note: NLA - Obtain Locally

$

$

Currently unavailable

47

MTD WM-32806

1/4 x 7/8 x 7 Gauge washer

$

$

Not available

48

MTD WM-10378

1/4 NC x 1 Hex head cap screw GR5

Note: NLA - Obtain Locally

$

$

Currently unavailable

?49

MTD WM-1285

1/4 x 1-1/2 Cotter pin

Note: NLA - Obtain Locally

$

$

Currently unavailable

50

MTD WM-838

3/8 Standard lockwasher

Note: Obtain Locally

$3.99

$

Usually ships in 3-6 days

0

51

MTD WM-565

3/8 Standard flat washer

Note: NLA - Obtain Locally

$

$

Currently unavailable

52

MTD WM-21757

3/8 Standard SAE flat washer

Note: Obtain Locally

$

$

Not available

53

MTD WM-14350

3/8 NC Flange hex locknut

$

$

Not available

54

MTD WM-66840

3/8 NC 3-Prong knob

$

$

Not available

55

MTD WM-35092

3/8 x 1/2 x 9/32 Sleeve

Note: NLA

$

$

Not available

56

MTD WM-839

3/8 NC x 1 Hex head cap screw GR5

Note: Obtain Locally

$

$

Not available

57

MTD WM-64518

3/8 NF x 1 Hex head cap screw GR5

$

$

Not available

58

MTD WM-6697

3/8 NC x 1 Carriage bolt

$

$

Not available

59

MTD WM-21298

3/8 x 1 x 7 Gauge washer

$

$

Not available

60

MTD WM-24890

3/8 NC x 1-1/4 Carriage bolt

Note: NLA - Obtain Locally

$

$

Currently unavailable

61

MTD WM-11606

3/8 x 1-1/2 Spirol pin

$7.99

$

Usually ships in 3-6 days

0

62

MTD WM-11760

3/8 x 7-1/4 Pin and chain

$

$

Not available

63

MTD 936-0921

1/2 Extra-heavy lockwasher
(Superseded to 736-0921)

Note: Obtain Locally

$4.49

$

In Stock, Qty 20+

0

64

MTD WM-11900

1/2 NC Flange hex locknut

Note: Obtain Locally

$5.49

$

In Stock, only 1 left!

0

65

MTD WM-4119

1/2 NF x 1 Hex head cap screw GR5

$

$

Not available

66

MTD WM-14069

1/2 NC x 3-1/4 Hex head cap screw GR5

Note: NLA - Obtain Locally

$

$

Currently unavailable

67

MTD WM-692

5/8 Standard flat washer

Note: NLA - Obtain Locally

$

$

Currently unavailable

68

MTD WM-6239

5/8 NC Hex locknut

Note: NLA - Obtain Locally

$

$

Currently unavailable

69

MTD WM-22060

5/8 x 1 x 1/4 Felt seal

$

$

Not available

70

MTD WM-10635

5/8 x 1-3/4 x 14 Gauge cup washer

$

$

Not available

71

MTD WM-34582

5/8 NC x 2 Hex head cap screw GR5 Nylok

$

$

Not available

72

MTD WM-5836

5/8 NC x 2-1/2 Carriage bolt

Note: NLA - Obtain Locally

$

$

Currently unavailable

73

MTD WM-11036

3/4 x 1-1/2 x 18 Gauge shim washer

$

$

Not available

MTD WM-34590

Spindle lock wrench

Note: (Not shown)

$

$

Not available

MTD WM-34595

Spindle wrench handle

Note: (Not shown)

$

$

Not available
