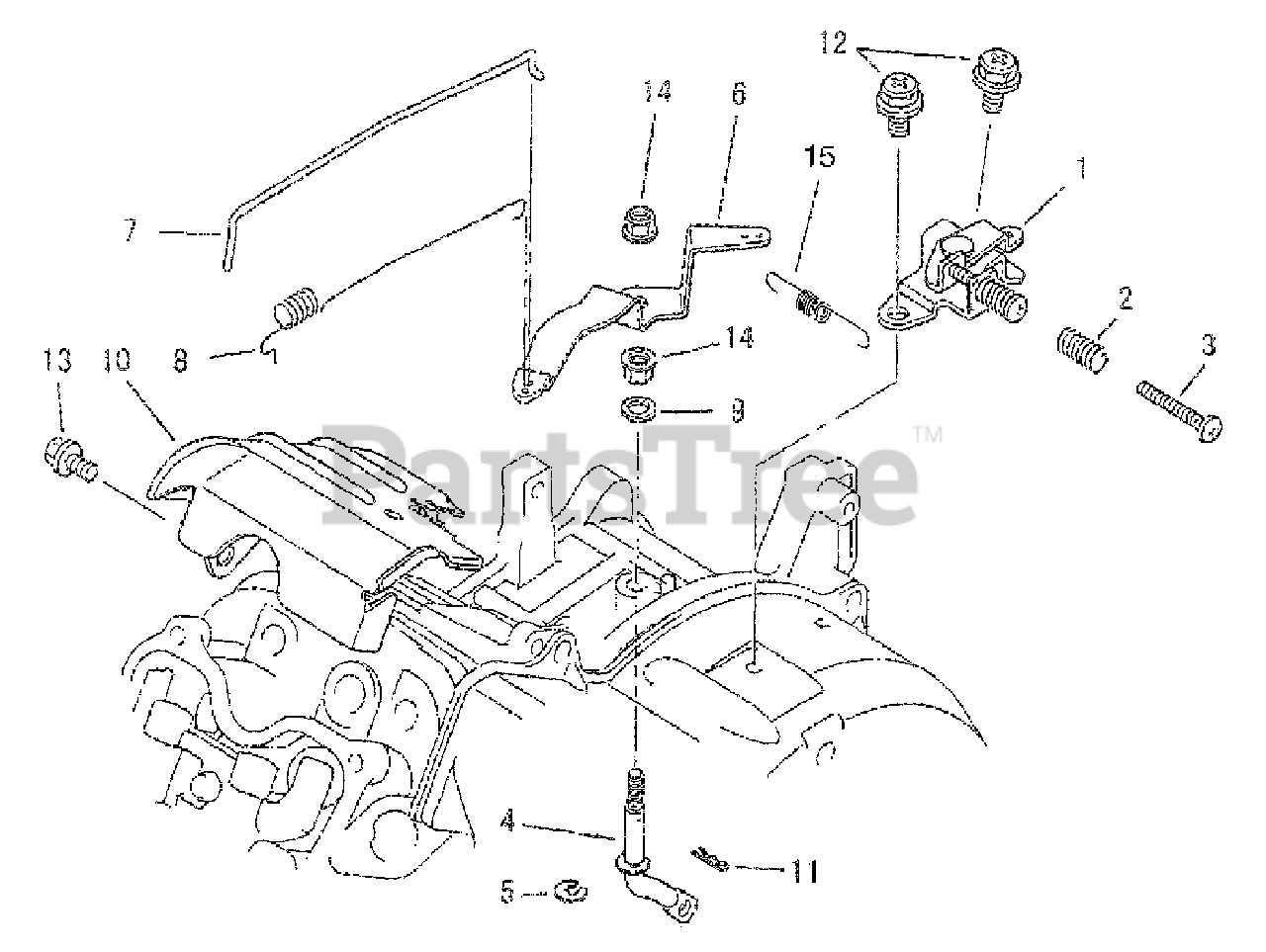

1923-0 - Troy-Bilt 1,000 Watt Portable Generator Engine - Control/Linkages Parts Diagram

1,000 Watt Portable Generator

Engine - Control/Linkages Parts Diagram

  • Title

1

Briggs & Stratton 187505GS

BRKT, SPEED CNTRL
(Superseded to 715945)

$32.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187506GS

SPRING, SPEED CNTRL
(Superseded to 715941)

$9.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 187507GS

SCREW, SPEED CNTRL
(Superseded to 715941)

$9.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 187508GS

SHFT, GOV
(Superseded to 711514)

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187510GS

RING, SNAP, GOV ROD

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187512GS

LEVER, GOV
(Superseded to 711515)

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 187513GS

ROD, GOV
(Superseded to 711513)

$9.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 187514GS

SPRING, GOV LEVER
(Superseded to 711512)

$9.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 187515GS

WSHR, GOV LEVER
(Superseded to 711516)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 187516GS

CVR, TOP

$18.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187517GS

CLIP, GOV ROD

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187518GS

BOLT, SPEED CNTRL BKT

$1.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 187519GS

BOLT, TOP CVR

$2.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 187520GS

NUT, GOV LEVER

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 187570GS

SPRING, GOV
(Superseded to 711510)

$7.99

$

Usually ships in 2-12 days

0
