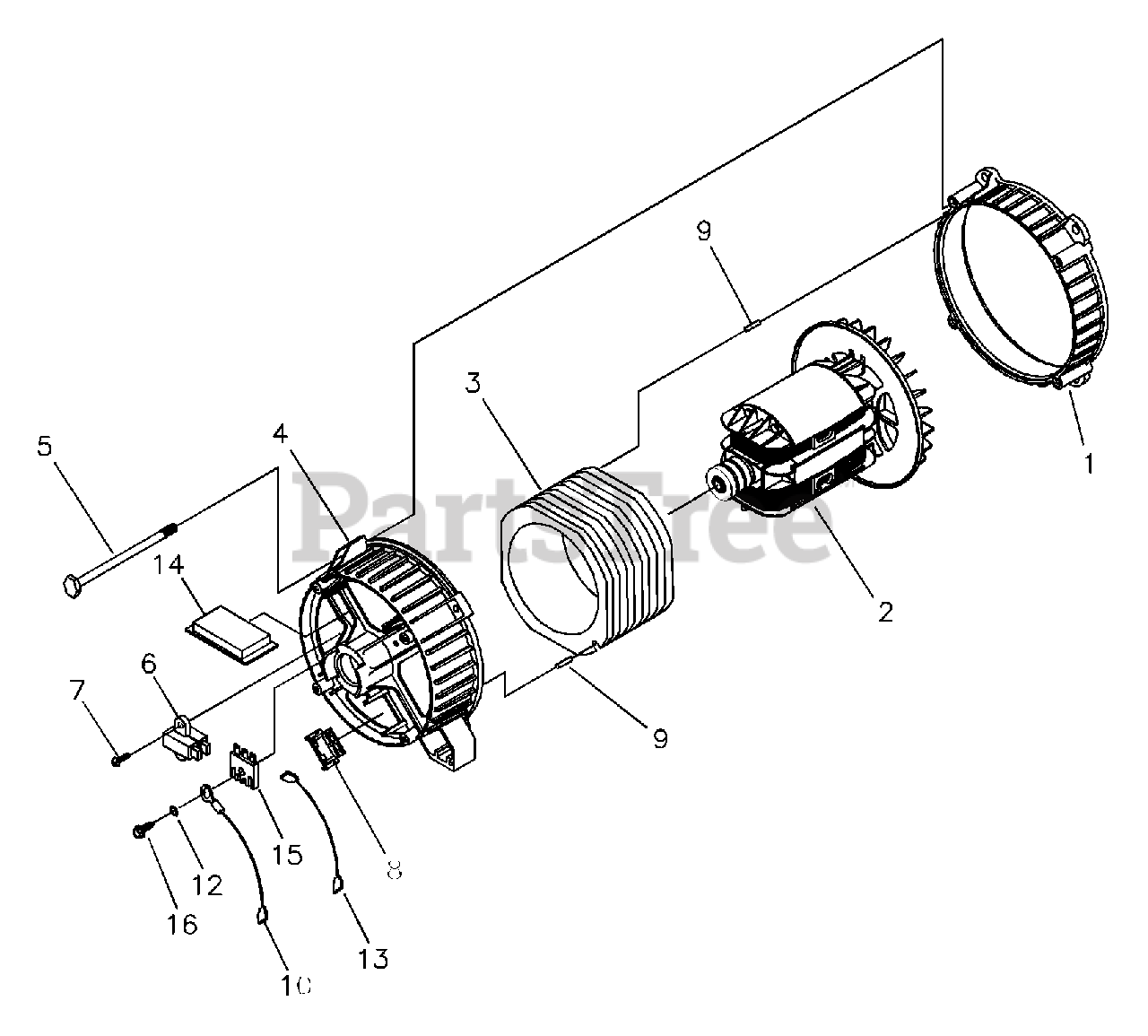

1933-0 - Generac PRO 6,500 Watt Portable Generator Alternator Parts Diagram

PRO 6,500 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting,Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 192919GS

ROTOR

$

$

Not available

3

Briggs & Stratton 192920AGS

STATOR

$607.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 193336GS

RBC, (with O-Ring, p/n 189197GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

SCREW

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSY, Holder, Brush

$23.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 22694GS

RECEPTACLE, 6 pin

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 191051AGS

ASSY,Wire, Ground
(Superseded to 193428AGS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192403XGS

WIRE, Ground

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189769GS

REGULATOR,Voltage,AVR
(Superseded to 205858GS)

$107.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 65795GS

RECTIFIER

$

$

Not available

16

Briggs & Stratton 66849AGS

SCREW

$4.49

$

Usually ships in 2-12 days

0
