196-062-000 - White Outdoor Rear Bagging Grass Catcher (1986) 36" Rear Discharge Deck Grass Catcher Kit Parts Diagram

Rear Bagging Grass Catcher

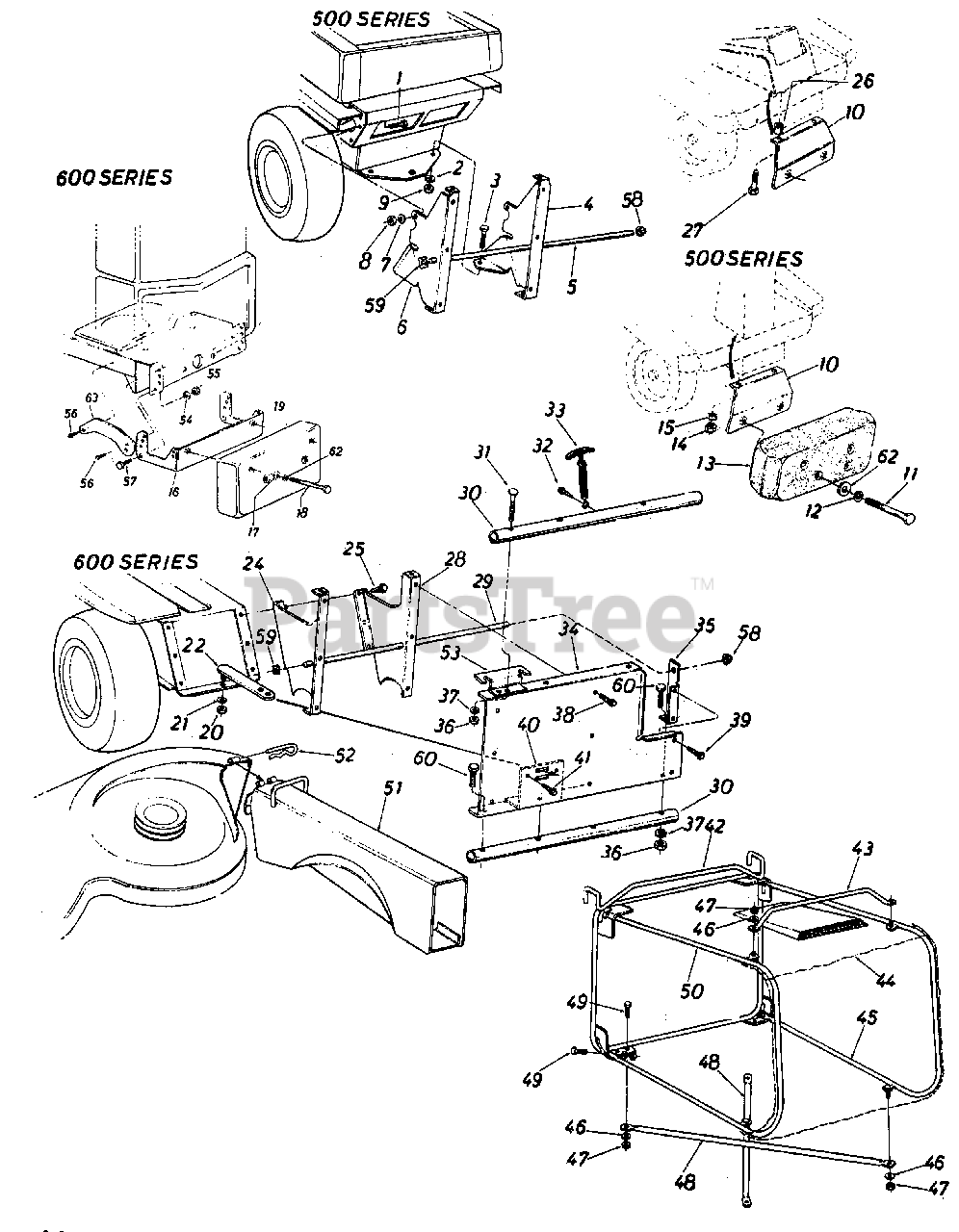

36" Rear Discharge Deck Grass Catcher Kit Parts Diagram

  • Title

1

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, Qty 16

0

2

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, Qty 16

0

4

White Outdoor 15970

CatcherSupport Brkt-R.H.
(Superseded to 15970A)

$

$

Not available

5

White Outdoor 749-0613

Tubing.38" I.D. x .50" O.D. x 29" Lg.

Variations

White Outdoor 749-0613-0637

No Longer Available TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 15971

Catcher Support Brk't.-L. H .

$

$

Not available

7

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

9

White Outdoor 712-0267

Hex Nut 5/16-18Thd.*
(Superseded to 912-3010)

$

$

Not available

10

White Outdoor 15539

Counterweight Bracket

$

$

Not available

11

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

12

White Outdoor 736-0105

Belleville Wash. .400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 723-0367

Front Counterweight 381bs

$

$

Not available

14

White Outdoor 712-0267

Hex Nut 5/16-18Thd.*
(Superseded to 912-3010)

$

$

Not available

15

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 15873

Counterweight Bracket

$

$

Not available

17

White Outdoor 736-0105

Belleville Wash. .400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0693

Hex Bolt 3/8-16 x 4.5" Lg. *

$14.99

$

In Stock, only 2 left!

0

19

White Outdoor 723-0367

Front Counterweight 38 Ibs.

$

$

Not available

20

White Outdoor 712-0922

Hex Jam Nut 1/2-13 0 Thd. *
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

21

White Outdoor 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16602

Hitch Bar Ass'y.

Variations

White Outdoor 16602-0637

No Longer Available BAR ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

24

White Outdoor 15363

Catcher Support Brk't.-L. H .

$

$

Not available

25

White Outdoor 710-0726

Hex Wash. Hd. Self Tap Scr. 5/16-18 x .75 Lg.*

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 711-0242

Spacer.380" I.D. x 1.00" O.D. x.320" Lg.

$4.49

$

In Stock, Qty 11

0

27

Not Part of Kit

$

$

Not available

28

White Outdoor 15364

Catcher Support Brk t. R . H .

$

$

Not available

29

White Outdoor 749-0613

Tubing .38" I.D. x .50" O.D. x 29" Lg. I

Variations

White Outdoor 749-0613-0637

No Longer Available TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 749-0612

Tubing 1-1/8" O.D. x 20.12" Lg-I

$

$

Not available

31

White Outdoor 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

32

White Outdoor 710-0776

Hex "AB"-TapScr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 723-0296

Hood Latch Ass'y.

$

$

Not available

34

15968

Grass Catcher Adapter

$

$

Not available

35

15362

Grass Catcher Support Brk't.-R.H.

$

$

Not available

36

White Outdoor 712-0267

HexNut5/16-18Thd.*
(Superseded to 912-3010)

$

$

Not available

37

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x . 50" Lg.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x . 50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

15459

Hitch Bracket

$

$

Not available

41

White Outdoor 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4 20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 15981

Grass Bag Frame Ass'y.

$

$

Not available

43

749-0616

Grass Catcher Handle 26.75

$

$

Not available

44

White Outdoor 764-0209

G rass Catcher Bag

$

$

Not available

45

White Outdoor 15992

Catcher Side Frame Ass'y.

Variations

White Outdoor 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 736-0175

L.-Wash. .270" I.D. x .57" O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

47

White Outdoor 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

48

White Outdoor 749-0615

Bottom Cross Brace 30.36" Lg. *

$

$

Not available

49

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg. *
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 15993

Catcher Side Frame Assy.-L. H .

Variations

White Outdoor 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

51

15972

Chute Extension Assy.

$

$

Not available

52

Not Part of Kit

$

$

Not available

53

White Outdoor 15995

Grass Catcher Support Plate

$

$

Not available

54

White Outdoor 736-0171

L.-Wash. 7/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

55

White Outdoor 712-0240

Hex Nut 7/16-20 Thd.*
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-0915

Hex AB Tap Scr. 5/16-18 x 1" Lg.

$

$

Not available

57

White Outdoor 710-0314

HexBolt 7/16-20 x 1.00" Lg. *

$4.49

$

Usually ships in 3-6 days

0

58

White Outdoor 726-0221

Push Cap

$6.49

$

Usually ships in 3-6 days

0

59

712-0247

Speed Nut

$

$

Not available

60

White Outdoor 710-0380

Hex Bolt 5/16-18 x 1.75" Lg. *
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

White Outdoor 748-0193

Spacer
(Superseded to 948-0193)

$

$

Not available

62

White Outdoor 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D. x .187 Thk.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

63

White Outdoor 16024

Tie Strap

$

$

Not available
