1P70L0A-11 - MTD Engine 1P70L0A-11 Crankcase Parts Diagram

Engine

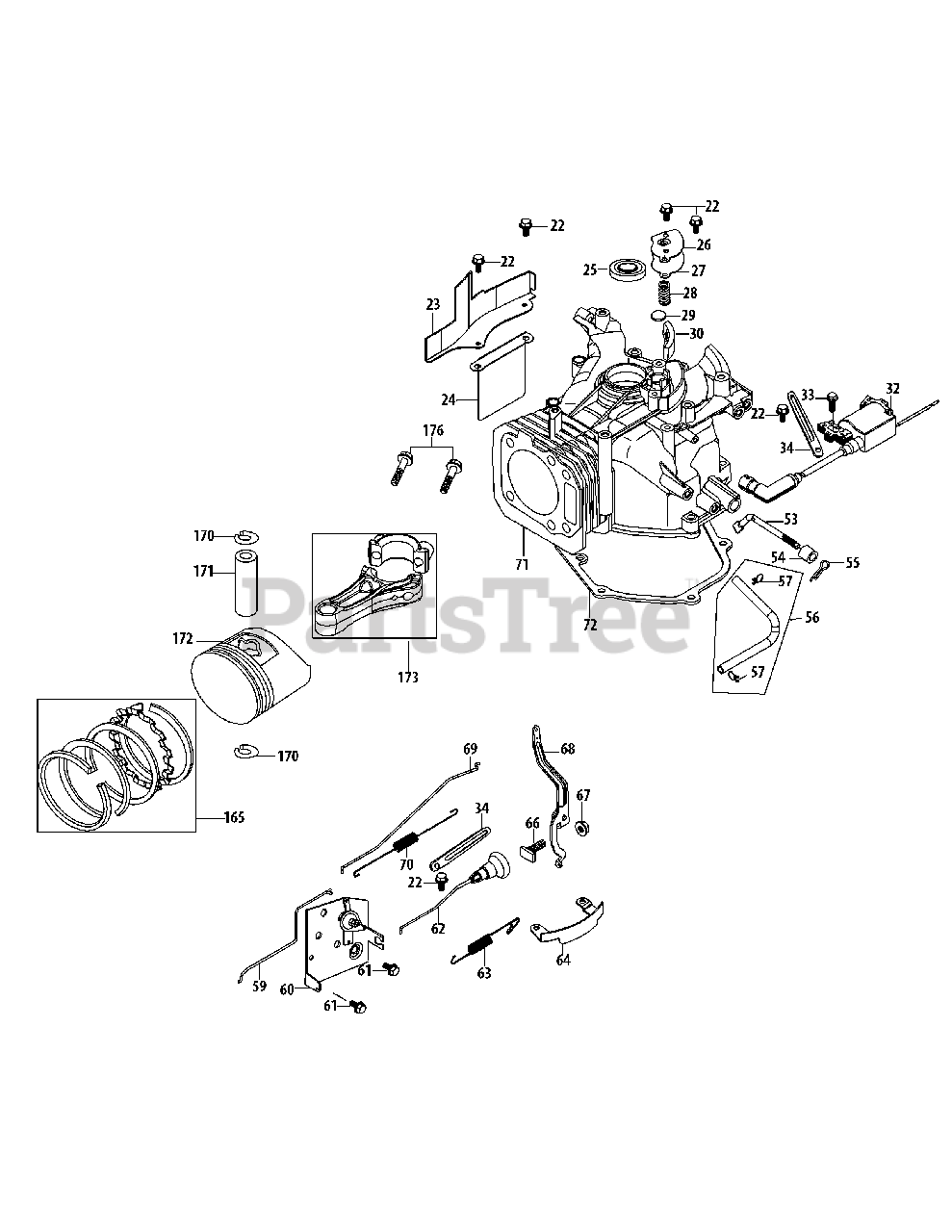

1P70L0A-11 Crankcase Parts Diagram

  • Title

22

MTD 710-04916

Bolt M6×14

$4.49

$

In Stock, only 2 left!

0

23

MTD 951-12104

Air Guide Bracket

$

$

Not available

24

MTD 951-11602

Label Bracket

$6.49

$

Usually ships in 3-6 days

0

25

MTD 951-11545

Upper Crankshaft Seal
(Superseded to 951-11545A)

$9.99

$

In Stock, only 4 left!

0

26

MTD 951-11612

Breather Cover Plate
(Superseded to 951-11728)

$6.99

$

Usually ships in 3-6 days

0

27

MTD 951-11613

Breather Gasket
(Superseded to 951-11729)

$4.99

$

Usually ships in 3-6 days

0

28

MTD 732-04718

Breather Spring

$4.49

$

Usually ships in 3-6 days

0

29

MTD 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

30

MTD 951-11762

Mesh Screen

$

$

Not available

32

MTD 951-10931

Ignition Coil Assembly

$

$

Not available

33

MTD 710-04979

Bolt M6×18

$3.99

$

Usually ships in 3-6 days

0

34

MTD 951-11680

Flexible Clamp

$3.99

$

Usually ships in 3-6 days

0

53

MTD 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.49

$

Usually ships in 3-6 days

0

54

MTD 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

55

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

$3.99

$

Usually ships in 3-6 days

0

56

MTD 951-11260

Breather Hose Assembly

$5.49

$

Usually ships in 3-6 days

0

57

MTD 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

59

MTD 951-12107

Choke Linkage

$5.49

$

In Stock, only 1 left!

0

60

MTD 951-12170

Variable Speed Control Brkt

$

$

Not available

61

MTD 710-04941

Bolt M6×12
(Superseded to 710-05103)

$3.99

$

In Stock, only 2 left!

0

62

MTD 951-12187

Choke Control Knob

$10.99

$

Usually ships in 3-6 days

0

63

MTD 951-10387

Governor Spring

$6.99

$

In Stock, Qty 11

0

64

MTD 951-12171

Governor Arm Shield

$

$

Not available

66

MTD 710-04908

Governor Arm Bolt

$5.99

$

Usually ships in 3-6 days

0

67

MTD 712-04212

Nut M6
(Superseded to 712-05015)

$6.49

$

Usually ships in 3-6 days

0

68

MTD 951-12172

Governor Arm

$

$

Not available

69

MTD 951-11259

Throttle Linkage

$7.49

$

Usually ships in 3-6 days

0

70

MTD 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

71

MTD 951-11992

Short Block Assembly

Note: (Incl.22,25-30,53-55,71-74,79,81-83,93-99,107,135,136,152,155,160,161,163-165,170-176,176)

$

$

Not available

72

MTD 951-11763

Crankcase Cover Gasket

$12.99

$

Usually ships in 3-6 days

0

165

MTD 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.49

$

In Stock, Qty 5

0

170

MTD 951-11632

Piston Pin Snap Ring

$3.99

$

In Stock, only 2 left!

0

171

MTD 951-11633

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

172

MTD 951-11634

Piston

$

$

Not available

173

MTD 951-11768

Connecting Rod Assembly

$

$

Not available

176

MTD 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

MTD 951-11772

Gasket Kit - External

Note: Not shown (Incl.27,79,96,136,146,152,155)

$41.99

$

Usually ships in 3-6 days

0

MTD 951-12178

Carburetor Kit - Major
(Superseded to 951-12178A)

Note: Not shown (Incl.110,118,119,122-129,130,132)

$52.99

$

Usually ships in 3-6 days

0

MTD 951-11770

Gasket Kit - Complete

Note: Not shown (Incl.25,27,54,72,79,96,99,134,136,152,155,160)

$

$

Not available

MTD 952Z1P70L0A-11

Complete Engine
(Superseded to 952Z1X65LUA)

Note: Not shown

$609.99

$

Usually ships in 3-6 days

0
