201013X51A (7800256) - Murray 20" Walk-Behind Mower (2008) Handle Assembly Parts Diagram

20" Walk-Behind Mower

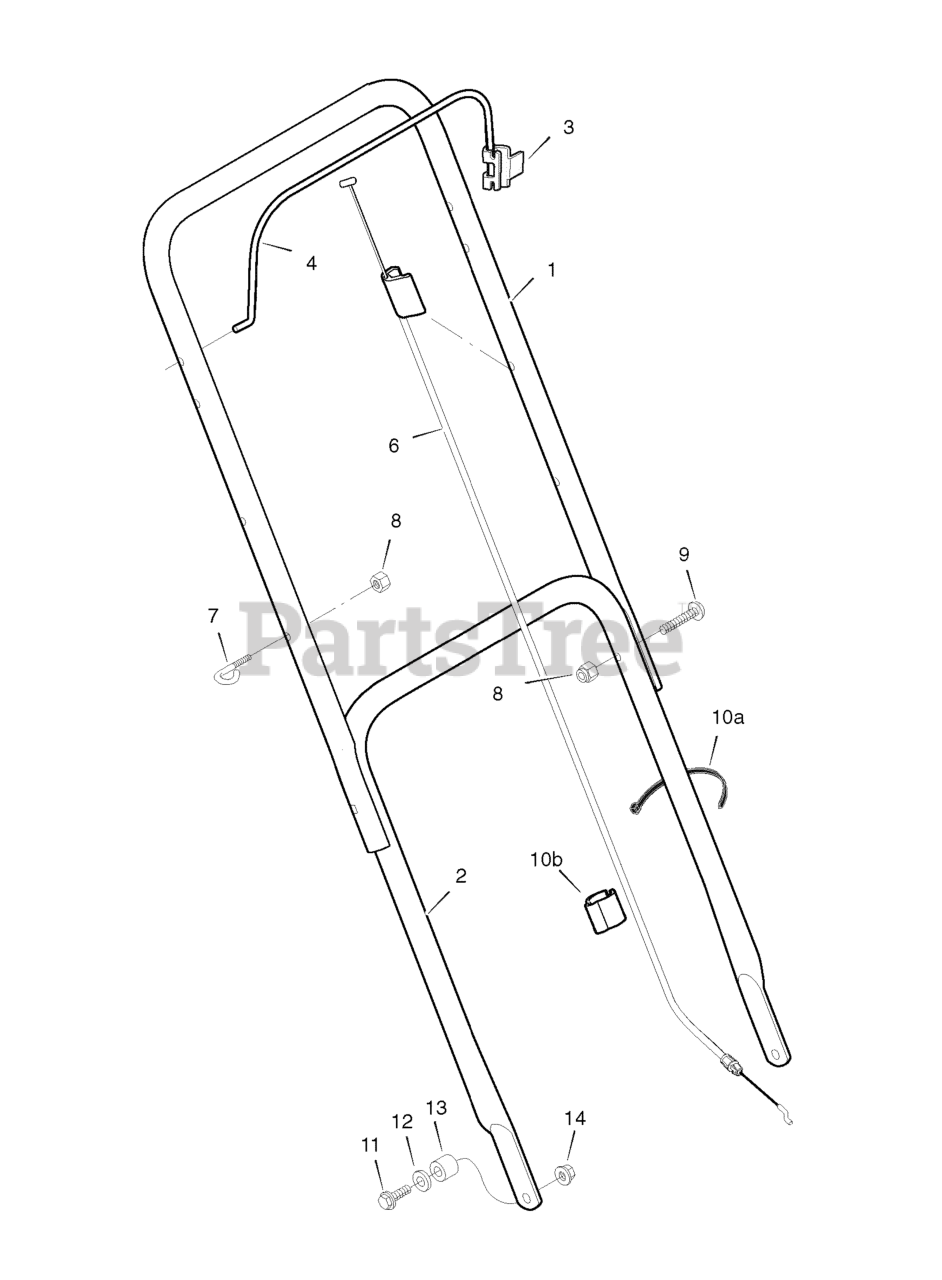

Handle Assembly Parts Diagram

  • Title

1

Murray 1101095E701MA

HANDLE, UPPER 20 SD PUSH
(Superseded to 7101741AYP)

$43.99

$

Usually ships in 2-12 days

0

2

Murray 1102085E701MA

HANDLE, LOWER 20

$37.99

$

Usually ships in 2-12 days

0

3

Murray 1101454E701MA

BRACKET, STOP LEVER

$20.99

$

In Stock, only 2 left!

0

4

Murray 7101742AYP

LEVER, STOP 20RB PUSH

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1101093MA

CABLE, STOP, 43.50 20PNFCLX LH

$14.99

$

In Stock, only 1 left!

0

7

Murray 043956MA

GUIDE, ROPE

$5.99

$

Usually ships in 2-12 days

0

8

Murray 15X116MA

NUT, HEX LOCK 1/4-20 BZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

9

Murray 03X136MA

RHMS 1/4-20 X 1.375 BZ

$3.49

$

Usually ships in 2-12 days

0

10a

Murray 7024641YP

WIRE TIE, 5.5"

$5.99

$

In Stock, only 1 left!

0

10b

Murray 1101352MA

CLIP, CABLE

$5.99

$

In Stock, only 2 left!

0

11

Murray 01X111MA

BOLT, HEX, 3/8-16 UNC X 1.50 BRIGHT ZINC

$4.49

$

In Stock, only 1 left!

0

12

Murray 845MA

WASHER, FLAT.390X1.25X.119Z
(Superseded to 17X168ZMA)

$6.49

$

Usually ships in 2-12 days

0

13

Murray 671914MA

SPACER, HANDLE

$7.49

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

NUT, HEX FLANGE, 3/8-16 NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

--

Murray 1740547MA

DECAL, MURRAY 50 (not shown)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 7029782MA

DECAL, OPC BAIL INT'L SYMBOL (not shown)

$12.99

$

Usually ships in 2-12 days

0

--

Murray 7101084YP

DECAL, WARNING, EURO (not shown)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 672733MA

BAG, PARTS 20SD (not shown)

$22.99

$

In Stock, only 1 left!

0
