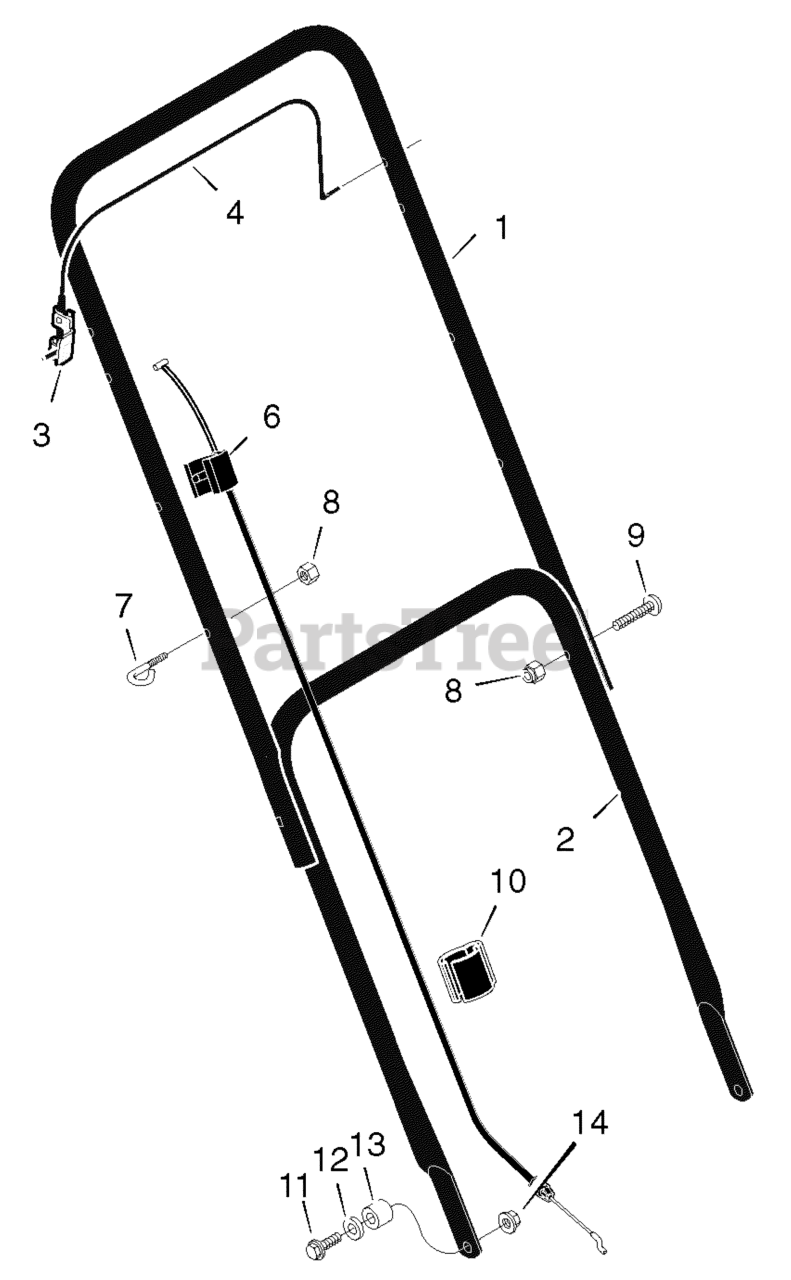

20104F - Murray 20" Walk-Behind Mower (2004) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 1101095E701

Handle, Upper (Black)

$43.99

$

Usually ships in 2-12 days

0

2

Murray 672874E701

Handle, Lower (Black)

$113.99

$

Usually ships in 2-12 days

0

3

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 2 left!

0

4

Murray 671924E701

Lever, Stop

$

$

Not available

6

Murray 1101094

Engine Stop Cable

$13.99

$

Usually ships in 2-12 days

0

7

Murray 43956

Guide, Rope

$

$

Not available

8

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

9

Murray 03X136

Screw

$3.49

$

Usually ships in 2-12 days

0

10

Murray 1101352

Clip, Cable

$5.99

$

In Stock, only 2 left!

0

11

Murray 01X111

Bolt
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

12

Murray 845

Washer

$1.49

$

Usually ships in 2-12 days

0

13

Murray 671914

Spacer

$7.49

$

Usually ships in 2-12 days

0

14

Murray 015X84

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
