2024780 - Simplicity 54" Mower Deck, Center-Mounted Spindle Assembly Group (3482I55) Parts Diagram

54" Mower Deck, Center-Mounted

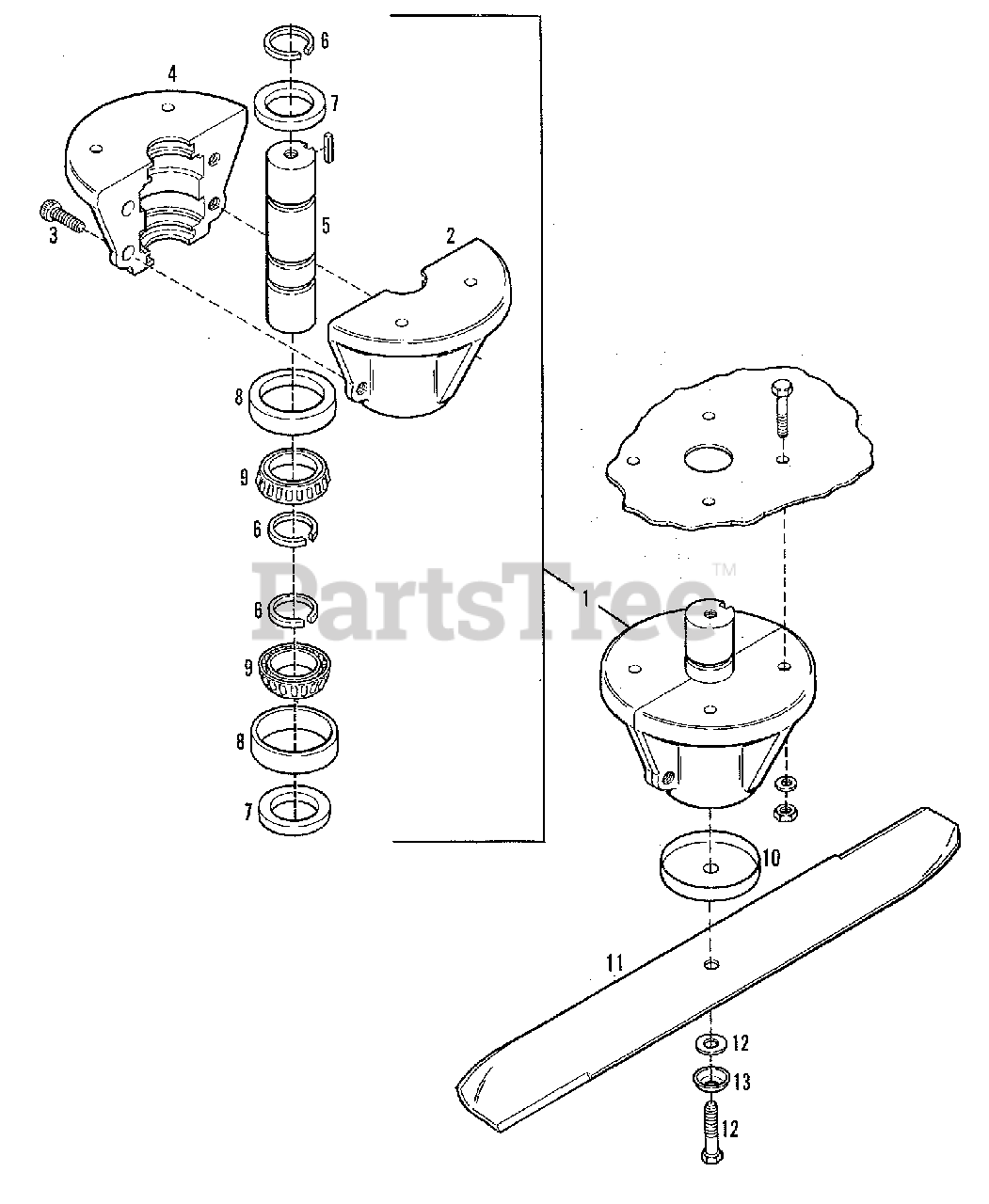

Spindle Assembly Group (3482I55) Parts Diagram

  • Title

1

Simplicity 2107318-4

SPINDLE ASSEMBLY, Mower

$

$

Not available

1

Simplicity 0921346-3

KEY, Square, 1/4 x 1" Long

$

$

Not available

1

Simplicity 0922605-1

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

1

Simplicity 0916956-6

WASHER, Flat, 3/8

$

$

Not available

1

Simplicity 0919439-0

NUT, Lock, 3/8NC

$

$

Not available

2

Simplicity 2107366-3

HOUSING, Half, w/o Vent

$

$

Not available

3

Simplicity 2107360-6

CAPSCREW, Socket Head, 3/8NC x 1-1/2

$

$

Not available

4

Simplicity 2107359-8

HOUSING, Half, w/ Vent

$

$

Not available

5

Simplicity 2107365-5

SHAFT, Spindle

$

$

Not available

6

Simplicity 2107361-4

RING, Retaining, Spindle

$

$

Not available

7

Simplicity 2107362-2

SEAL, Spindle

$

$

Not available

8

Simplicity 2107363-0

CUP, Bearing

$

$

Not available

9

Simplicity 2107364-8

CONE, Bearing

$

$

Not available

10

Simplicity 2107322-6

WASHER, Spline, Cupped

$

$

Not available

11

Simplicity 2107319-2

BLADE, Mower

$

$

Not available

12

Simplicity 2107320-0

CAPSCREW, Blade, L.H. Thread 5/8NC x 1-1/2

$

$

Not available

12

Simplicity 0919328-5

WASHER, Flat, 5/8

$

$

Not available

13

Simplicity 2107321-8

WASHER, Belleville Disk, 5/8"

$

$

Not available
