20357 - Toro 22" Recycler Walk-Behind Mower (SN: 402085000 - 404329999) Ignition and Electrical Assembly Parts Diagram

22" Recycler Walk-Behind Mower

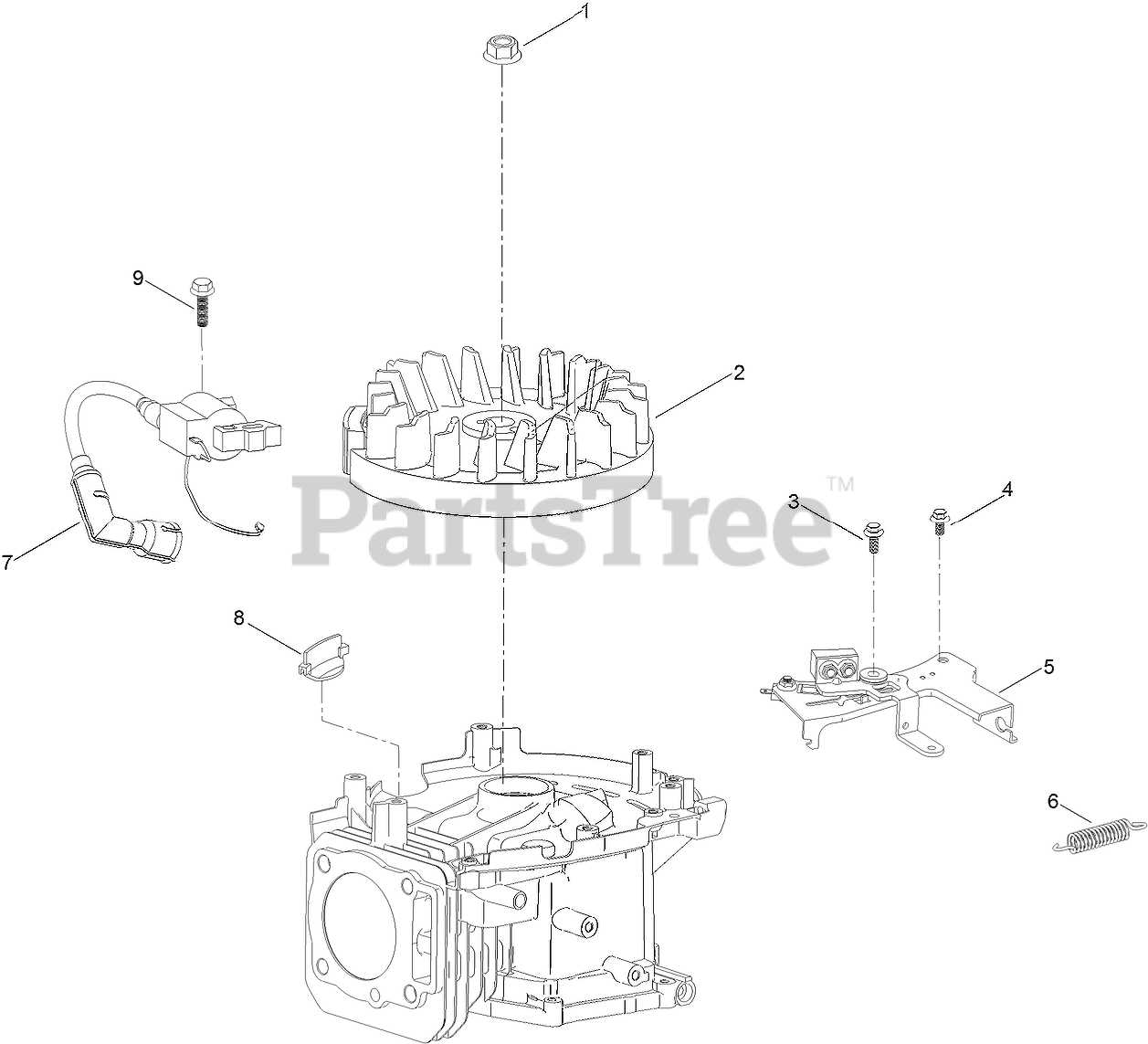

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 133-9876

FLYWHEEL
(Superseded to 139-0618)

$74.99

$

Usually ships in 3-6 days

0

3

Toro 121-0007

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

4

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

5

Toro 136-7872

BRAKE ASM

$40.99

$

Usually ships in 3-6 days

0

6

Toro 133-9890

SPRING-BRAKE

$0.99

$

Usually ships in 3-6 days

0

7

Toro 136-7870

IGNITION COIL ASM

$65.99

$

In Stock, only 1 left!

0

8

Toro 133-9881

GUARD-FLYWHEEL

$1.99

$

Usually ships in 3-6 days

0

9

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0
