2054F (55AF3B6K195) - MTD Pro Hydro Walk-Behind Mower Kohler Engine Air Intake Parts Diagram

Pro Hydro Walk-Behind Mower

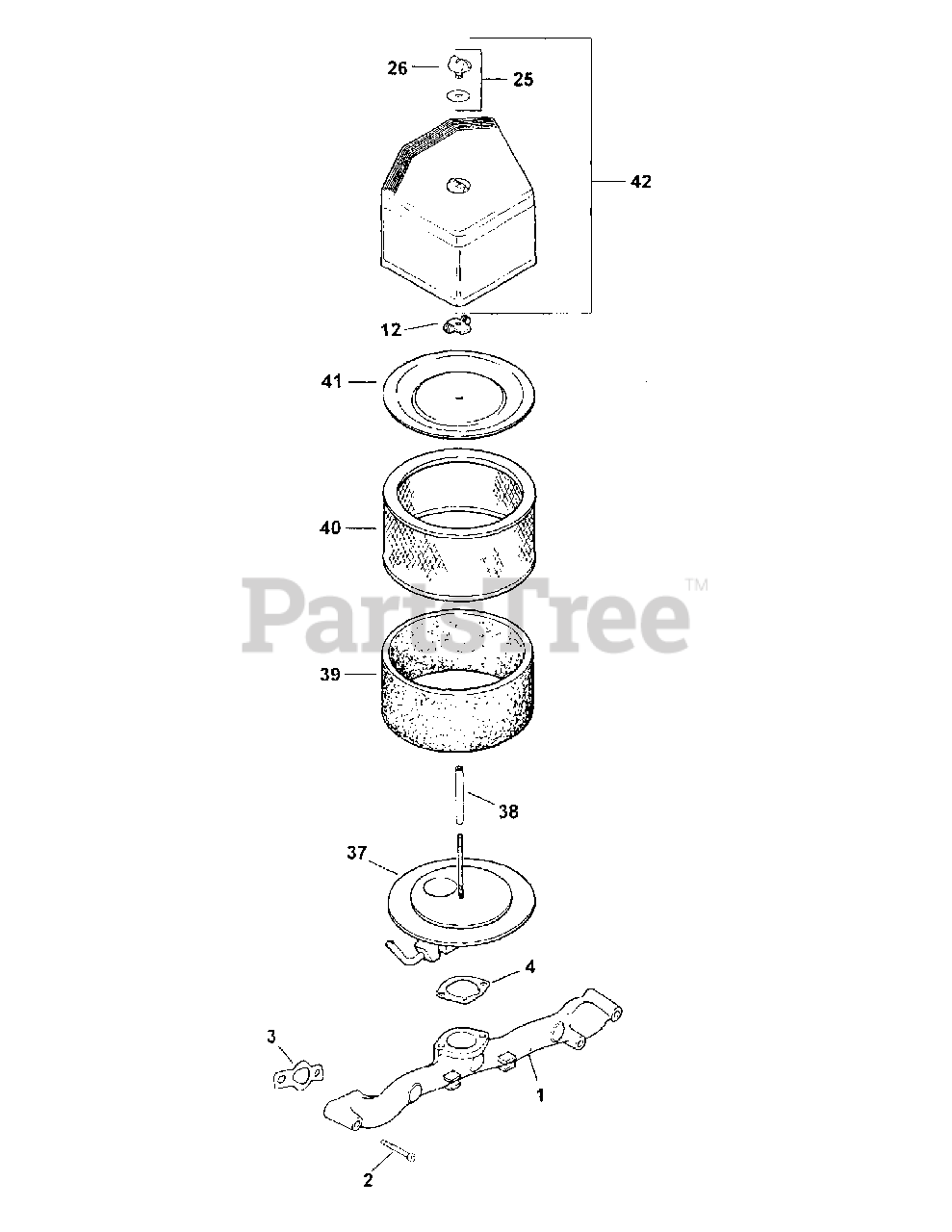

Kohler Engine Air Intake Parts Diagram

  • Title

1

MTD KH-24-164-06

Manifold, Intake

$

$

Not available

2

MTD KH-25-086-84-S

Screw, Hex Flange
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

3

MTD KH-24-041-01

Gasket, Intake Manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

4

MTD KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

12

MTD KH-12-100-01

Nut, Wing

$3.99

$

In Stock, Qty 11

0

25

MTD KH-54-755-01-S

Kit, Air Cleaner Knob w/Gasket

$9.49

$

In Stock, Qty 16

0

26

MTD KH-25-341-03

Knob, Air Cleaner Cover

$

$

Not available

37

MTD KH-24-054-02-S

Elbow, Air Cleaner

$

$

Not available

38

MTD KH-24-032-04

Seal

$

$

Not available

39

MTD n/a

Element, Precleaner

$

$

Currently unavailable

40

MTD KH-45-883-02-S1

Elements, Air Cleaner & Precleaner
(Superseded to 4588302S1C)

$27.99

$

In Stock, Qty 6

0

41

MTD KH-52-082-04

Cover, Air Cleaner Element

$

$

Not available

42

MTD KH-24-743-11

Kit, Air Cleaner Cover

$

$

Not available
