20570 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

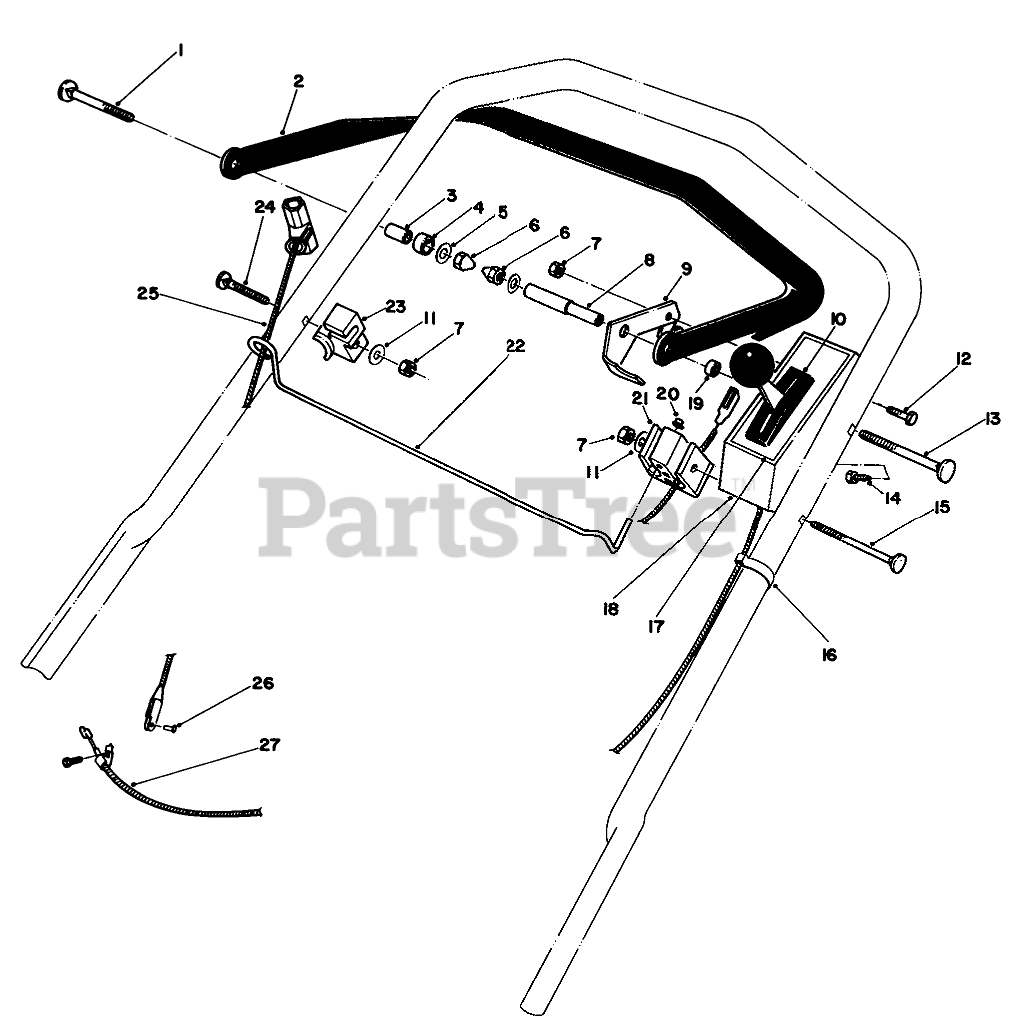

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

2

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

3

Toro 46-5580

Spacer

$

$

Not available

4

Toro 256-276

SPACER-NYLON

$2.99

$

In Stock, only 2 left!

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 46-9380

Spacer

$

$

Not available

9

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

10

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 17-9423

5/16-18X3.75 HDLE SCREW

$

$

Not available

14

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 46-6432

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

16

Toro 218-465

BOWDEN CLIP

$

$

Not available

17

Toro 46-8070

Decal-Control Cover

$

$

Not available

18

Toro 11-4579

Panel-Control (Incl. Ref. #17)

$

$

Not available

19

Toro 46-6240

Nylon Spacer

$

$

Not available

20

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

21

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

22

Toro 46-7970

ROPE ROD PLATED

$

$

Not available

23

Toro 46-7960

ROD CATCH

$19.99

$

Usually ships in 3-6 days

0

24

Toro 46-6430

SCREW-HANDLE

$11.99

$

Usually ships in 3-6 days

0

25

Rope-Starter

Note: Obtain from your local Tecumseh dealer.

$

$

Not available

26

Toro 2210-251

RIVET

$

$

Not available

27

Toro 46-8011

BRAKE CABLE

$91.99

$

Usually ships in 3-6 days

0
