20594 - Troy-Bilt Pony III Rear-Tine Tiller (SN: S101751 - S164132) WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

Pony III Rear-Tine Tiller

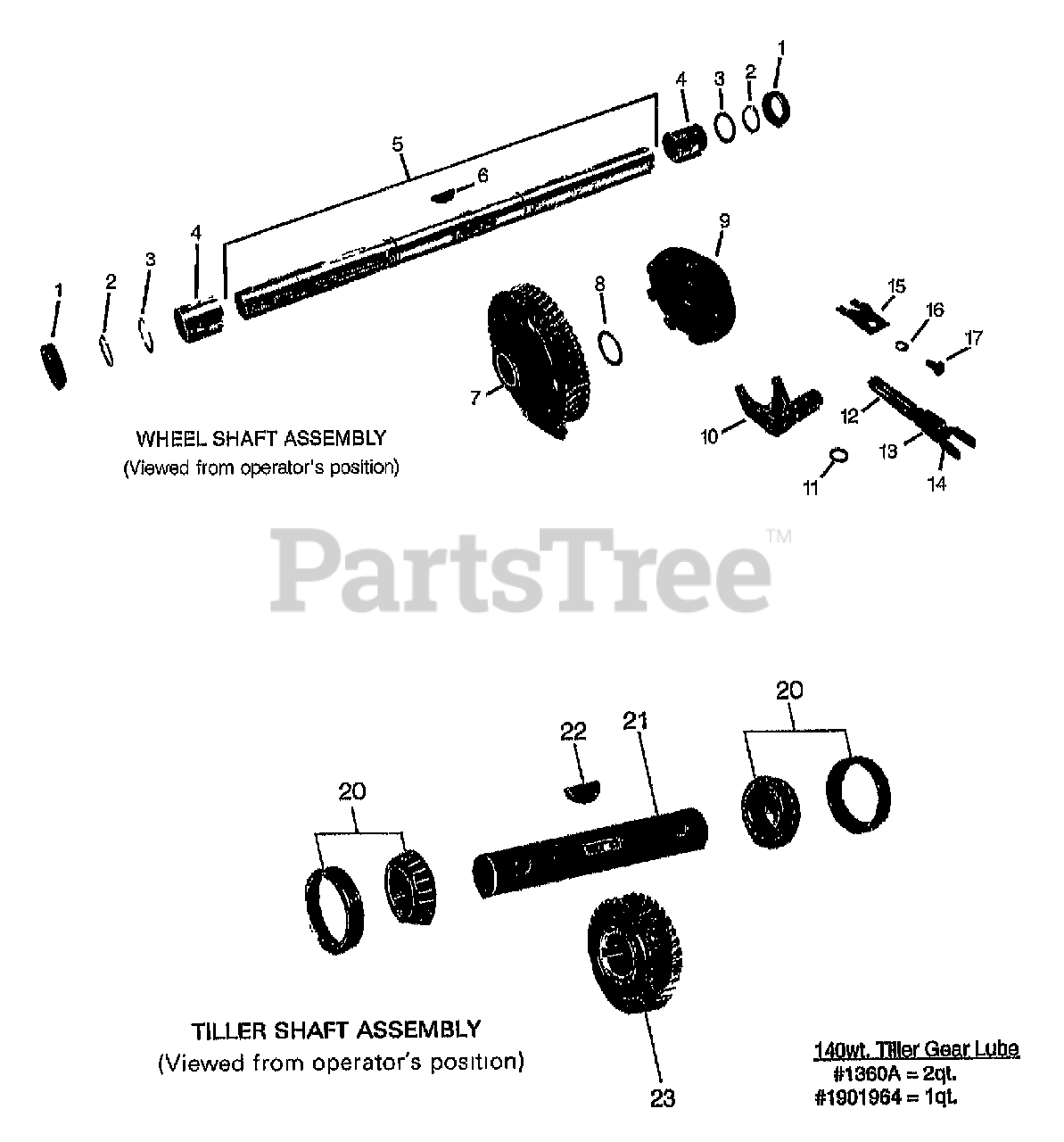

WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 9621

OIL SEAL--LEFT AND RIGHT SIDES
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

RING--RETAINING, HEAVY-DUTY,EXTERNAL
(Superseded to 716-04104)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

SHIM--1 1/64"I.D.,0.062" THICK
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

3

Troy-Bilt 1166-2

SHIM--AS ABOVE, ONLY 0.030" THICK
(Superseded to 736-04260)

$6.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-3

SHIM--AS ABOVE, ONLY 0.015" THICK
(Superseded to 736-04259)

$6.49

$

In Stock, Qty 19

0

3

Troy-Bilt 1166-4

SHIM--AS ABOVE, ONLY 0.010" THICK
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

BUSHING--
(Superseded to 941-04300)

$15.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 20660

WHEEL SHAFT--(INCL.#9305 KEY)

$

$

Currently unavailable

6

Troy-Bilt 9305

KEY--HI-PRO, 1/4"X1", CLUTCH TO WHEEL SHAFT
(Superseded to 714-04059)

$6.49

$

In Stock, Qty 8

0

7

Troy-Bilt 20535

GEAR--WHEEL DRIVE(WORM GEAR), CAST IRON

$

$

Currently unavailable

8

Troy-Bilt 9935

SHIM--BETWEEN KEY AND GEAR, 1.016"I.D.X1. 468" O.D.X.062" THICK
(Superseded to GW-9935)

$3.49

$

In Stock, only 1 left!

0

9

Troy-Bilt 20304

CLUTCH--WHEEL DRIVE, CAST IRON

$

$

Currently unavailable

10

Troy-Bilt 20318

YOKE--CLUTCH SHIFTING "O" RING--YOKE SHAFT,

$

$

Currently unavailable

11

Troy-Bilt 9603

OIL SEAL, FITS IN GROVE CLOSEST TO YOKE

$

$

Currently unavailable

12

Troy-Bilt 20321

PINION--FOR CLUTCH YOKE

$

$

Currently unavailable

13

Troy-Bilt 9339

PIN-SPIRAL, 3/16" DIAMETER X 7/8" LONG

$

$

Currently unavailable

14

Troy-Bilt 20350-02

UNIVERSAL--FOR CLUTCH FORK PINION

$

$

Currently unavailable

15

Troy-Bilt 20325

PLATE-FRICTION

$

$

Currently unavailable

16

Troy-Bilt 9910

LOCKWASHER--1/4"

$

$

Currently unavailable

17

Troy-Bilt 9743

BOLT--HEX HEAD, 1/4"-20X1/2"

$

$

Currently unavailable

20

Troy-Bilt 1715

BEARING--TAPERED ROLLER, WITH CUP (RACE), TILLER SHAFT, LEFT AND RIGHT SIDES

$

$

Currently unavailable

21

Troy-Bilt 20437

TILLER SHAFT, WITH #1104 KEY IT-TILLER GEAR PONY 1-4

$

$

Currently unavailable

22

Troy-Bilt 1104

KEY--WOODRUFF, 1/4" X 1 1/4", TILLER SHAFT /WORM GEAR
(Superseded to GW-1104)

$8.99

$

In Stock, only 3 left!

0

23

Troy-Bilt 20306

WORM GEAR--BRONZE, TILLER DRIVE

$

$

Currently unavailable
