2086 (14A-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Battery, Battery Tray And Electrical Components Parts Diagram

Super Garden Tractor

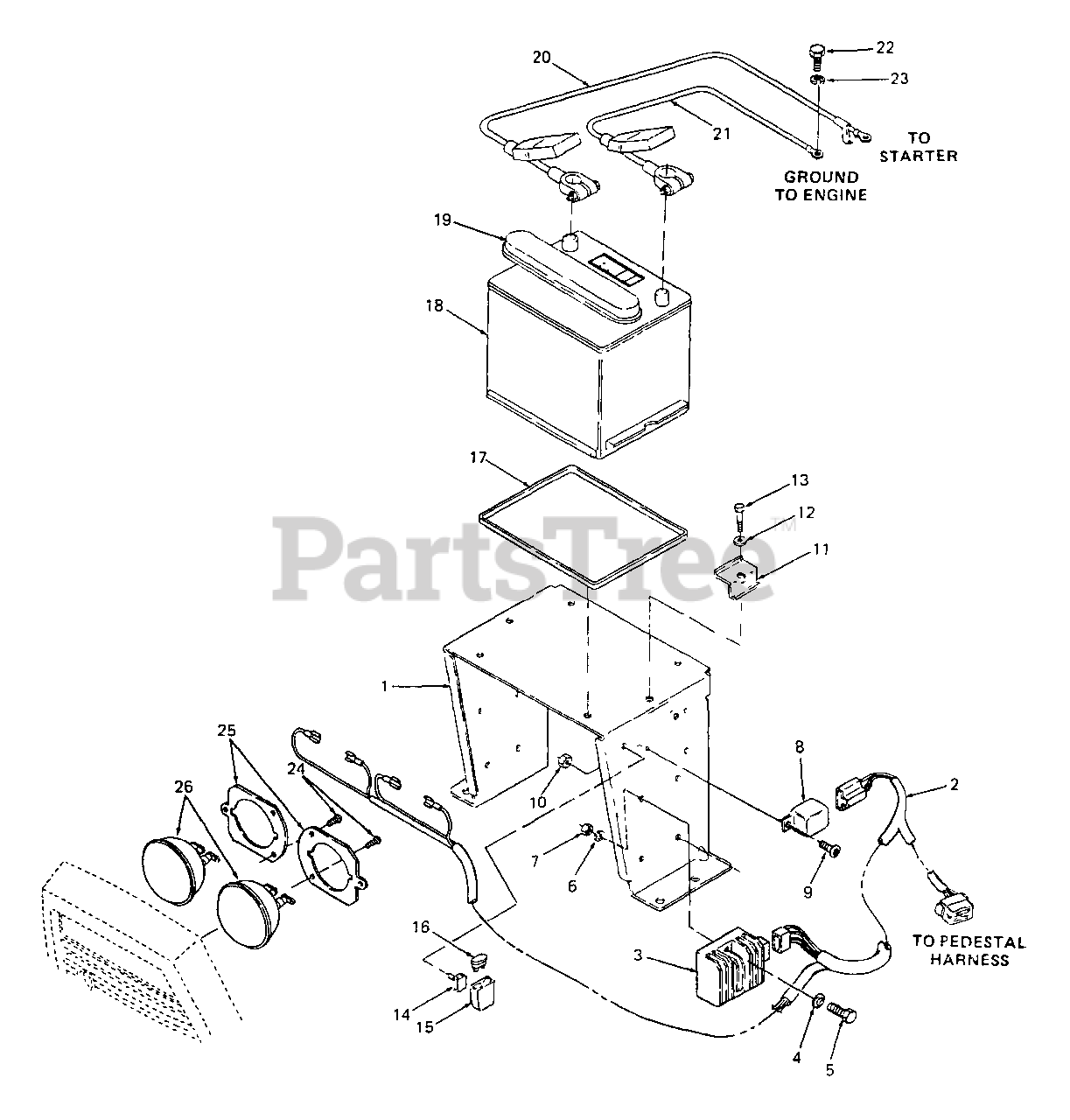

Battery, Battery Tray And Electrical Components Parts Diagram

  • Title

1

Cub Cadet 703-1892

Tray Assy, Battery

$

$

Not available

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 629-3018

Harness, Main Wire

$

$

Not available

Cub Cadet 725-0157

Tie, Self Clinching Cable

$3.49

$

In Stock, only 4 left!

0

Cub Cadet 726-0154

Tie, Push Mount Cable
(Superseded to 926-0154)

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 726-3049

Tie, Cable
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

3

Cub Cadet KM-21066-2070

Regulator, Voltage

$131.99

$

In Stock, only 3 left!

0

4

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062 Thk

$3.99

$

In Stock, Qty 10

0

5

Cub Cadet 710-0106

Screw, Hex Cap, 1/4-20 x 1.25 Lg

$3.99

$

In Stock, only 1 left!

0

6

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 725-1375

Relay
(Superseded to 925-1375)

$66.99

$

In Stock, Qty 6

0

9

Cub Cadet 710-0473

Screw, Truss Mach, #10-24 x .50 Lg

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-0998

Nut, Hex, Center Lock, #10-24

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-1823

Hold Down, Battery
(Superseded to 703-1823-0716)

Variations

Cub Cadet 703-1823-0716

Battery Hold-Down - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

Cub Cadet 736-0275

Washer, Flat, .34 x .68 x .062 Thk

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2.0 Lg

$4.49

$

In Stock, Qty 13

0

14

Cub Cadet 729-0209

Clip, Fuse Holder Mtg

$

$

Not available

15

Cub Cadet 729-0207

Holder, Fuse

$

$

Not available

16

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$5.99

$

In Stock, Qty 14

0

17

Cub Cadet 731-3105

Tray, Battery

$

$

Not available

18

Cub Cadet 725-3174

Battery
(Superseded to 925-04514)

$314.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 759-3653

Cap, Battery Vent

$

$

Not available

Cub Cadet 759-3654

Tube, Battery Vent

$

$

Not available

20

Cub Cadet 725-3199

Cable, Positive Battery
(Superseded to 925-3199)

$

$

Not available

Cub Cadet 726-0215

Strap, Tie

$

$

Not available

21

Cub Cadet 725-3192

Cable, Negative Battery

$

$

Not available

22

Cub Cadet 710-3137

Screw, Hex Cap, M8 x 1.25 x 20 MM GR5

$

$

Not available

23

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0748

Screw, Pan Hd Tapp, #12 x .50 Lg

$

$

Not available

25

Cub Cadet 703-2759

Plate, Headlamp Mounting
(Superseded to 703-2759-0637)

Variations

Cub Cadet 703-2759-0637

Headlight Retainer - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

26

Cub Cadet 725-0222

Headlamp, Sealed Beam
(Superseded to 925-0222)

$54.99

$

In Stock, Qty 5

0
