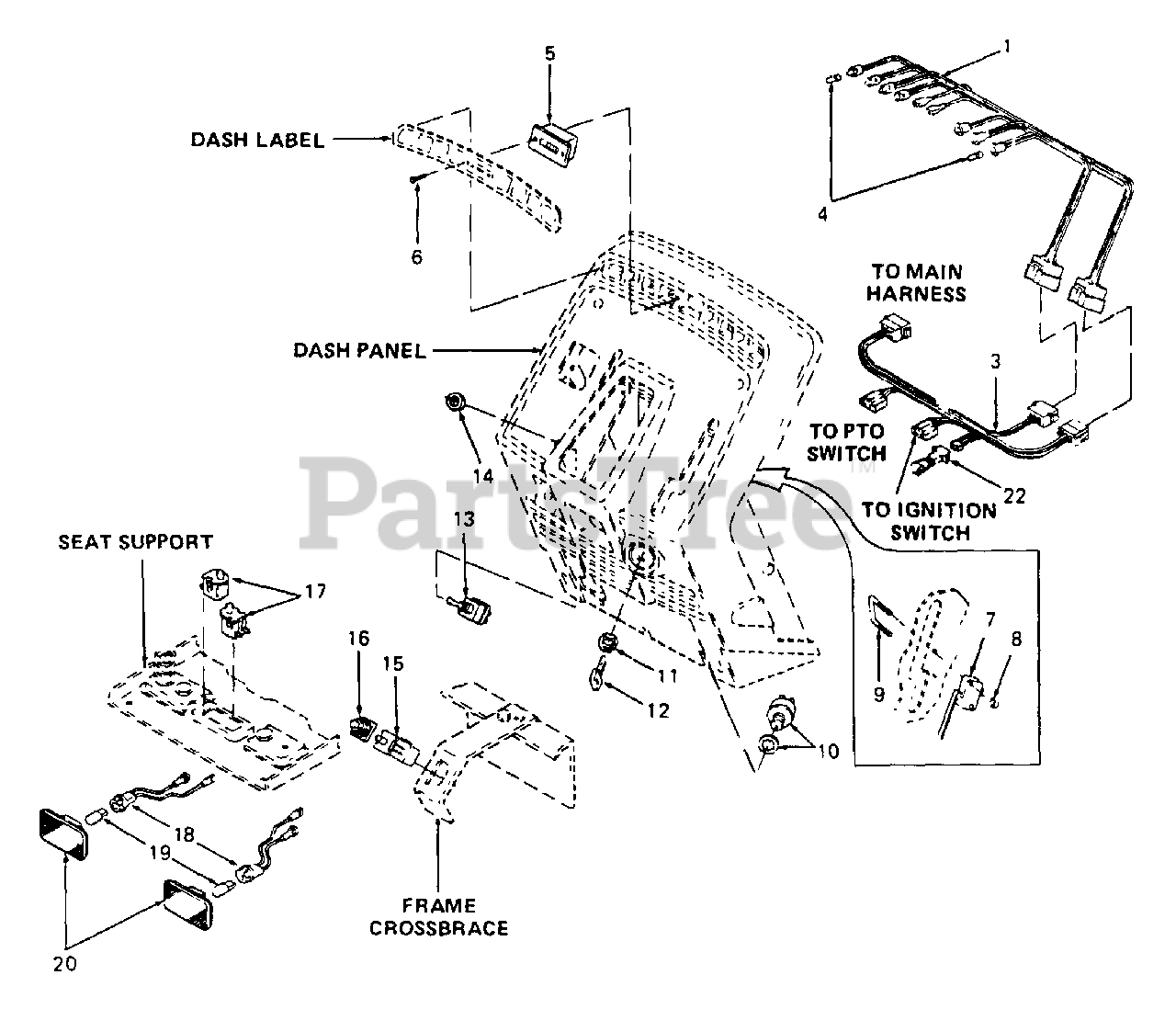

2086 (14A-735-100) - Cub Cadet Super Garden Tractor (SN: 880001 - 899000) Electrical Parts Diagram

Super Garden Tractor

Electrical Parts Diagram

  • Title

1

Cub Cadet 629-3019

Harness, Indicator Wire

$

$

Not available

?2

Cub Cadet 725-3208

Diode Assy

$

$

Not available

3

Cub Cadet 725-3205

Harness, Pedestal

$

$

Not available

4

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0

5

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

6

Cub Cadet 710-0936

Screw, Truss Hd Tapp, #6 x .62 Lg

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 725-3066

Switch, Reverse
(Superseded to 925-3066)

$

$

Not available

8

Cub Cadet 712-3052

Nut, Hex Insert Lock, #4-40

$

$

Not available

9

Cub Cadet 711-3259

Screw, Switch

$

$

Not available

10

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$44.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3013

Nut, Ignition Switch

$

$

Not available

12

Cub Cadet 759-3476A

Key, Ignition
(Superseded to 925-0201)

Note: Set of 2

$8.99

$

In Stock, Qty 11

0

13

Cub Cadet 725-0893

Switch, PTO
(Superseded to 925-0893)

$76.99

$

In Stock, Qty 14

0

14

Cub Cadet 712-3014

Nut, Hex, 1/2-27 x .100 Thk

$

$

Not available

15

Cub Cadet 725-3191

Switch, Interlock
(Superseded to 925-3191A)

$50.99

$

In Stock, Qty 5

0

16

Cub Cadet 735-3036

Boot, Switch

$

$

Not available

17

Cub Cadet 725-3167

Switch, Snap Mount
(Superseded to 925-3167)

Note: Normally Open (Black)

$13.99

$

In Stock, only 4 left!

0

18

Cub Cadet 725-3019

Cable Assy, Tail Light

$

$

Not available

19

Cub Cadet 725-3020

Bulb, Tail Light

$

$

Not available

20

Cub Cadet 725-3018

Lens Assy, Tail Light

$

$

Currently unavailable

Cub Cadet 710-1302

Screw, Pan Hd, #8-32 x 1.50 Lg

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 750-0555

Spacer, .254 ID x .50 OD x .390 Lg

$

$

Not available

Cub Cadet 736-3006

Washer, Int-Ext Lock, 1/4

$5.99

$

In Stock, only 1 left!

0

Cub Cadet 712-0142

Nut, Hex Mach, #8-32

$4.49

$

In Stock, Qty 12

0

22

Cub Cadet 725-3208

Diode Assembly

$

$

Not available
