20911 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) GEARBOX ASSEMBLY NO. 71-8250 (MODEL NO. 20916B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

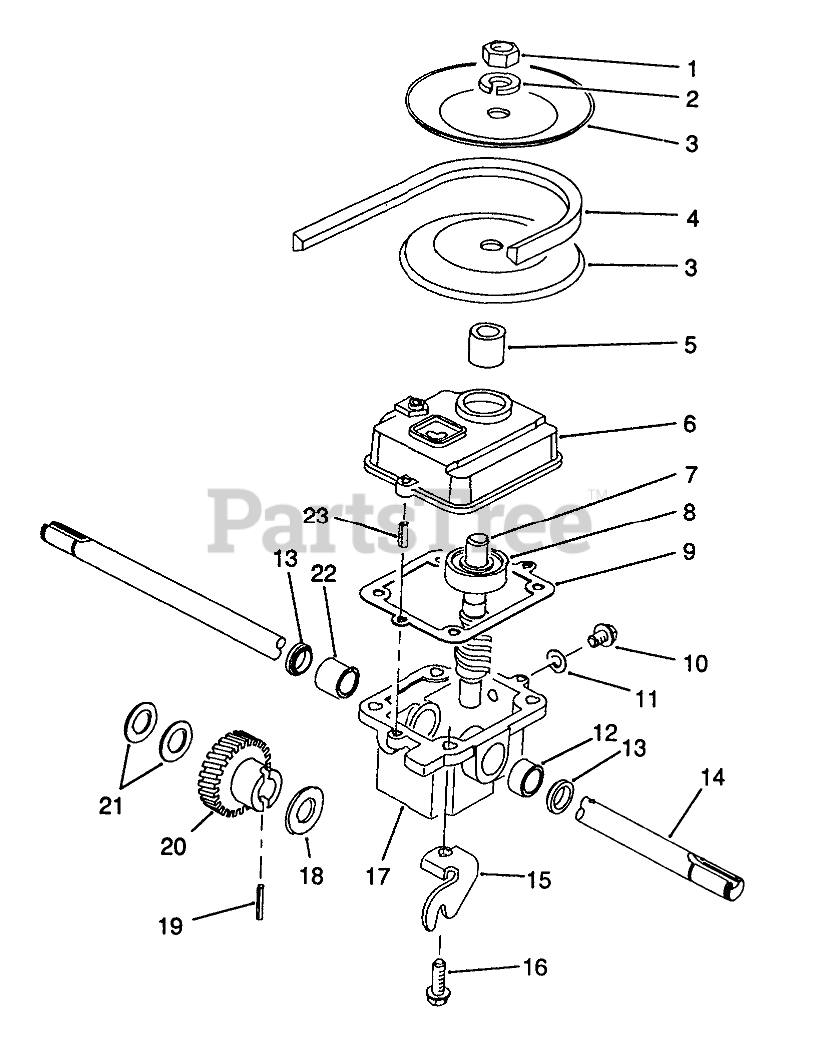

GEARBOX ASSEMBLY NO. 71-8250 (MODEL NO. 20916B) Parts Diagram

  • Title
1

Toro 3220-4

NUT-JAM

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 71-7750

PULLEY-DRIVEN HALF

$

$

Not available

4

Toro 71-8500

V-BELT

$

$

Not available

5

Toro 71-7570

SPACER - PULLEY

$

$

Not available

6

Toro 39-1103

GEAR CASE COVER

$

$

Not available

7

Toro 71-8050

SHAFT - WORM

$

$

Not available

8

Toro 47-7250

BEARING

$62.99

$

Usually ships in 3-6 days

0

9

Toro 36-1000

GASKET

$8.99

$

Usually ships in 3-6 days

0

10

Toro 28-1550

NYLON SCREW

$6.99

$

Usually ships in 3-6 days

0

11

Toro 46-9640

FILL PLUG GASKET

$5.49

$

Usually ships in 3-6 days

0

12

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

13

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

14

Toro 71-7880

OUTPUT SHAFT

$

$

Not available

15

Toro 71-8120

TRACTION BRACKET

$

$

Not available

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 33-2061

GEAR CASE

$

$

Not available

18

Toro 3-0724

THRUST WASHER

$

$

Not available

19

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

20

Toro 71-8140

GEAR - HELICAL

$95.99

$

Usually ships in 3-6 days

0

21

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 4 left!

0

22

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 5

0

23

Toro 32121-1

3/16 X 1/2 ROLL PIN

$3.99

$

In Stock, Qty 5

0
