20911 B - Toro 48cm Rear Bagging Walk-Behind Mower (SN: 020000001 - 029999999) (1992) H.P. REAR AXLE ASSEMBLY (MODEL NO. 20911B) Parts Diagram

48cm Rear Bagging Walk-Behind Mower

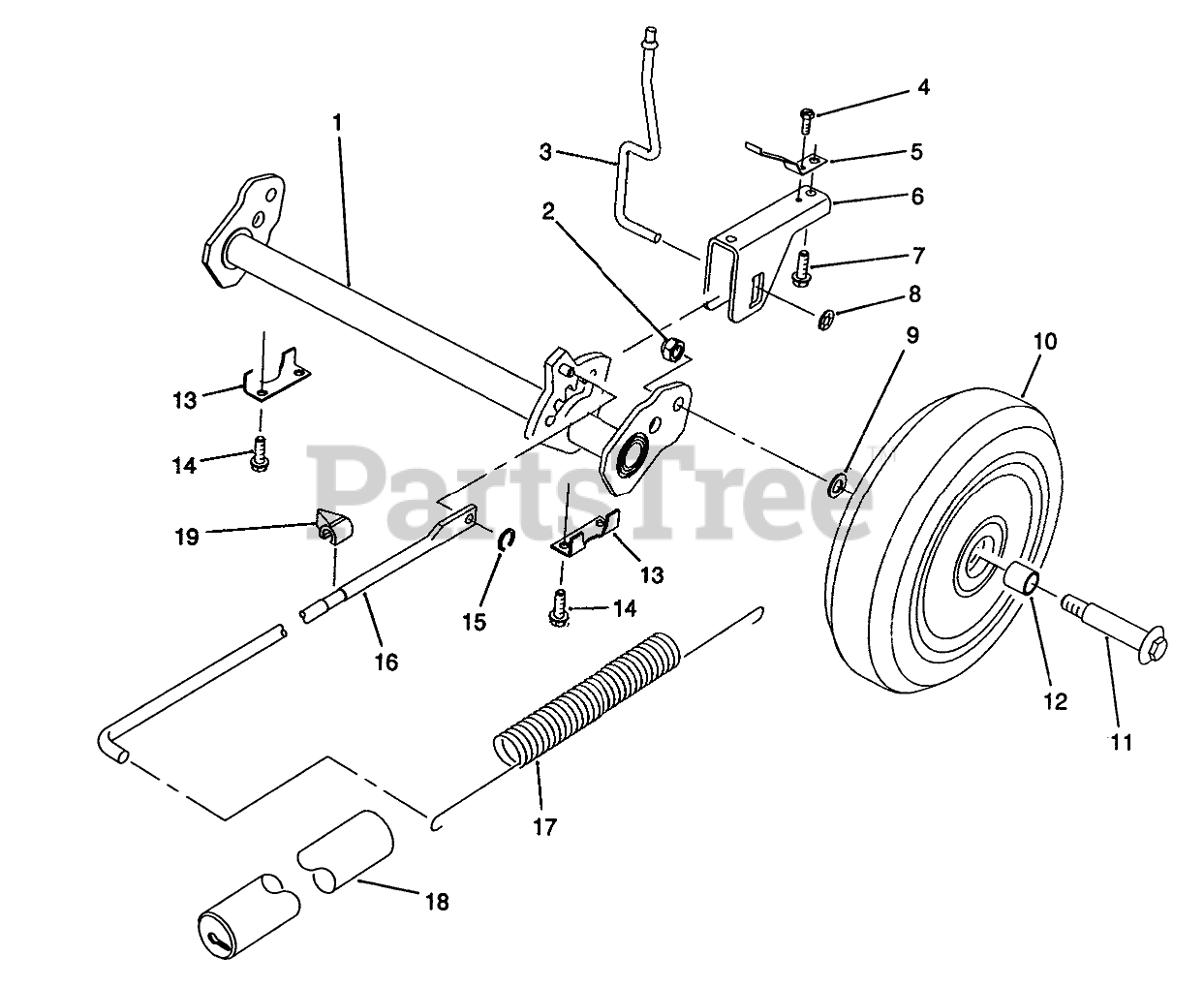

H.P. REAR AXLE ASSEMBLY (MODEL NO. 20911B) Parts Diagram

  • Title
1

Toro 71-7800

PIVOT ARM REAR WA

$247.99

$

Usually ships in 3-6 days

0

2

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

3

Toro 71-7840

TRIGGER ROD

$23.99

$

Usually ships in 3-6 days

0

4

Toro 32144-31

SCREW 8 - 32 X 250

$1.49

$

Usually ships in 3-6 days

0

5

Toro 71-8060

SPRING - TRIGGER RET

$

$

Not available

6

Toro 71-8080

SADDLE - HOC

$18.99

$

Usually ships in 3-6 days

0

7

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

8

Toro 32112-13

PUSHNUT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #12)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

11

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

12

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

13

Toro 71-7770

REAR SECURING PLATE

$

$

Not available

14

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 71-7970

LINK ROD

$

$

Not available

17

Toro 71-7740

SPRING-COUNTERBALANCE

$41.99

$

Usually ships in 3-6 days

0

18

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

19

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$8.49

$

Usually ships in 3-6 days

0
