210-700 - MTD Tiller (1990) Chain Parts Diagram

Tiller

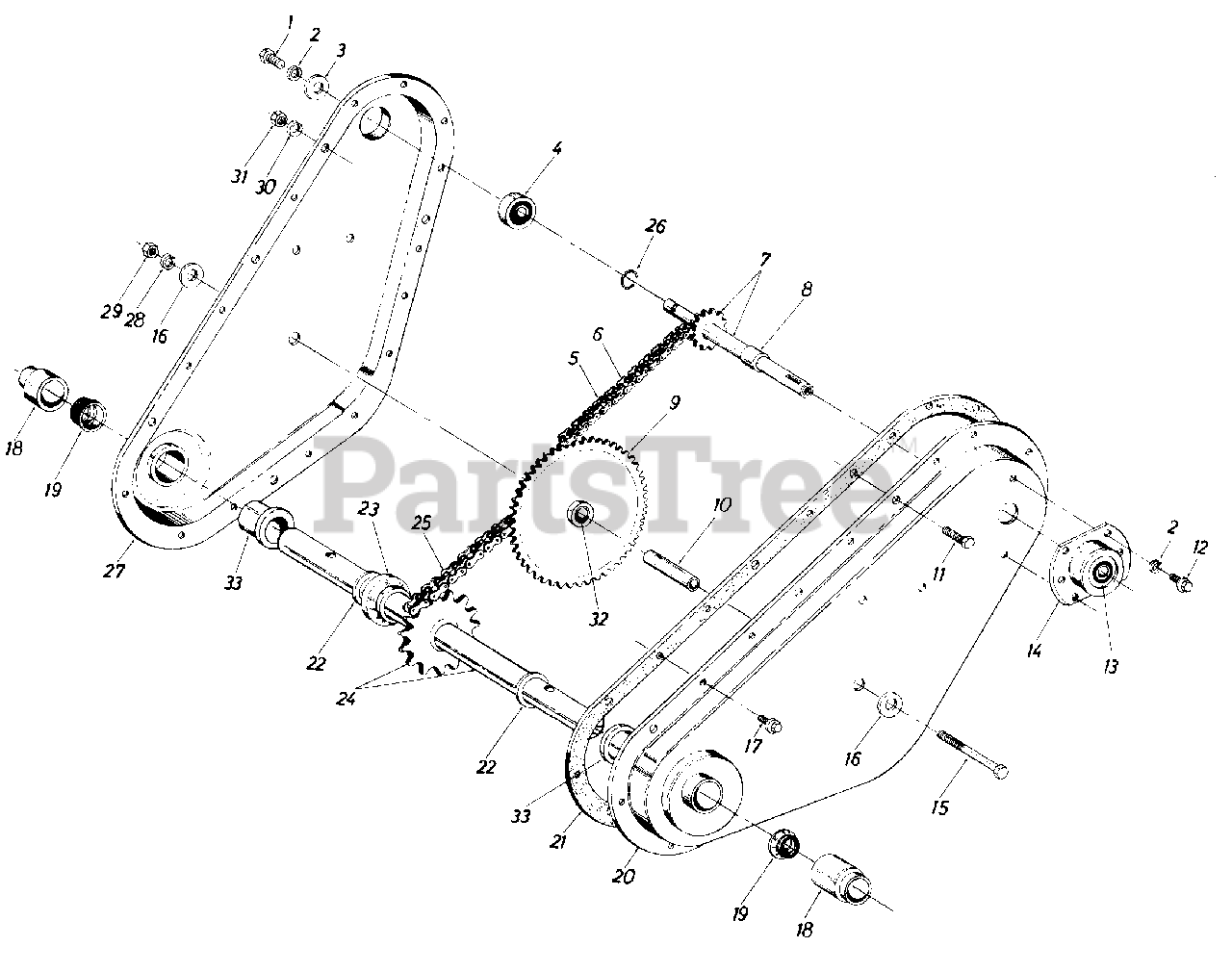

Chain Parts Diagram

  • Title
1

MTD 710-0513

Hex L-Bolt 1/4-28 x .625 Lg.
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

2

MTD 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 736-0176

Fl-Wash. .25 I.D. x .93 O.D. x .125" Thk.

$4.99

$

In Stock, Qty 6

0

4

MTD 741-0155

Bearing .62 I.D. x 1.38 O.D. x .437" Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 20+

0

5

MTD 713-0327

#35 Chain 3/8 Pitch x 52 Links Endless
(Superseded to 913-0327)

$

$

Not available

6

MTD 713-0139

Master Link
(Superseded to 913-0139)

Note: (Service Only)

$

$

Not available

7

MTD 04956

Input Shaft Assembly

$

$

Not available

8

MTD 750-0471

Spacer

$

$

Not available

9

MTD 713-0331

Sprocket Assembly

Note: (Includes Ref. No. 32)

$

$

Not available

10

MTD 750-0275

Sprocket Hub Tubing 3/8" I.D. x 5/8" O.D. x 1.9" Lg.

$

$

Not available

11

MTD 710-0118

Hex Bolt 5/16-18 x .625" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, only 4 left!

0

12

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 X .Son Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 741-0155

Bearing .625" I.D. x 1.38" O.D. x .437 Thk.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 20+

0

14

MTD 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

15

MTD 710-0629

Hex Bolt 3/8-24 X 2.75" Lg.

$

$

Not available

16

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.25" O.D. x .l00" Thk.

$4.49

$

In Stock, Qty 6

0

17

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x 50" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-0487

Dust Cap
(Superseded to 931-0487)

$11.99

$

In Stock, Qty 5

0

19

$9.99

$

In Stock, Qty 8

0

20

MTD 14985

Tiller Housing L.H.

Variations

MTD 14985-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

MTD 14985-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

21

MTD 721-0170

Gasket
(Superseded to 721P0170)

$15.99

$

In Stock, only 2 left!

0

22

MTD 736-0163

Thrust Wash. 1.00" I.D. x 030" Thk.

$4.49

$

In Stock, Qty 20+

0

23

MTD 750-0570

Step Spacer
(Superseded to 950-0570)

$10.99

$

Usually ships in 3-6 days

0

24

MTD 784-0089

Tine Shaft Assembly

$

$

Not available

25

MTD 713-0328

#50 Chain 5/8" Pitch x 46 Links Endless
(Superseded to 913-0328)

$102.99

$

Usually ships in 3-6 days

0

26

MTD 716-0131

Snap Ring 5/8" Dia. Shaft
(Superseded to 916-0131)

$7.49

$

In Stock, only 1 left!

0

27

MTD 14984

Tiller Housing R.H.

Variations

MTD 14984-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

MTD 14984-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

28

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-0711

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 17

0

31

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 741-0304

Bearing

Note: (For Service Only Must be Press Fit)

$

$

Not available

33

MTD 731-0374

Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 11

0
