2100 (UT-26027) - Green Machine String Trimmer Driveshaft & Handle Parts Diagram

String Trimmer

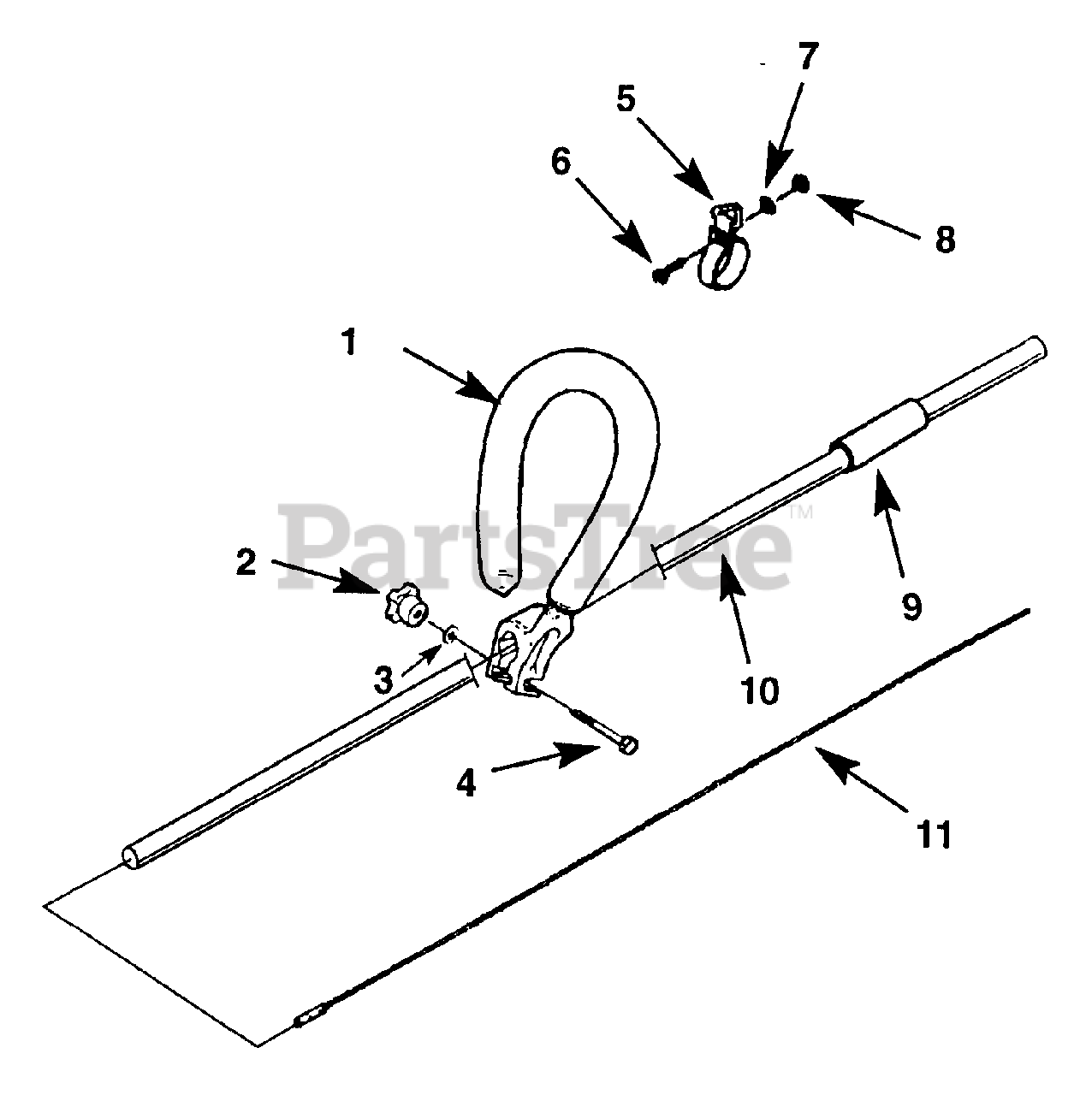

Driveshaft & Handle Parts Diagram

  • Title

1

Homelite GM300302

Handle Assembly

$

$

Not available

2

Homelite 08290

Knob

Note: Torque Specs: 5-30; .5-3.4 Nm

$

$

Not available

3

Homelite 84006

Washer

$

$

Not available

4

Homelite 80295

Screw

Note: Torque Specs: 5-30; .5-3.4 Nm

$2.99

$

Usually ships in 3-7 days

0

5

Homelite GM300245

Hanger Assembly
(Superseded to UP06800)

$

$

Not available

6

Homelite GM010002

Screw

Note: Torque Specs: 25-35; 2.8-4.0 Nm

$1.49

$

Usually ships in 3-7 days

0

7

Homelite GM041101

Washer

$

$

Not available

8

Homelite GM050003

Nut

Note: Torque Specs: 25-35; 2.8-4.0 Nm

$

$

Not available

9

Homelite GM300038

Grip

$

$

Not available

10

Homelite GM280341

Tube Kit

$

$

Not available

11

Homelite GM287801

Flex Cable

$

$

Not available
