2100 (UT-26027) - Green Machine String Trimmer Gearcase Parts Diagram

String Trimmer

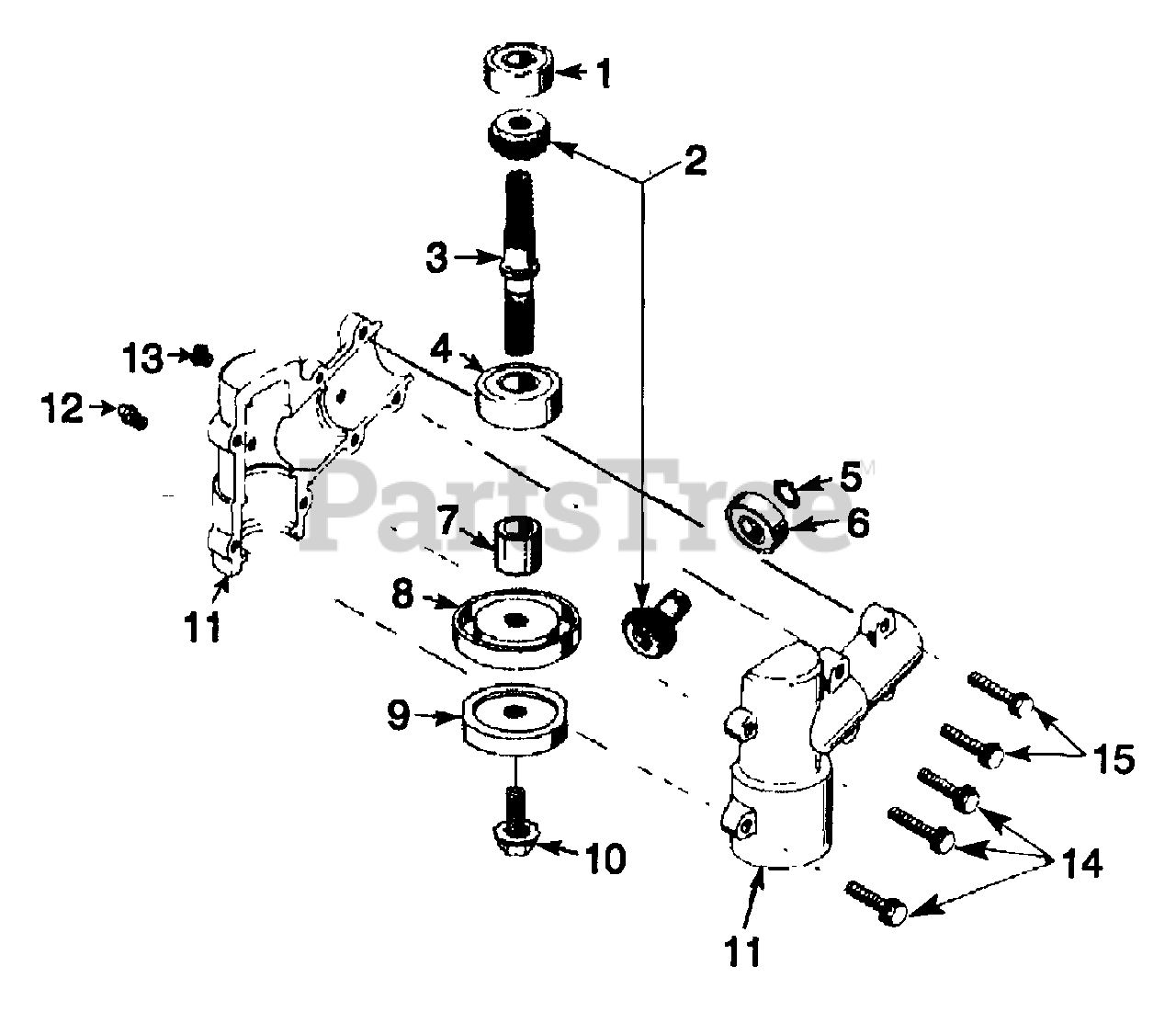

Gearcase Parts Diagram

  • Title

Homelite GM270303

Gearcase Assembly
(Superseded to UP05308)

$111.99

$

Usually ships in 3-7 days

0

1

Homelite 09147

Bearing
(Superseded to UP05816)

$

$

Not available

2

Homelite GM190609

Gear Set

$46.99

$

Usually ships in 3-7 days

0

3

Homelite GM226706

Shaft, Gear

$

$

Not available

4

Homelite 09141

Bearing

$

$

Not available

5

Homelite 09151

Ring

$

$

Not available

6

Homelite 09134

Bearing
(Superseded to UP06386)

$

$

Not available

7

Homelite GM226705

Collar

$

$

Currently unavailable

8

Homelite GM300070

Upper Flange Washer

$

$

Not available

9

Homelite GM300075

Lower Flange Washer
(Superseded to UP06798)

$5.99

$

Usually ships in 3-7 days

0

10

Homelite 09140

Sems Screw, Blade
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

11

Homelite GM270306

Housing Set

$

$

Currently unavailable

12

Homelite GM286716

Fitting, Zerk

$

$

Not available

13

Homelite 82459

Screw, Self Tapping

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

14

Homelite 825491

Screw, Self Tapping
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

15

Homelite 825491

Screw, Self Tapping
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available
